Advantech EKI-2720G-4FI-AE 16+4G Port Full Gigabit Unmanaged Ethernet Switch, 12 48VDC

PB Tech price

AUD $ 882 .58

$ 882 .58

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-2720G-4FI-AE 16+4G Port Full Gigabit Unmanaged Ethernet Switch, 12 48VDC

Brand: Advantech
MPN: EKI-2720G-4FI-AE
Part #: IPCAVH220509
UPC:

PB Tech price

AUD $ 882 .58

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

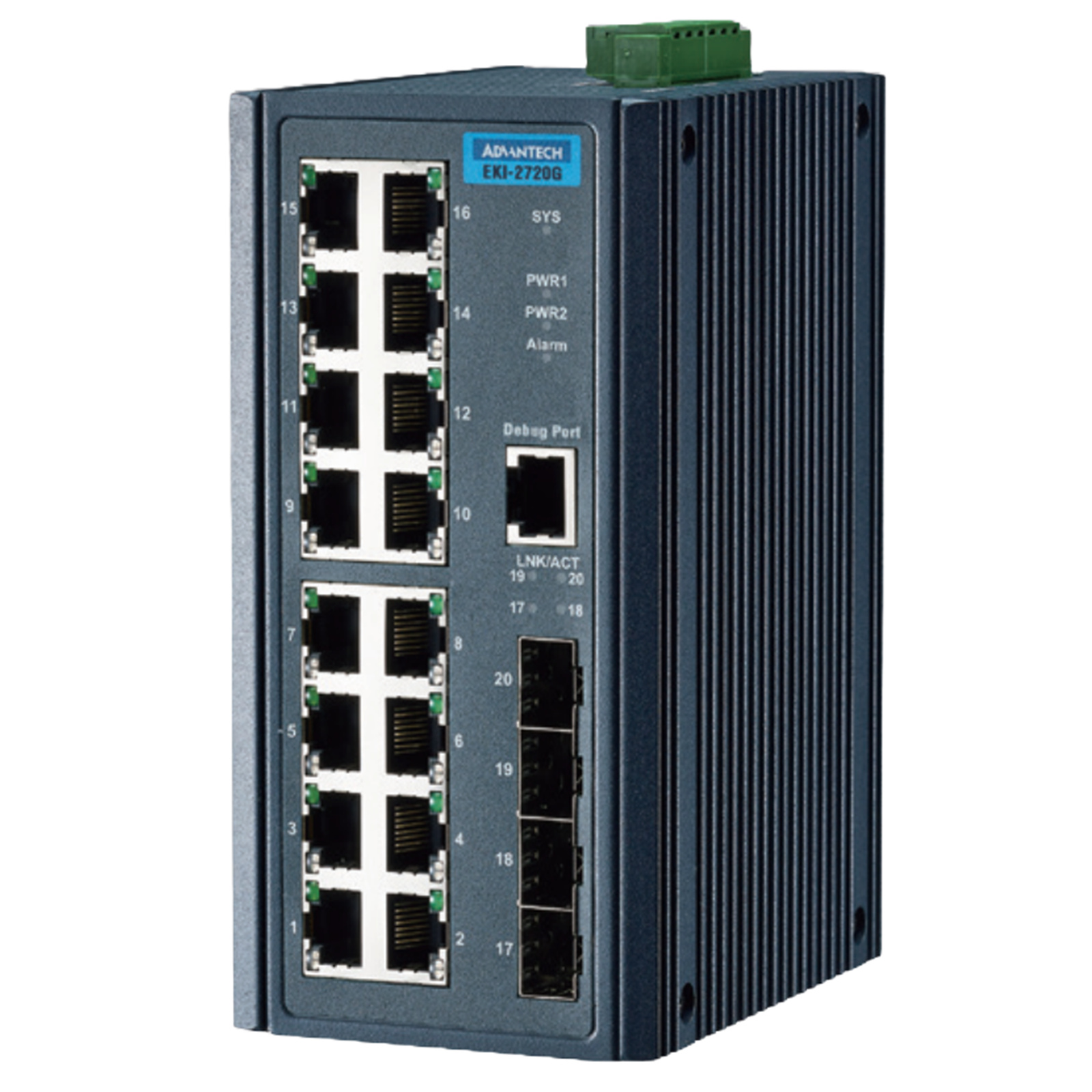

Click or hover over image to enlarge

Brand: Advantech
MPN: EKI-2720G-4FI-AE
Part #: IPCAVH220509
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The EKI-2720G-4FI provide users with abundant port options to connect to a range of different device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. The EKI-2720 series features a wide operating temperature and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

- 16 x Gigabit Ethernet ports + 4 x SFP ports
- SFP socket for easy and flexible fiber expansion
- NEMA TS2 for traffic control
- EN50121-4 approval for railway trackside deployment
- Wide operating temperature range of -40 ~ 75°C (EKI-2720G-4FI)
- Dual 12 ~ 48 VDC power input and 1 x relay output

Specifications

MPN

EKI-2720G-4FI-AE 16GE + 4SFP Port Unmanaged Ethernet Switch w/Wide Temp

Interface

I/O Port

16 x 10/100/1000BASE-T/TX RJ-45
4 x SFP (mini-GBIC) port

Debug Port

RS-232 (RJ45)

Power Connector

6-pin screw Terminal Block (including relay)

Physical

Enclosure

Metal Shell

Protection Class

IP 30

Installation

DIN-Rail

Dimensions (W x H x D)

74 x 152 x 105 mm (2.91" x 5.98" x 4.13")

LED Display

System LED

PWR1, PWR2, SYS, Alarm

Port LED

Link / Speed / Activity

Environment

Operating Temperature

-40 ~ 75°C (-40 ~ 167°F) (2720G-4FI)

Storage Temperature

-40 ~ 85°C

Ambient Relative Humidity

10 ~ 95% (non-condensing)

Humidity

10 ~ 95% (non-condensing)

Power

Power Consumption

15W

Power Input

12 ~ 48 VDC, redundant dual power input

Fault Output

1 Relay Output

Certification

EMI

CE, FCC Class A

Safety

UL61010-2-201
IEC60950*
*= Compliant

EMC

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Traffic control

NEMA TS2

Manufacturer Part No:

EKI-2720G-4FI-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220509

Product Model:

EKI-2720G-4FI-AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
