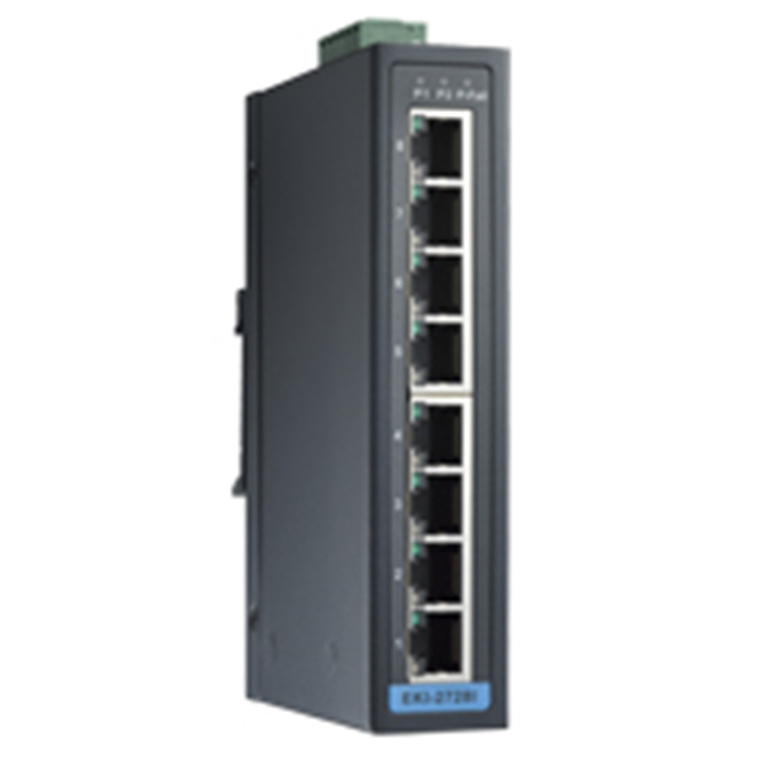

Advantech EKI-2728I-D 8-port Ind. Unmanaged GbE Switch W/T
- Brand: Advantech
- MPN: EKI-2728I-D
- Part #: IPCAVH220514

Product URL: https://www.pbtech.com/product/IPCAVH220514/Advantech-EKI-2728I-D-8-port-Ind-Unmanaged-GbE-Swi
Features
Provides 8 Gigabit Ethernet ports with Auto MDI/MDI-X
Supports 10/100/1000Mbps Auto Negotiation
Supports jumbo frame transmission up to 9kbytes
Provides Slim size, DIN-rail with IP30 metal mechanism
Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay
Supports a wide temperature range: -40 ~ 75°C
Specifications
MPN
EKI-2728I-D
Certification
EMI
CE, FCC Class A
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety
UL 62368
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Temperature (Max. Operating)
75°C (167°F)
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature
-45 ~ 85°C (-40 ~ 185°F)
Ethernet Communication
RJ-45 Port Number
8
RJ-45 Port Connector Type
RJ-45
RJ-45 Transmission Distance
100 m
RJ-45 Transmission Speed
10/100/1000 Mbps
Mechanism
Mounting (DIN-rail)
Yes
Mounting (Wall)
Yes
IP Rating
IP30
PoE Information
Support PoE
No
Power
Power Consumption
Max. 3.9W
Power Input (DC)
12 ~ 48 VDC
Redundant Dual Inputs
Yes
Protection
Overload Current
Present
Reverse Polarity
Present
