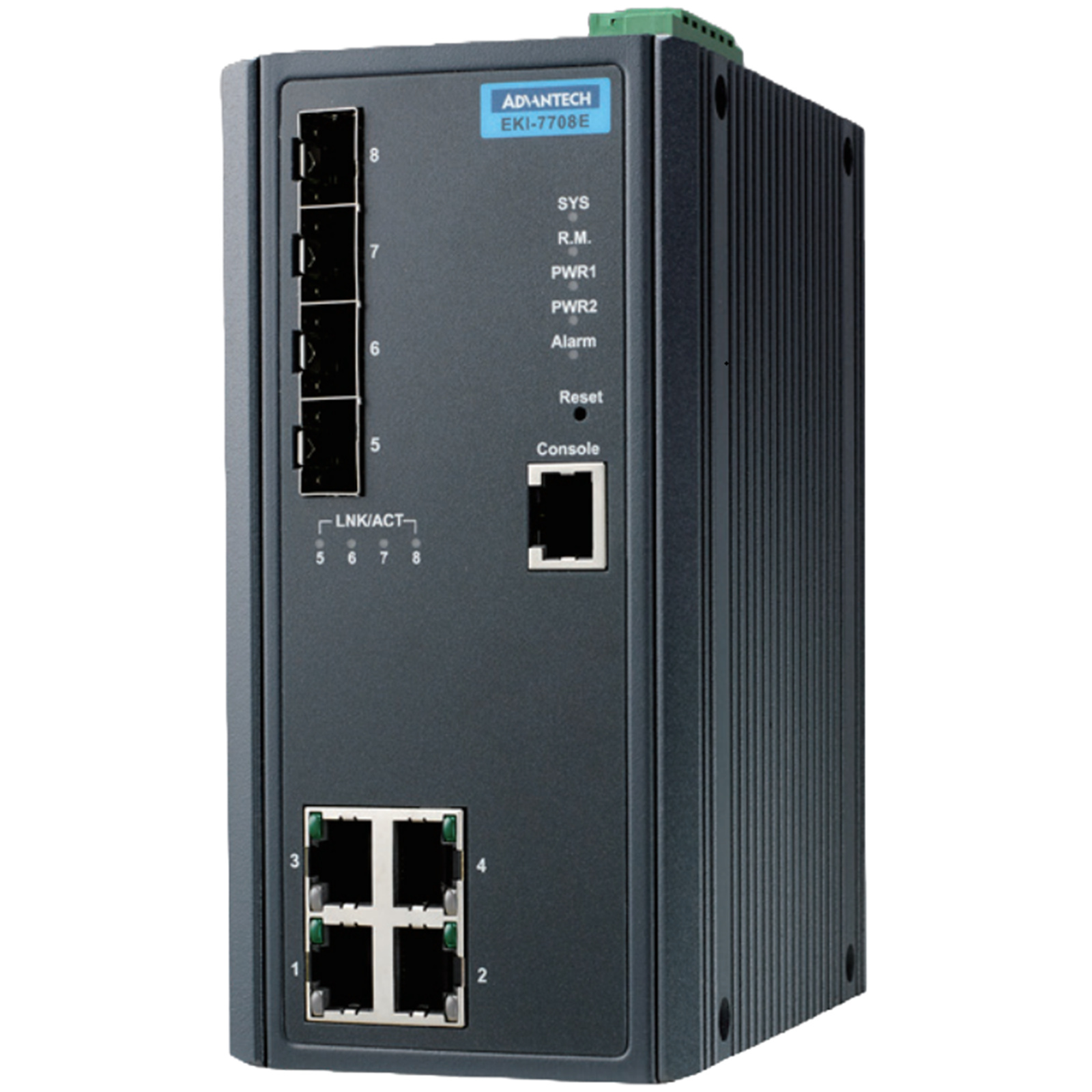

Advantech EKI-7708E-4FI-AE 4+4G port Gigabit Managed Ethernet Switch, -40 75

PB Tech price

AUD $ 850 .18

$ 850 .18

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-7708E-4FI-AE 4+4G port Gigabit Managed Ethernet Switch, -40 75

Brand: Advantech
MPN: EKI-7708E-4FI-AE
Part #: IPCAVH220583
UPC:

PB Tech price

AUD $ 850 .18

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: EKI-7708E-4FI-AE
Part #: IPCAVH220583
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The EKI-7708E-4FI provides users with abundant port options for connecting to various device types, with 4 fast Ethernet ports and 4 SFP (mini-GBIC) ports. This switch is embedded with Advantech's IXM function, which can benefit users with fast deployment while offering considerable savings on engineering time and costs.

The EKI-7708E series (The EKI-7708E-4F and EKI-7708E-4FI) support NMS to help IT managers with networking maintenance and failure prevention. Additionally, these switches are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability. The EKI-7708E-4FI features a wide operating temperature range of -40 ~ 75°C and a NEMA TS2 rating, making it ideal for use in traffic applications. Both switches in this series meet the EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.

- 4 x Fast Ethernet ports + 4 x SFP ports
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 12 ~ 48 VDC power input and 1 x relay output

For more information: https://advdownload.advantech.com/productfile/PIS/EKI-7708E-4F/Product%20-%20Datasheet/EKI-7708E-4F_4FI_DS(062221)20210709144306.pdf

Specifications

Interfaces / Communications

I/O Port

4 x 10/100BASE-T/TX RJ-45
4 x SFP (mini-GBIC) port
Auto-Negotiation, Full/Half Duplex Mode
Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)/FX
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for Flow Control

Console port

RS-232 (RJ45)

Power Connector

6-pin screw Terminal Block (including relay)

Physical

Enclosure

Metal Shell

Protection Class

IP 30

Installation

DIN-Rail, Wall-mount

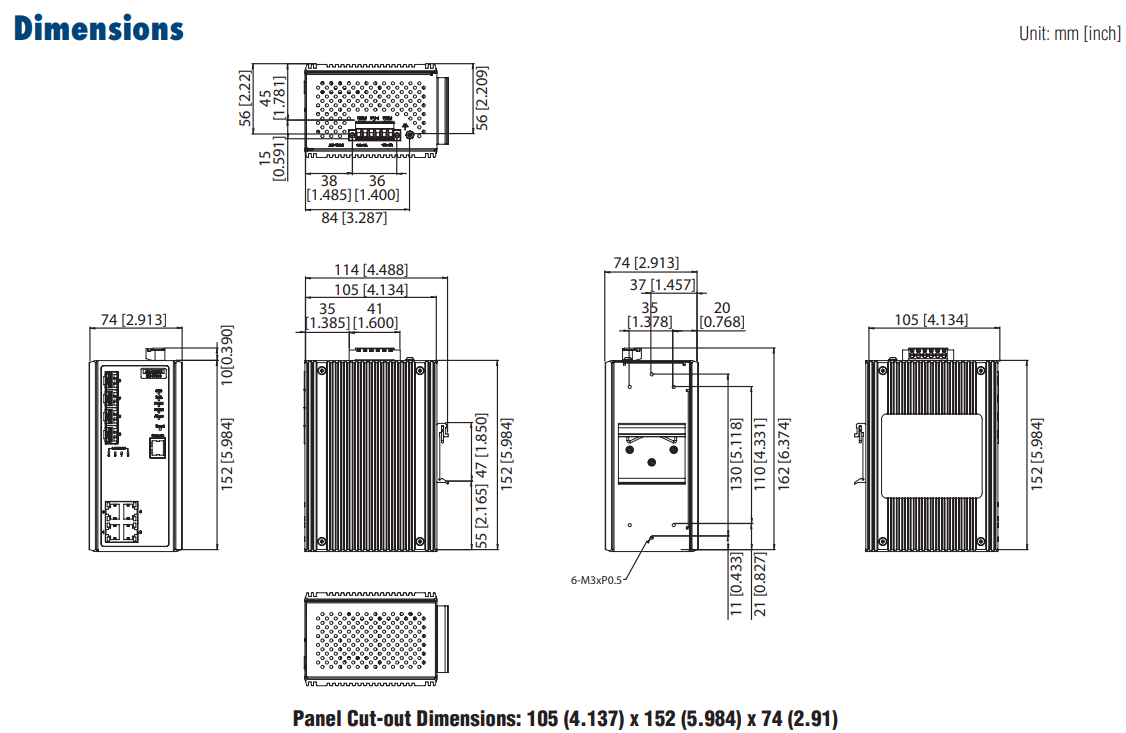

Dimensions (W x H x D)

74 x 152 x 105 mm (2.91" x 5.98" x 4.13")

LED Indicators

System LED

PWR1, PWR2, SYS, Alarm and R.M.

Port LED

Link / Speed / Activity

Environment

Operating Temperature

-40 ~ 75°C (-40 ~ 167°F) (EKI-7708E-4FI)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Ambient Relative Humidity

5 ~ 95% (non-condensing)

Overload Current Protection

Present

Reverse Polarity Protection

Present

MTBF

2,570,552 hours

Power

Power Consumption

12.1W @ 48VDC (System)

Power Input

12 ~ 48 VDC, redundant dual power input

Fault Output

1 Relay Output

Certification

Safety

UL 61010-2-201, EN LVD 62368

EMI

CE, CISPR 32, FCC Part 15B Class A

EMS

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EMC EN 61000-6-2
EN 61000-6-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Traffic control

NEMA TS-2

Railway Trackside

EN 50121-4

Switch Properties

Switch Capacity

8.8Gbps

Transmission Rate

6.55Mpps

MAC Table Size

Jumbo Frame

1,0240 Bytes

Packet Buffer Size

4.1Mb

Max. IGMP Group

256

Max. VLAN Group

256 (VLAN ID 1 ~ 4094)

Manufacturer Part No:

EKI-7708E-4FI-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220583

Product Model:

EKI-7708E-4FI-AE

Warranty: 12 months *
