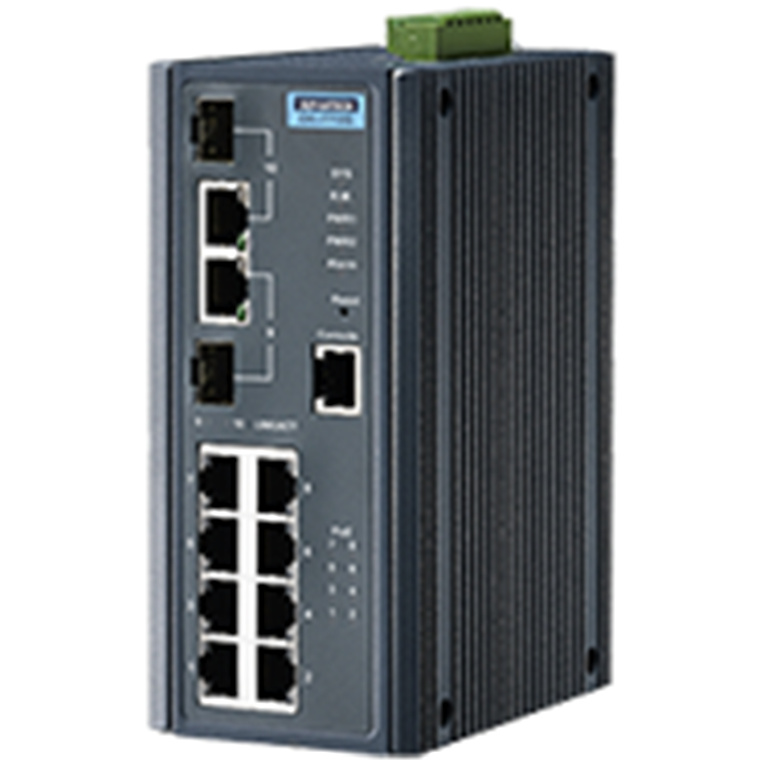

Advantech EKI-7710G-2CPI-AE 10 port Full Gigabit Ethernet Ethernet Switch with 8 PoE+ port,-40 75
Out of stock
Advantech EKI-7710G-2CPI-AE 10 port Full Gigabit Ethernet Ethernet Switch with 8 PoE+ port,-40 75
- Brand: Advantech
- MPN: EKI-7710G-2CPI-AE
- Part #: IPCAVH220599
- UPC:
- Brand: Advantech
- MPN: EKI-7710G-2CPI-AE
- Part #: IPCAVH220599
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech EKI-7710G-2CPI-AE 10 port Full Gigabit Ethernet Ethernet Switch with 8 PoE+ port,-40 75
- Brand: Advantech
- MPN: EKI-7710G-2CPI-AE
- Part #: IPCAVH220599

Product URL: https://www.pbtech.com/product/IPCAVH220599/Advantech-EKI-7710G-2CPI-AE-10-port-Full-Gigabit-E
Features
The EKI-7710G-2CPI supports 8 Gigabit PoE ports and 2 Gigabit combo ports. It provides up to 30W per port for high-power-consumption powered devices. It comes embedded with Advantech IXM function, which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs.
The EKI-7710G series (EKI-7710G-2CP and EKI-7710G-2CPI) also support NMS to help IT managers with networking maintenance and failure prevention. Additionally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
- 8 x Gigabit Ethernet ports + 2 x Gigabit Copper/SFP combo ports
- Support 8 x IEEE 802.3at/af PoE ports for PD demands
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 24 ~ 48 VDC power input and 1 x relay output
For more information: https://advdownload.advantech.com/productfile/PIS/EKI-7710G-2CPI/Product%20-%20Datasheet/EKI-7710G-2CP_2CPI_DS(062221)20210709144311.pdf
Specifications
Interfaces / Communications
I/O Port
8 x 10/100/1000BASE-T/TX RJ-45
2 x 10/100/1000BASE-T/TX or SFP
(mini-GBIC) Combo ports
Auto-Negotiation, Full/Half Duplex Mode
Auto
MDI/MDI-X Connection
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)/FX
IEEE 802.3ab 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for Flow Control
PoE Port
1 ~ Port 8: IEEE 802.3at/af
Console Port
RS-232 (RJ45)
Power Connector
6-pin screw Terminal Block (including relay)
Physical
Enclosure
Metal Shell
Protection Class
IP 30
Installation
DIN-Rail, Wall-mount

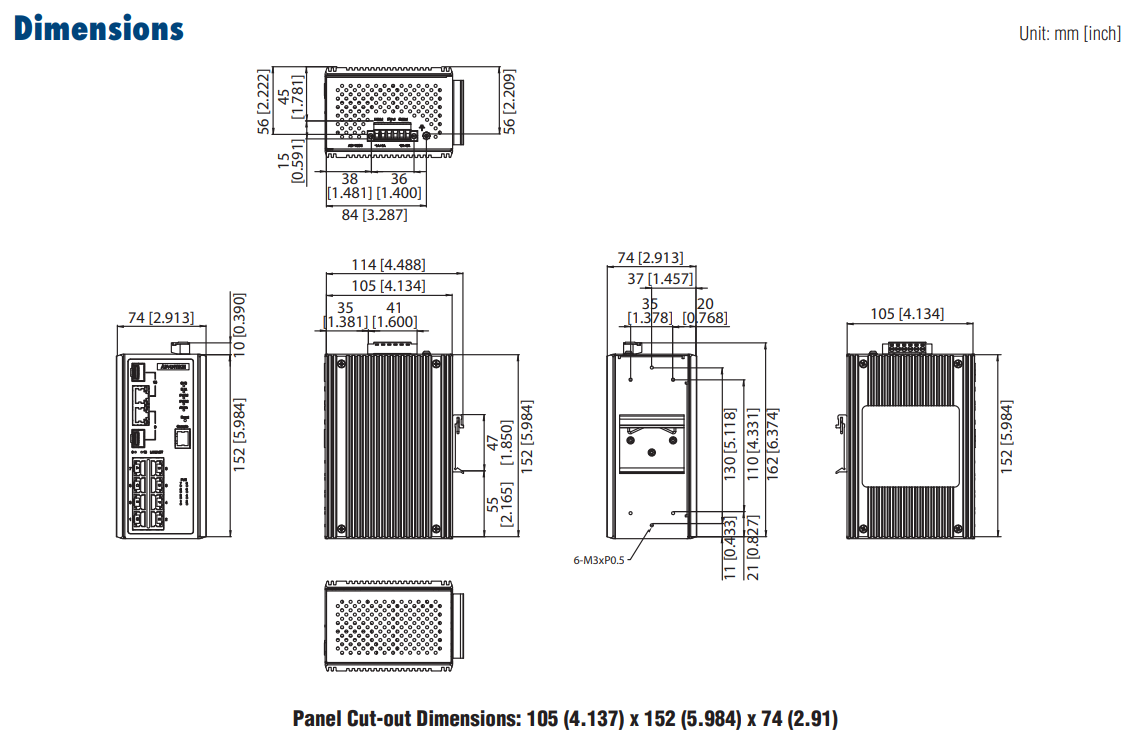

Dimensions (W x H x D)
74 x 152 x 105 mm (2.91" x 5.98" x 4.13")
LED Indicators
System LED
PWR1, PWR2, SYS, Alarm and R.M.
Port LED
Link / Speed / Activity / PoE
Environment
Operating Temperature
-40 ~ 75°C (-40 ~ 167°F) (EKI-7710G-2CPI)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative Humidity
5 ~ 95% (non-condensing)
Overload Current Protection
Present
Reverse Polarity Protection
Present
MTBF
846,513 hours
Power
Power Consumption
12.1W @ 48VDC (System)
Power Input
24 ~ 48 VDC, redundant dual power input
Power Budget
120W
Fault Output
1 Relay Output
Certification
Safety
UL 508
EMI
CE, CISPR 32, FCC Part 15B Class A
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EMC EN 61000-6-2
EN 61000-6-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
Traffic control
NEMA TS-2
Railway Trackside
EN 50121-4
Switch Properties
Switch Capacity
20Gbps
Transmission Rate
14.8Mpps
MAC Table Size
8K
Jumbo Frame
1,0240 Bytes
Packet Buffer Size
4.1Mb
Max. IGMP Group
256
Max. VLAN Group
256 (VLAN ID 1 ~ 4094)
