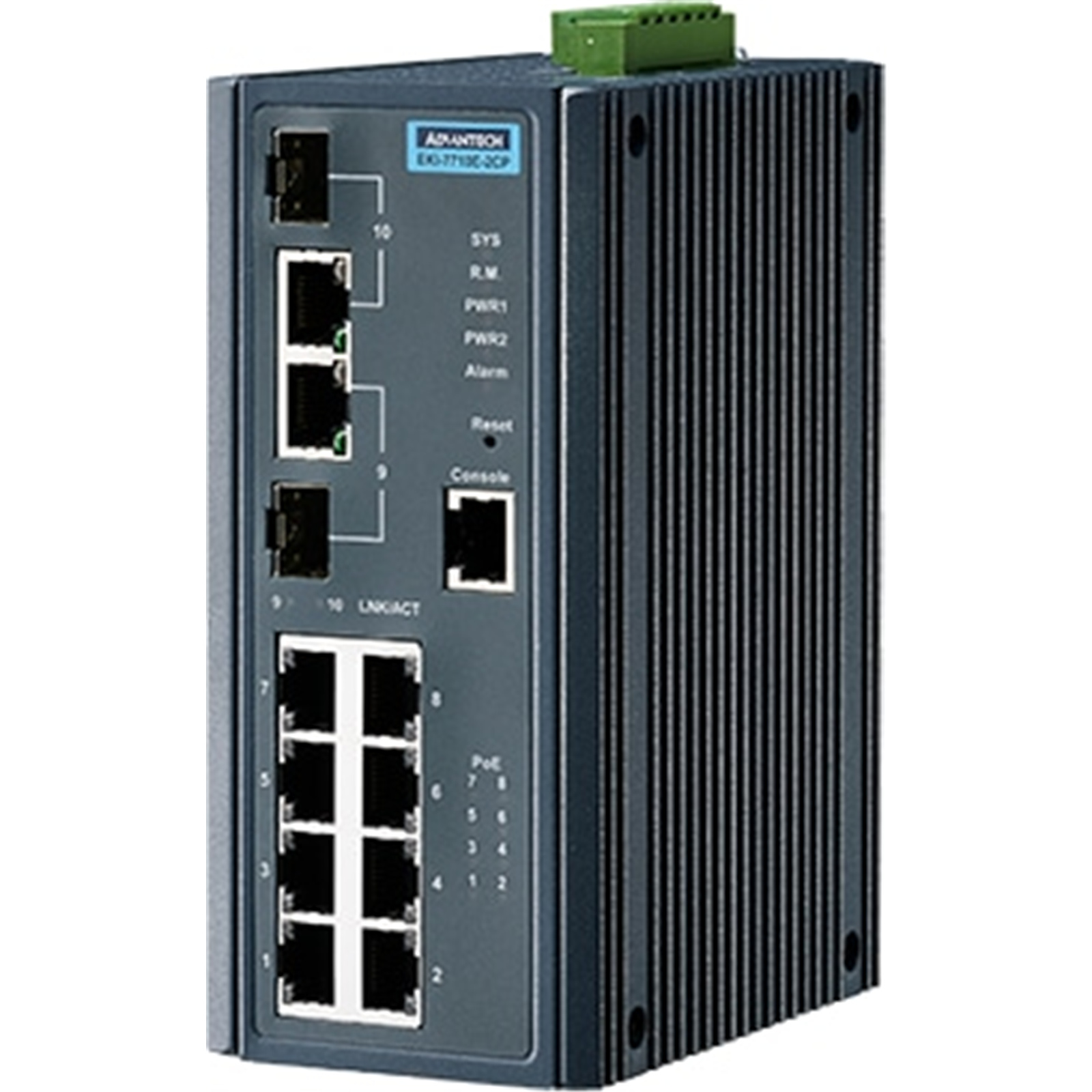

Advantech EKI-7710G-2CPI-BE 8G + 2G Combo Managed POE+ switch w/Wide temp
- Brand: Advantech
- MPN: EKI-7710G-2CPI-BE
- Part #: IPCAVH220601

Product URL: https://www.pbtech.com/product/IPCAVH220601/Advantech-EKI-7710G-2CPI-BE-8G--2G-Combo-Managed-P
Features
8GE PoE and 2G Combo Managed Ethernet Switch, IEEE802.3af/at, 24~48VDC, -40~75?
- 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit Copper/SFP combo ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- -40 ~ 75°C wide-range operating temperature
- Dual 24~48 V DC power input and 1 relay output
Specifications
Interface
Port Number
10
Ethernet Communication
RJ-45 Port Connector Type
8 x RJ-45 + 2 x RJ-45/SFP combo ports
RJ-45 Transmission Speed
10/100/1000 Mbps
RJ-45 Transmission Distance
100 m
Fiber Transmission Distance
Up to 110 km
Power
Power Input (DC)
24 ~ 48 VDC
Power Operating Current
0.25A @ 48VDC (system)
Power Consumption
12.1W (system)
Power Connector Type
6-pin removable screw terminal (power & relay)
Certification
Ethernet Standard
IEEE 802.1p, 802.3ad, 802.1x, 802.1D, 802.1s, 802.1w, 802.3af/at
EMI
CE, FCC Class A
Safety
UL 508
EMC
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
PoE Information
PoE Port Number
8
Switch Properties
MAC Table Size
8K
Packet Buffer Size
4.1M bit
Switch Fabric Speed
20Gbps
Jumbo Frame
9,216 bytes
Mechanism
Dimensions (W x H x D)
74 x 152 x 105 mm (2.91 x 5.98 x 4.13)
IP Rating
IP30
Enclosure (Metal)
Metal
Weight
1.2 kg
Mounting
DIN-rail, Wall
MTBF
Time
858,835 hours
Method
Telcordia(Relax), GB
