Advantech EKI-7712G-4FP-AE 12 port Gigabit Ethernet Switch with 8 PoE+ port, 46 57VDC

PB Tech price

AUD $ 1,900 .37

$ 1,900 .37

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-7712G-4FP-AE 12 port Gigabit Ethernet Switch with 8 PoE+ port, 46 57VDC

Brand: Advantech
MPN: EKI-7712G-4FP-AE
Part #: IPCAVH220613
UPC:

PB Tech price

AUD $ 1,900 .37

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

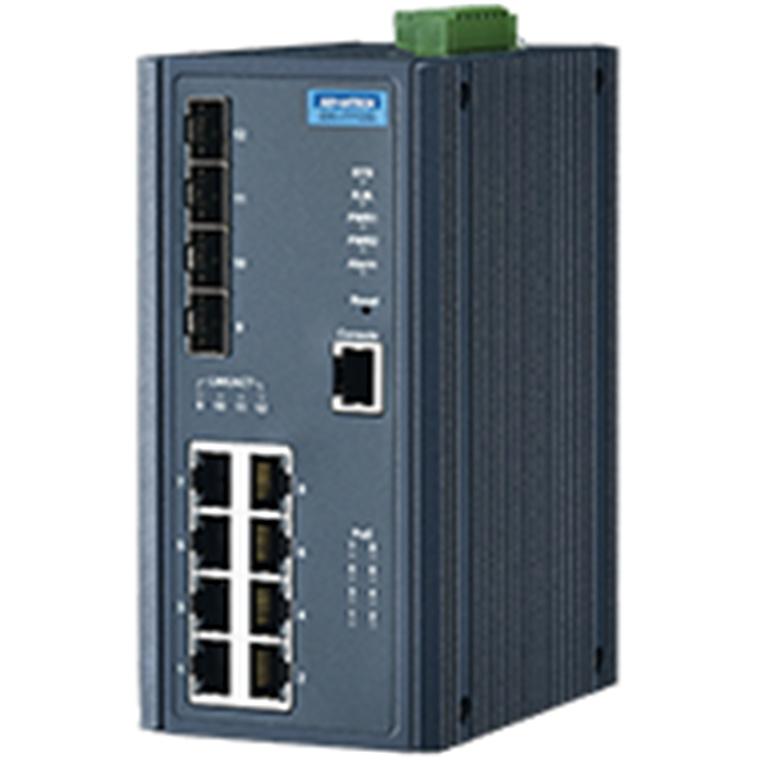

Click or hover over image to enlarge

Brand: Advantech
MPN: EKI-7712G-4FP-AE
Part #: IPCAVH220613
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The EKI-7712G-4FP supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. Provides up to 30 W per port for high-power-consumption powered devices. It is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs.

The EKI-7712G series (EKI-7712G-4FP and EKI-7712G-4FPI) support NMS to help IT managers with networking maintenance and failure prevention. Additionally, the series are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms to ensure network stability. Finally, the EKI-7712G-4FP/4FPI have successfully passed the EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.

- 8 x Gigabit Ethernet ports + 4 x SFP ports
- Support 8 x IEEE 802.3at/af PoE ports for PD demands
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 48 VDC power input and 1 x relay output

For more information: https://advdownload.advantech.com/productfile/PIS/EKI-7712G-4FPI/Product%20-%20Datasheet/EKI-7712G-4FP_4FPI_DS(062221)20210709144313.pdf

Specifications

Interfaces / Communications

I/O Port

8 x 10/100/1000BASE-T/TX RJ-45
4 x SFP (mini-GBIC) port
Auto-Negotiation, Full/Half Duplex Mode
Auto MDI/MDI-X Connection

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)/FX
IEEE 802.3ab 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3x for Flow Control

PoE Port

1 ~ Port 8: IEEE 802.3at/af

Console Port

RS-232 (RJ45)

Power Connector

6-pin screw Terminal Block (including relay)

Physical

Enclosure

Metal Shell

Protection Class

IP 30

Installation

DIN-Rail, Wall-mount

Dimensions (W x H x D)

74 x 152 x 105 mm (2.91" x 5.98" x 4.13")

LED Indicators

System LED

PWR1, PWR2, SYS, Alarm and R.M.

Port LED

Link / Speed / Activity / PoE

Environment

Operating Temperature

-10 ~ 60°C (-40 ~ 140°F) (EKI-7712G-4FP)

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Ambient Relative Humidity

5 ~ 95% (non-condensing)

Overload Current Protection

Present

Reverse Polarity Protection

Present

MTBF

1,001,782 hours

Power

Power Consumption

12.1W @ 48VDC (System)

Power Input

48 VDC (46 to 57 VDC)
53 -57 VDC is recommended for 802.3at redundant dual power input

Power Budget

240W

Fault Output

1 Relay Output

Certification

Safety

UL 61010-2-201

EMI

CE, CISPR 32, FCC Part 15B Class A

EMS

IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8

EMC

EN 61000-6-2
EN 61000-6-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Traffic control

NEMA TS-2

Railway Trackside

EN 50121-4

Switch Properties

Switch Capacity

24Gbps

Transmission Rate

17.8Mpps

MAC Table Size

Jumbo Frame

1,0240 Bytes

Packet Buffer Size

4.1Mb

Max. IGMP Group

256

Max. VLAN Group

256 (VLAN ID 1 ~ 4094)

Manufacturer Part No:

EKI-7712G-4FP-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220613

Product Model:

EKI-7712G-4FP-AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
