Advantech FPM-212-R9AE 12" XGA Industrial Monitors with Resistive Touch Control, Direct HDMI, DP, and VGA Ports, 24 VDC in

Normally $1,235.30

You save $50

AUD $ 1,184 .89

$ 1,184 .89

Advantech FPM-212-R9AE 12" XGA Industrial Monitors with Resistive Touch Control, Direct HDMI, DP, and VGA Ports, 24 VDC in

Brand: Advantech
MPN: FPM-212-R9AE
Part #: IPCAVH220702
UPC:

Normally $1,235.30

You save $50

PB Tech price

AUD $ 1,184 .89

In stock at Supplier

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: FPM-212-R9AE
Part #: IPCAVH220702
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

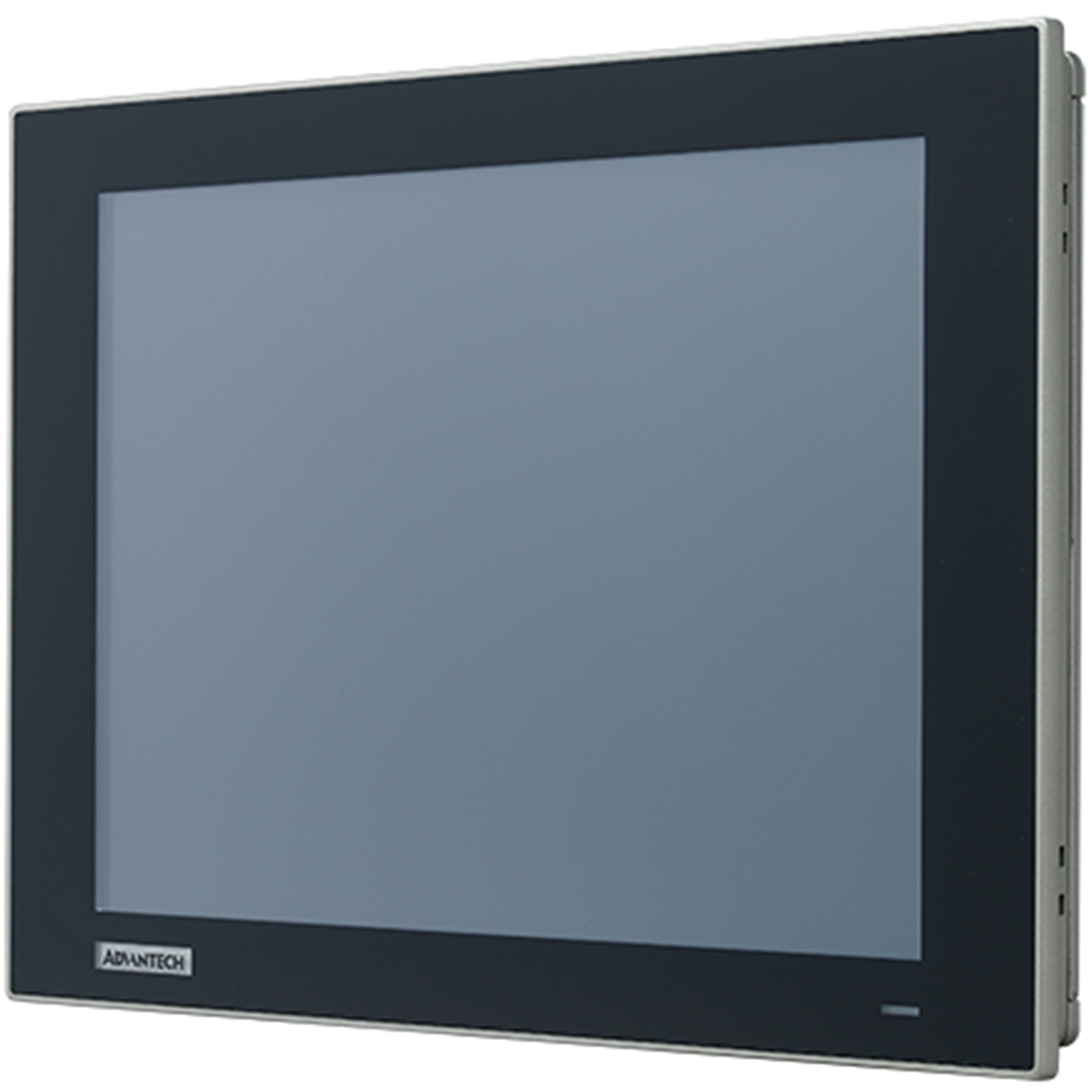

Advantech FPM-212-R9AE 12" XGA Industrial Monitors with Resistive Touch Control

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.

- 12" XGA with 50,000 backlight lifetime
- Direct HDMI, DP and VGA input interfaces
- Anti-glare screen with tempered glass
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel

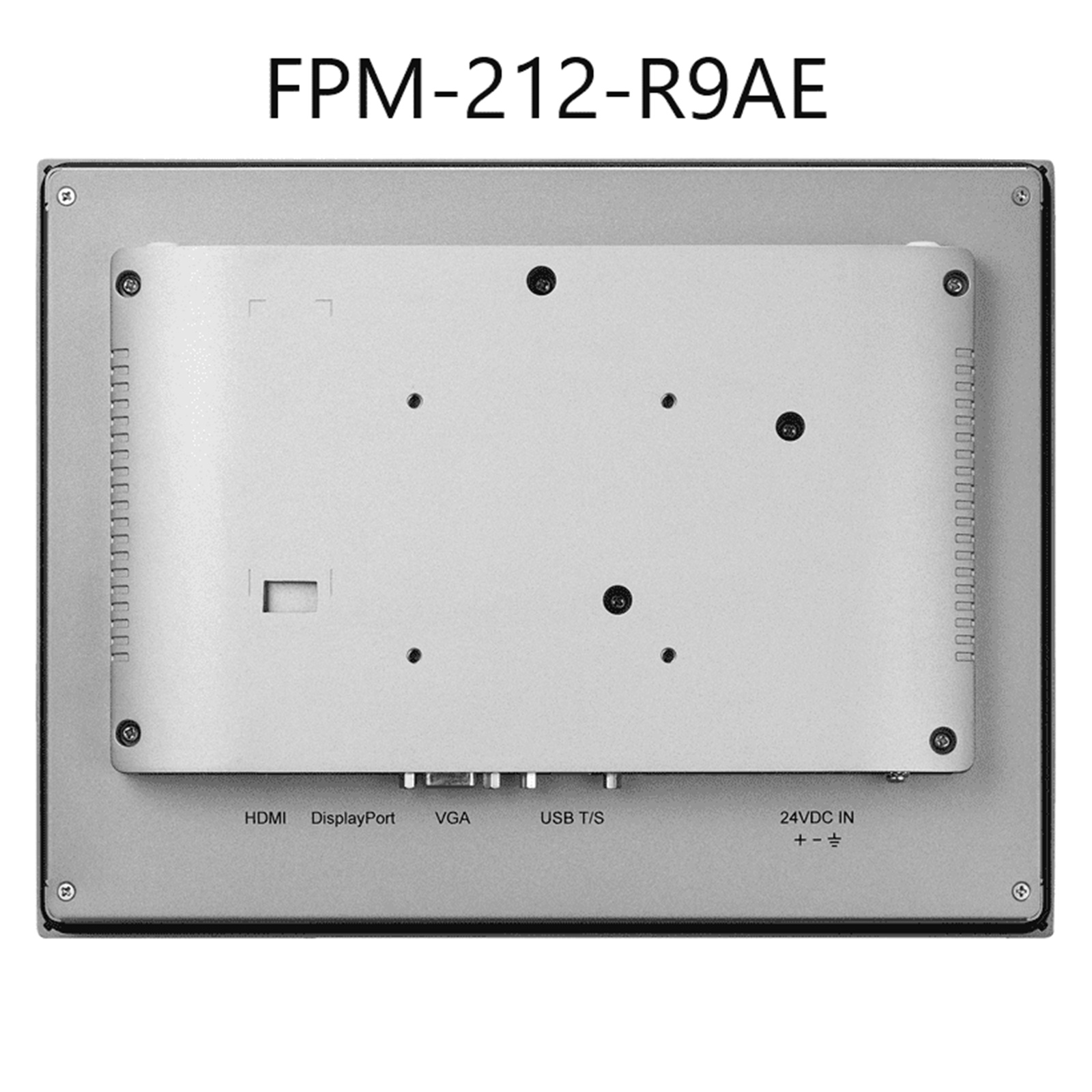

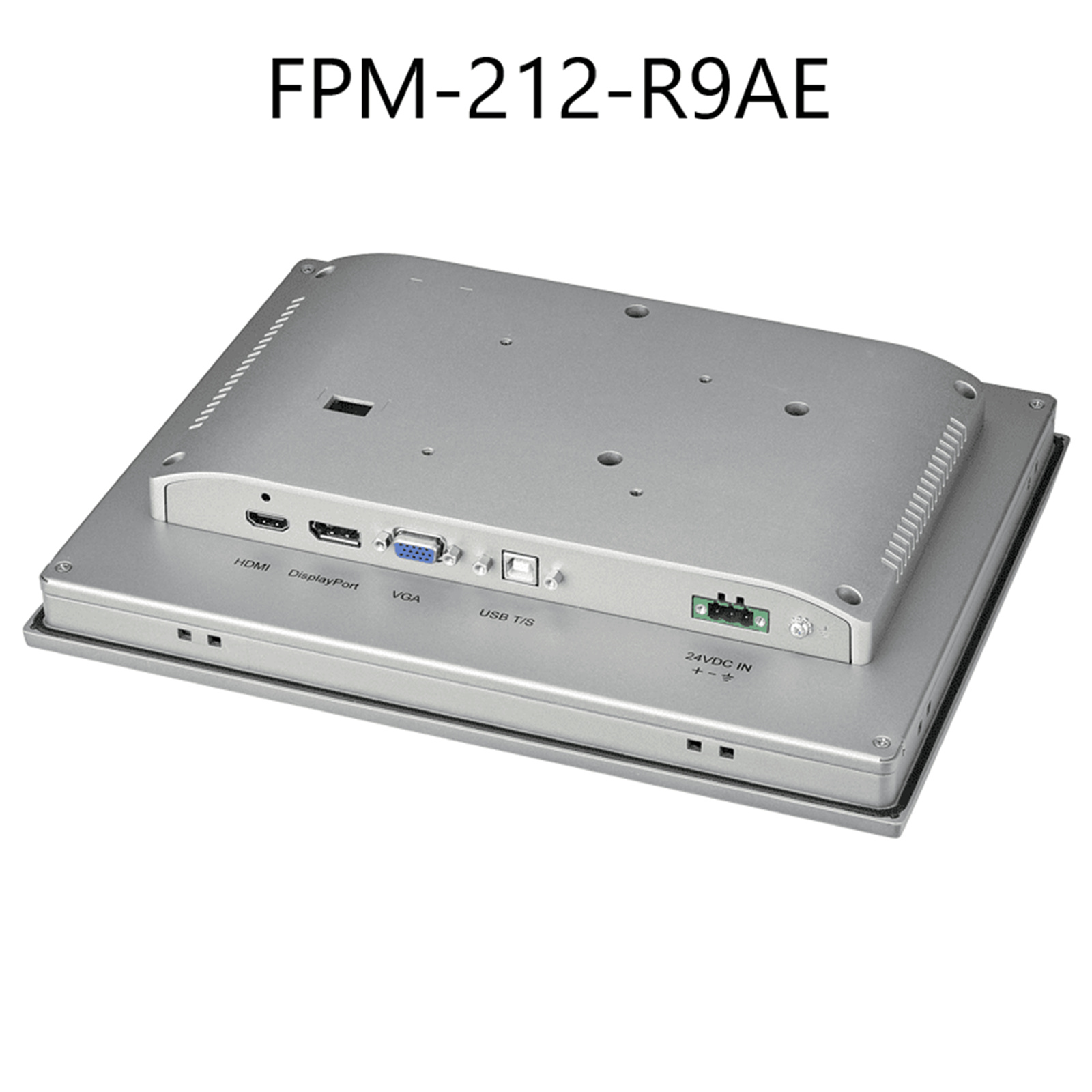

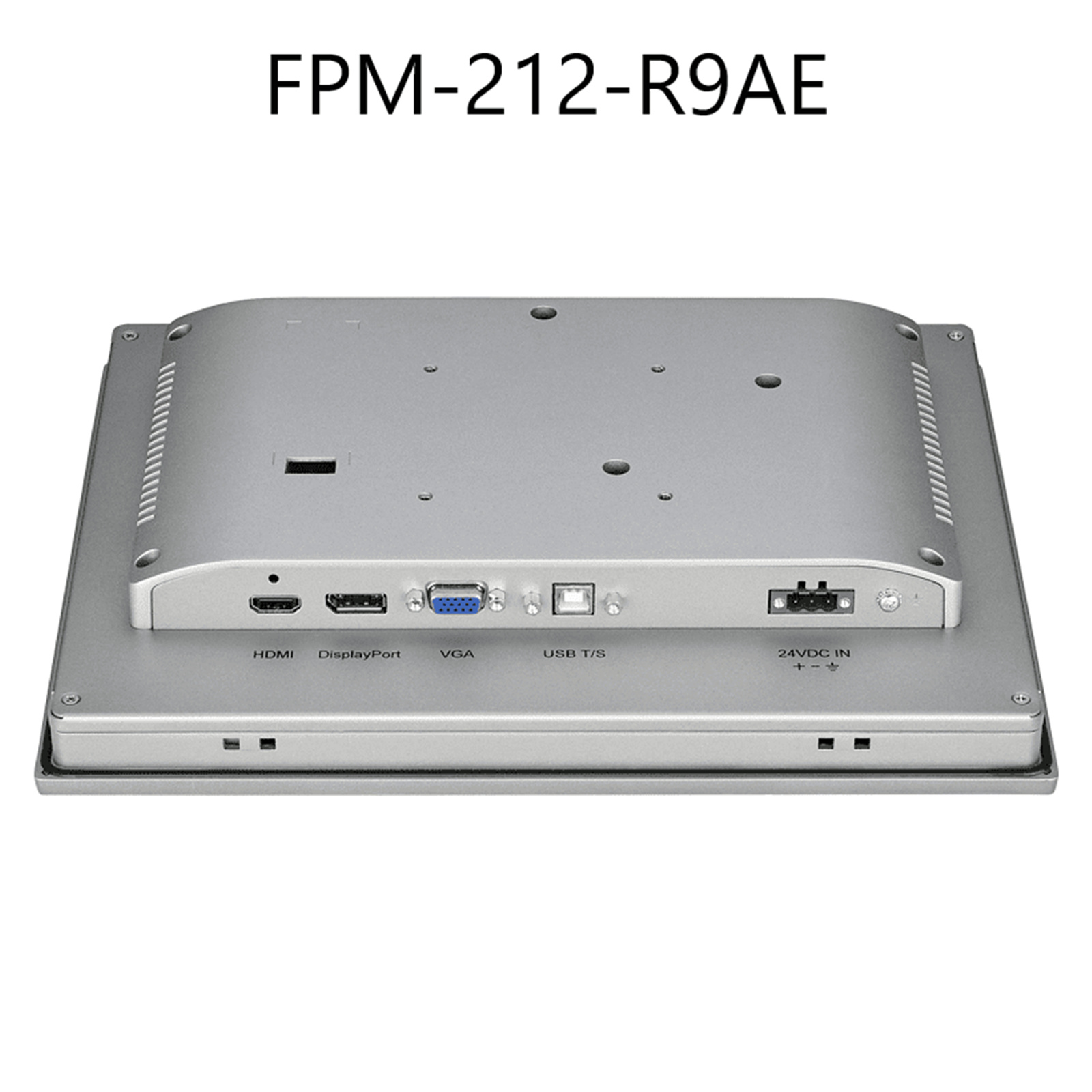

- Lockable I/O connectors
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm

For more information: https://advdownload.advantech.com/productfile/PIS/FPM-212/file/FPM-212_215_217_219(010423)20230106151627.pdf

Specifications

General

Certification

BSMI, CCC, CE, FCC Class A, UL

Dimensions (W x H x D)

FPM-212: 311.8 x 238.0 x 53 mm (12.27 x 9.37 x 2.08 in)

Enclosure

Front panel: Die cast magnesium alloy
Rear cover: Die-casting aluminum

Mount Options

Stand, Wall, Panel and VESA arm (75 x 75mm)

Power Input

FPM-2XX-R9AE: Terminal Block: 24 VDC input

Video Port

HDMI, DP, and VGA

Weight (Net)

3.2 kg

Power Consumption

FPM-212-R9AE

16.65(idle), 17.51(Max)

LCD Display

Display Type

XGA

Display Size

12"

Max. Resolution

1024 x 768

Max. Color

16.2M

Viewing Angle (H/V °)

178/178

Luminance (cd/m²)

600

Backlight Life

50,000 hr

Contrast Ratio

1000:1

Touchscreen

Type

5-wire analog resistive

Interface

USB

Light Transmission

Above 75%

OS Support

Windows XP, Vista,7, 8,10,XPe and Linux

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Humidity (Storage)

10 ~ 90% non-condensing

IP Rating

IP-66 graded front panel

Vibration

5 ~ 500 Hz, 1 Grms (Operating, Random)

Manufacturer Part No:

FPM-212-R9AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220702

Product Model:

FPM-212-R9AE

Warranty: 12 months *
