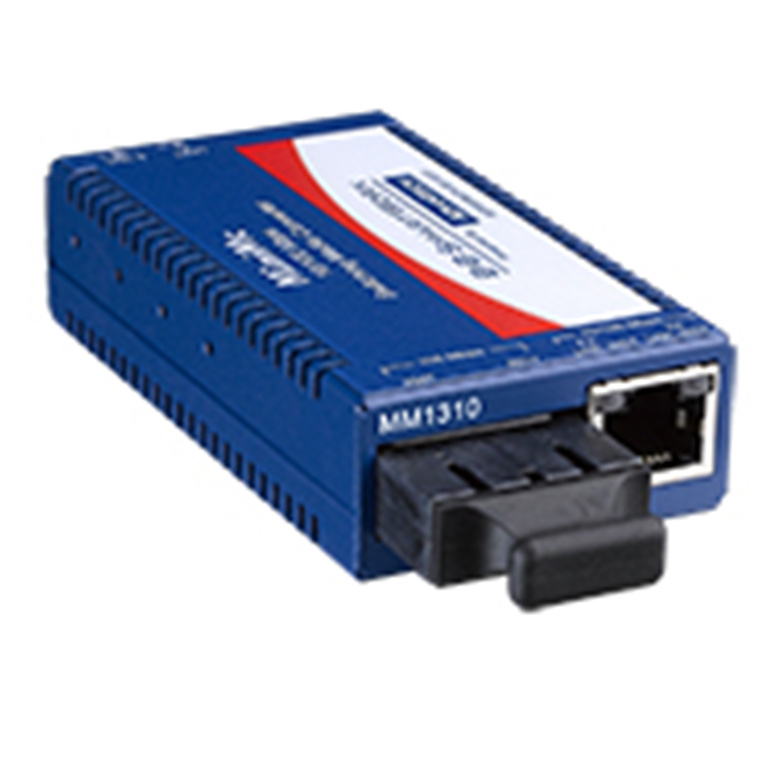

Advantech IMC-350-SEST-PS-A Mini Media Converter, 100Mbps, Single mode 1310nm, LFPT, 40km, ST, AC adapter

Normally $307.67
Normally $307.67
You save $9
You save $9
AUD $ 298 .22
$ 298 .22
$298.22  +GST
$298.22

Advantech IMC-350-SEST-PS-A Mini Media Converter, 100Mbps, Single mode 1310nm, LFPT, 40km, ST, AC adapter

  • Brand: Advantech
  • MPN: IMC-350-SEST-PS-A
  • Part #: IPCAVH220780
  • UPC:
Normally $307.67
Normally $307.67
You save $9
You save $9
PB Tech price
AUD $ 298 .22 $ 298 .22


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$298.22  +GST
$298.22

Features

The IMC-350 series offers the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and 100Mbps full-duplex on the fiber port, the IMC-350 series serves as media and data rate converter that have NEMA TS2 rating, making it ideal for use in traffic applications.

Plug-and-play operation with a variety of model types and power options make the IMC-350 series easy and convenient to use. The IMC-350I series is of industrial grade and can operate in a wide temperature range. Multiple power options, including the IEEE802.3af Power-over-Ethernet standard, allow the IMC-350I series to function as a power device. Its AC adapter and USB connectivity offer unsurpassed flexibility for a variety of installation needs.

The IMC-350 series supports Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both local and remote IMC Networks media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface.

- Metal enclosure with compact size
- Industrial grade design that supports an extended operating temperature (IMC-350I series)
- NEMA TS2 for traffic control
- IEEE802.3af compliant (IMC-350I series as PoE-PD)
- Supports Link Fault Pass Through (LFPT)
- Centralized powered IMC-318I chassis

For more information: https://advdownload.advantech.com/productfile/PIS/IMC-350-SEST-PS-A/file/IMC-350-LFPT_DS(030920)20200319170858.pdf

Specifications

MPN

IMC-350-SEST-PS-A
10/100 Mbps Miniature Media Converter

Optical Mode

Single-Mode

Wavelength

1310 nm

Distance

40 km

Optical Connector

ST

Power Adapter

Yes

Technical

IEEE 802.3, 802.3u
IEEE 802.3af compliant PoE-PD (IMC-350I)
Supports jumbo frames up to 1916 bytes
Plug-and-play operation
Status LED
AutoCross for MDI/MDIX
Supports Link Fault Pass Through (LFPT)
Terminal DC power block (IMC-350I)

Power Input

100 - 240V DC, 50-60Hz, 0.3A (IMC-350/350I AC input)
7 - 50V DC, 1A (IMC-350I DC input)
5V DC (Barrel Connector)
42.5-50VDC, 0.6A (IMC-350I PoE-PD input)

Environment

Operating Temperature

0 to +50 °C (+32 to +122 °F) (IMC-350)
-25 ~ 85°C (-13 ~ 185°F) (IMC-350I DC or PoE-PD input)
-10 to +50 °C (+14 to +122 °F) (IMC-350I AC input)

Storage Temperature

-35 ~ 75°C (-31 ~ 167°F) (IMC-350 series)
-40 to +85 °C (-40 to +185 °F) (IMC-350I series)

Operating Humidity

10 ~ 95% (non-condensing)
0 ~ 10,000 ft. altitude

MTBF

109,575 Hours (IMC-350 series)
162,935 Hours (IMC-350I series)

Mechanical

Dimensions (H x W x D)

2.11 x 4.57 x 8.51 cm (0.83 x 1.80 x 3.35 in)

Weight

0.317 kg (0.7 lb)

Certifications

CE, FCC Class B, UL/cUL, CSA (IMC-350, IMC-350I using any DC jack)
CE, FCC Class A, UL/cUL, CSA (IMC-350I using any DC jack)
NEMA TS2 for traffic control

Manufacturer Part No:
IMC-350-SEST-PS-A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220780
Product Model:
IMC-350-SEST-PS-A
Warranty: 12 months *
