Advantech IMC-595MPI-A 4TX/1SFP Managed PoE BT Media Converter

Normally $1,137.28

You save $34

AUD $ 1,102 .34

$ 1,102 .34

Advantech IMC-595MPI-A 4TX/1SFP Managed PoE BT Media Converter

Brand: Advantech
MPN: IMC-595MPI-A
Part #: IPCAVH220861
UPC:

Normally $1,137.28

You save $34

PB Tech price

AUD $ 1,102 .34

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: IMC-595MPI-A
Part #: IPCAVH220861
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

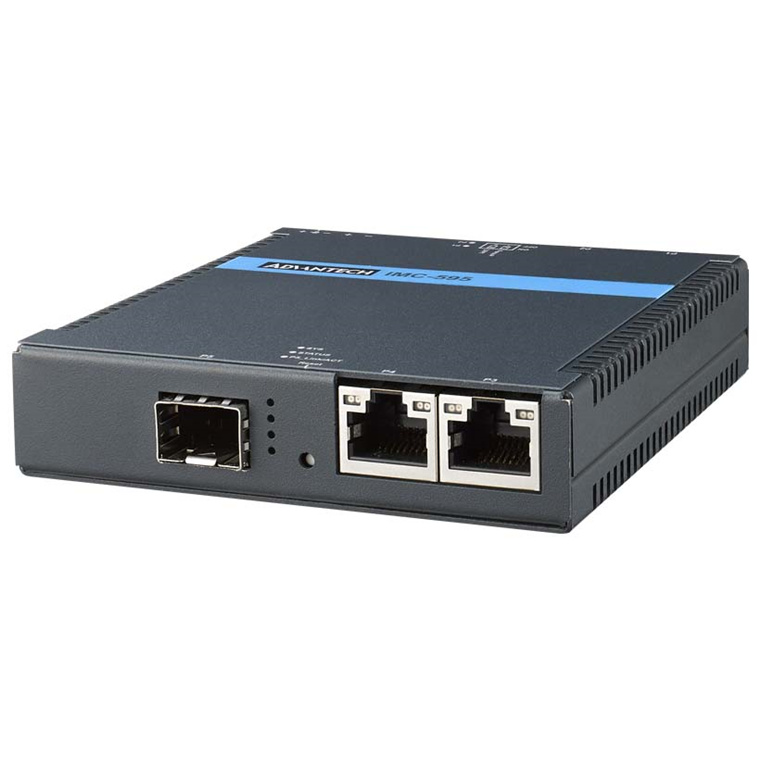

Advantech's IMC-595MPI three-in-one mega PoE media converter is a compact, industrial grade solution that can serve as a fiber-to-Ethernet media converter, a 90W*2 PoE injector and a light management Ethernet switch.

It supports Link Fault Pass Through (LFPT) and Force-Power functionality. It also allows flexible topology by switching from injector mode to switch mode. Therefore it is best fit used in harsh environment which needs slight network deployment changes.

- Versatile 5-port, up to 180W power output media converter at extended temperature
- Supports Switch/Injector mode setting by SNMP/iView
- Supports SNMP/iView for remote management
- Dip switch for LFPT and Power Force mode
- Supports LLDP
- Supports Jumbo Frames up to 9,216 bytes
- Supports Modbus Tcp
- Supports Broadcast Storm Control ON/OFF

Specifications

MPN

IMC-595MPI-A
Industrial managed PoE bt media converter

Communications

Standard

IEEE 802.3, 802.3u, 802.3x, 802.3af/at/bt, 802.3ab, 802.3z

LAN

4 x 10/100/1000Mbps(RJ-45)+1 x 100/1000Mbps(SFP)

Transmission Speed

Up to 1000 Mbps

Interface

Connectors

4 x RJ-45 (2 x PoE)
1 x SFP

DIP Switch

PIN1 PoE Force Mode: ON/OFF (default OFF)
PIN2 LFPT: ON/OFF (default ON)

LED Indicators

System/Status//PoE
UTP:/Speed/LNK/ACT
Fiber(P5): LNK/ACT

Power

Power Consumption

182W

Power Input

55~57VDC

Power Output

2 x Gigabit PoE, up to 120W with AC adaptor
2 x Gigabit PoE, up to 180W with DC power supply

Connectors

2P Pluggable Terminal Block, DC Jack

Physical

Enclosure

IP30, Metal shell with solid mounting kits

Dimensions (W x H x D)

92.5 x 98 x 21 mm (3.65 x 3.86 x 0.83 in.)

Mounting

Wall, DIN-rail

Protection

Reverse Polarity

Present

Environment

Operating Temperature

-40 ~ 75°C (-40~167°F)

Storage Temperature

-40 ~85°C (-40~185°F)

Operating Humidity

10 ~ 95% (non-condensing)

Storage Humidity

10 ~ 95% (non-condensing)

MTBF

699,158 hours

Certification

EMI

CE, FCC Class A,

EMS

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Shock

IEC 60068-2-27

Freefall

Federal Standard 101 Method 5007 Testing procedure B

Vibration

IEC 60068-2-6

Manufacturer Part No:

IMC-595MPI-A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220861

Product Model:

IMC-595MPI-A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
