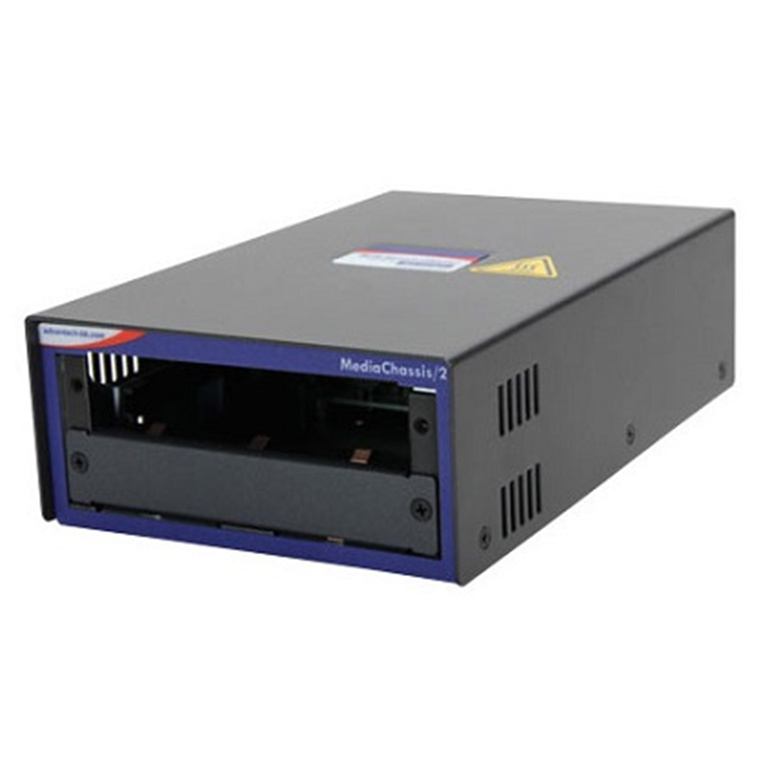

Advantech IMC-712I-DC Managed Hardened Modular 2-slot Media Converter Chassis, DC Power (also known as IE-MediaChassis 850-32106)
Advantech IMC-712I-DC Managed Hardened Modular 2-slot Media Converter Chassis, DC Power (also known as IE-MediaChassis 850-32106)
- Brand: Advantech
- MPN: IMC-712I-DC
- Part #: IPCAVH220875
- UPC:
- Brand: Advantech
- MPN: IMC-712I-DC
- Part #: IPCAVH220875
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Advantech IMC-712I-DC Managed Hardened Modular 2-slot Media Converter Chassis, DC Power (also known as IE-MediaChassis 850-32106)
- Brand: Advantech
- MPN: IMC-712I-DC
- Part #: IPCAVH220875

Product URL: https://www.pbtech.com/product/IPCAVH220875/Advantech-IMC-712I-DC-Managed-Hardened-Modular-2-s
Features
The IMC-71x series provides conversion of Ethernet-to-fiber and a variety of networking technologies. It enables network operators to drastically reduce the capital and operational expenses by providing all copper-to-fiber and multi-mode to single-mode conversions and network distance extensions. This modular approach allows network operators to inexpensively change protocols by simply changing the module rather than the entire unit. With AC or DC power options, it is a economical way to overcome a variety of media and mode conversion challenges.
- Designed for a variety of media and mode conversion modules
- Supports a wide range of protocols and future-proof upgrade paths
- High flexibility for module combinations for different environments
- Supports AC or DC power
- Standard and extended temperature models available
- Provides 3/6/20-slot chassis that supports low to high density deployment
- Supports SNMP management that uses optional SNMP management module for 3/6/20-slot chassis
Specifications
MPN
IMC-712I-DC
Also Known As
850-32106
# of slot
2
Extended Temperature
Yes
Power Input
DC
Dimensions (H x W x D)
5.81 x 12.03 x 18.54 cm
(2.29 x 4.74 x 7.3 inch)
Weights
0.86 kg (1.9 lbs)
AC Power Input
100 -240 VAC, 50/60Hz, 1.0A
DC Power Input
35 - 75 VDC, 1.5A@75VDC
MTBF
606,916 hours
Operating Temperature
-35 to +80 °C (-31 to +176 °F)
Storage Temperature
-40 to +85 °C (-40 to +185 °F)
Operating Humidity
5 ~ 95% (non-condensing)
0 to 10,000 feet altitude
Cerifications
FCC Class A, UL/cUL, CE,CSA
