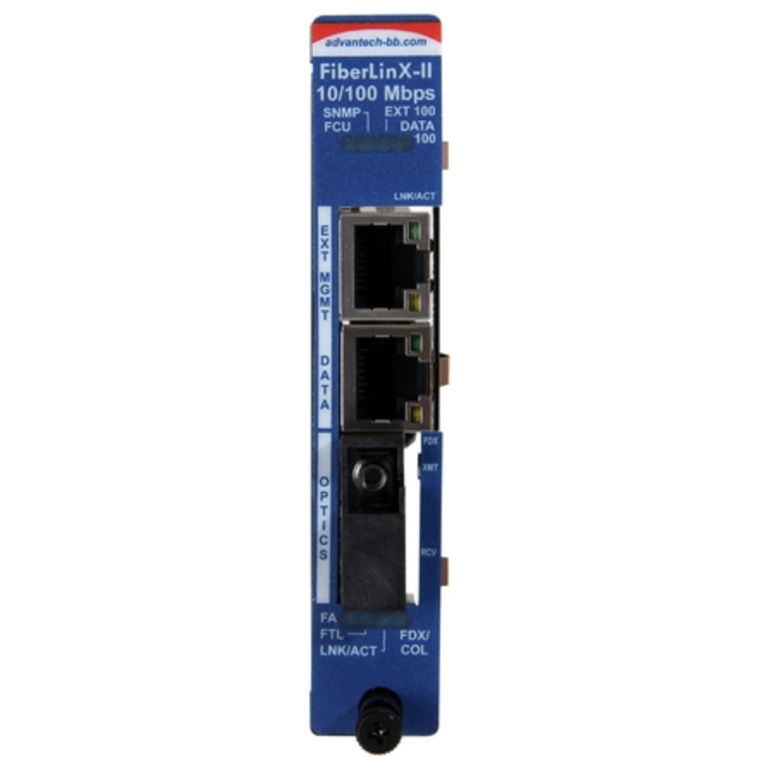

Advantech IMC-762-SSR Managed Modular Media Converter, 100Mbps, Single-Strand 1550xmt, 20km, SC (also known as iMcV 856-14044)

Normally $862.20

You save $29

AUD $ 832 .54

$ 832 .54

Advantech IMC-762-SSR Managed Modular Media Converter, 100Mbps, Single-Strand 1550xmt, 20km, SC (also known as iMcV 856-14044)

Brand: Advantech
MPN: IMC-762-SSR
Part #: IPCAVH220926
UPC:

Normally $862.20

You save $29

PB Tech price

AUD $ 832 .54

In stock at Supplier

Delivery: Order now and it ships on 01 Oct

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: IMC-762-SSR
Part #: IPCAVH220926
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The IMC-760 series of intelligent media converters connect a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (operation, administration, and management). Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a cost-effective solution.

The SNMP software, iVew² , allows for remoteconfiguration and alerts administrators to any potential problems on the long-haul fiber run, providing vital information on link conditions and reporting data on traffic statistics. With iVew² , the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.

- SNMP manageable
- OAM IEEE802.3ag/ah (operation, administration, and management)
- Supports per-port, bi-directional bandwidth control
- Supports powerful LinkLoss, FiberAlert and Loopback troubleshooting functions
- All management traffic remains isolated from the remote LAN
- The modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance

Specifications

Technical

IEEE 802.3
IEEE 802.3u
Bi-directional bandwidth control
802.3ag/ah OAM (Operation, Administration & Management)
Y.1731
Read/Write IEEE 802.1Q VLAN-tags
AutoCross for MDI/MDIX
Includes Hot-swappable Architecture

Management

SNMP V1 and V2c compatiblea
GUI-based iVew²
software for remote management and upgrades
IEEE 802.3x flow control
Supports DHCP and TFTP clients
Supports loopback test modes (MAC swap)
Supports LinkLoss, FiberAlert and Link Fault Pass Through

Ethernet Speed

10/100 Mbps

Optical Mode

Single-Strand

Wavelength

1550T/1310R

Distance

20 KM

Optical Connector

Operating Temperature

0 to +50 °C (+32 to +122 °F)

Storage Temperature

-25 to +70 °C (-13 to +158 °F)

Operating Humidity

5~ 95% (non-condensing)
0 ~ 10,000 ft. altitude

MTBF

1.6 million hours

Dimensions (H x W x D)

10.74 x 2.0 x 7.05 cm (4.19 x 0.78 x 2.75 in)

Weight

0.11 kg (0.30 lbs)

Certifications

FCC Class A, CE, CSA, CB
UL/cUL

Manufacturer Part No:

IMC-762-SSR

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220926

Product Model:

IMC-762-SSR

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
