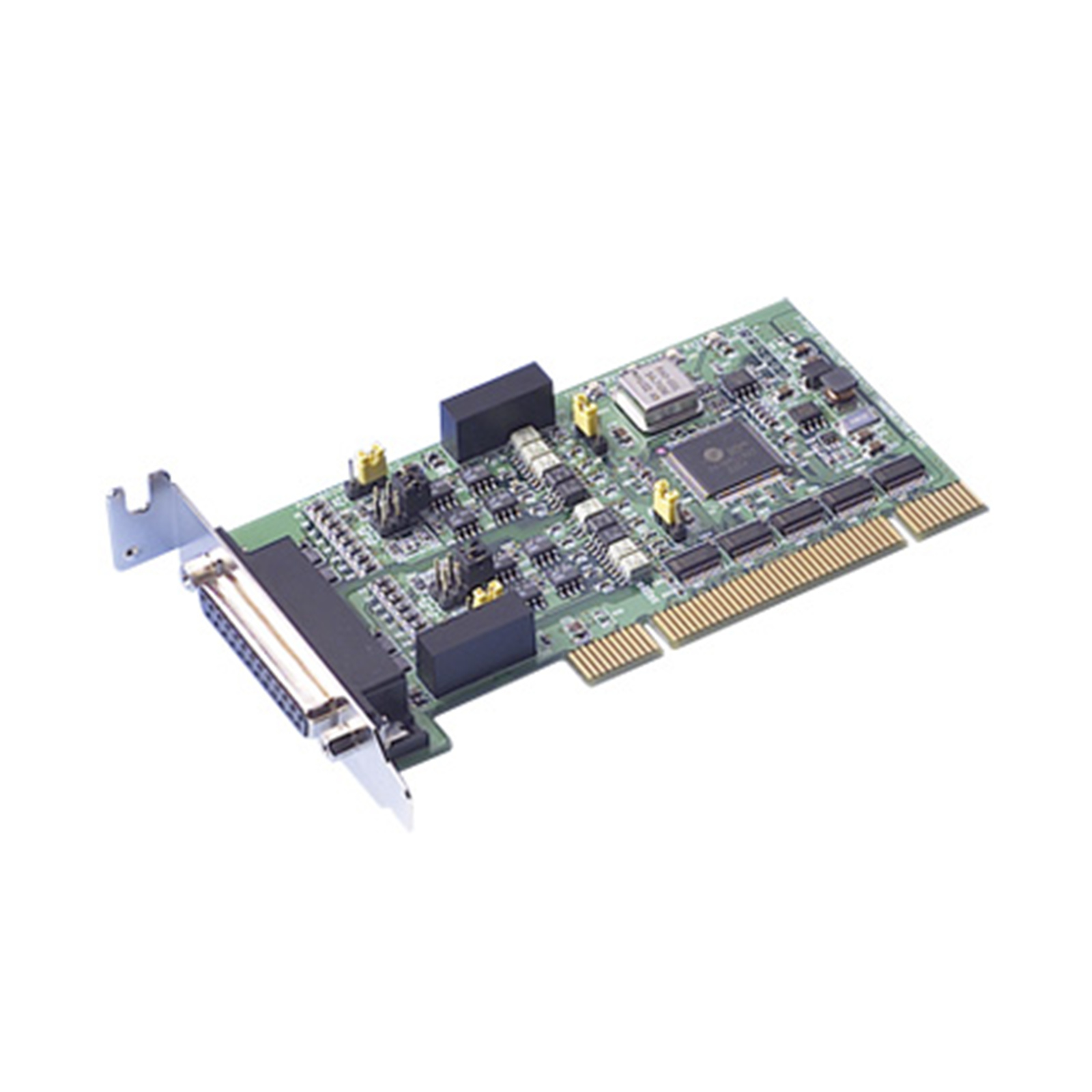

Advantech PCI-1602UP-CE 2-port RS-232/422/485 Low-Profile PCI Communication Card with Isolation
- Brand: Advantech
- MPN: PCI-1602UP-CE
- Part #: IPCAVH220969

Product URL: https://www.pbtech.com/product/IPCAVH220969/Advantech-PCI-1602UP-CE-2-port-RS-232422485-Low-Pr
Features
2-port RS-232/422/485 Low-Profile PCI Communication Card with Isolation
- PCI bus 2.2 compliant
- Up to 921.6 kbps speed for extremely fast data transmissions
- 2 x RS-232/422/485 ports
- Supports Windows XP/7/8/10 and Linux operating systems
- 3,000 VDC isolation protection
- Automatic RS-485 data flow control
- Powerful and easy-to-use utility (ICOM tools)
- Supports any baud rate setting
Specifications
General
?Bus Type
Universal PCI V 2.2
Certification
CE, FCC class A
Connectors
1 x DB25, female
Dimensions (L x H)
119.91 x 64.41 mm (4.72" x 2.5") (low-profile MD1)
Power Consumption
260mA@ +3.3V (typ.)
Communications
?Communication Controller
PI7C8952
Data Bits
5, 6, 7, 8
?Data Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI
RS-422: Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-
RS-485: Data+, Data-
FIFO
128 bytes
Flow Control
CTS/RTS, Xon/Xoff
Parity
None, Even, Odd, Mark and Space
Speed
50 bps ~ 921.6 kbps
Stop Bits
1, 1.5, 2
Protection
?EFT Protection
1 KV
Isolation Protection
3,000 VDC
ESD Protection
15KV (air), 8KV (contact)
Surge Protection
1 KV
Environment
?Operating Humidity
5 ~ 95% RH, non-condensing
?Operating Temperature
-10 ~ 60 °C (14 ~ 140 °F)
?Storage Temperature
-25 ~ 85 °C (-13 ~ 185 °F)
