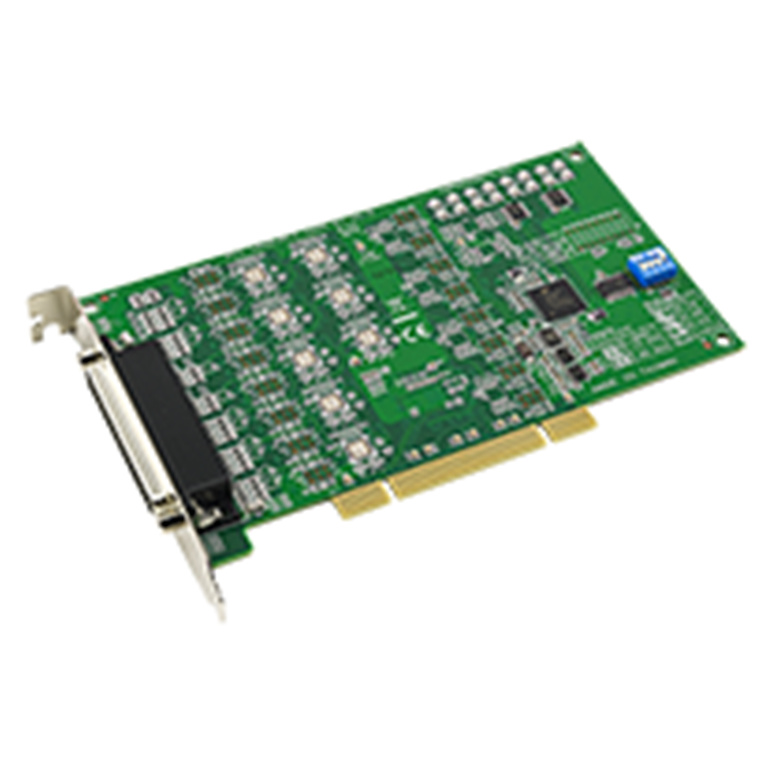

Advantech PCI-1620B-DE 8-port RS-232 PCI Communication Card with Surge
- Brand: Advantech
- MPN: PCI-1620B-DE
- Part #: IPCAVH220974

Product URL: https://www.pbtech.com/product/IPCAVH220974/Advantech-PCI-1620B-DE-8-port-RS-232-PCI-Communica
Features
The PCI-1620 is an eight port RS-232 PCI communication card that are compatible with the PCI 2.2 bus specification, and offer transmission speeds up to 921.6 kbps. They also support any baud rate setting, for example 500 kbps is acceptable. PCI-1620 also comes with high-performance OXuPC1954 UART with 128- byte FIFO to reduce CPU load. These components make your system more stable and reliable. Thus, the PCI-1620 is especially suitable for multitasking environments.
- PCI bus 2.2 compliant
- Speeds up to 921.6 kbps for extremely fast data transmission
- Supports any baud rate setting
- 8x RS-232
- XR17V358 UART with 256-byte FIFOs
- Supported operating systems: Windows 7/8/10, and Linux.
Specifications
Communications
Ports
8
Data Bits
5, 6, 7, 8
FIFO
256 bytes
Parity
None, Even, Odd, Mark and Space
Speed
50 bps ~ 921.6 kbps, any baud rate setting
Stop Bits
1, 1.5, 2
Data Flow Control
DTR/DSR, RTS/CTS, Xon/Xoff
Communication Controller
XR17V358
Serial/CAN/GPIB/USB
RS-232
Environment
Operationl Temperature
-10 ~ 60° C
Operating Humidity
5 ~ 95 % RH, non-condensing
Storage Temperature
-25 ~ 85°C
General
Bus
PCI
Connectors
1x Female DB62
Power Consumption
260 mA @ +3.3 V (typ.)
Surge Protection
1000V
Certifications
CE, FCC, RoHS
OS Support
32/bit/64-bit Windows 7/8/10 Linux
Dimensions (mm)
174.65 x 106.67
