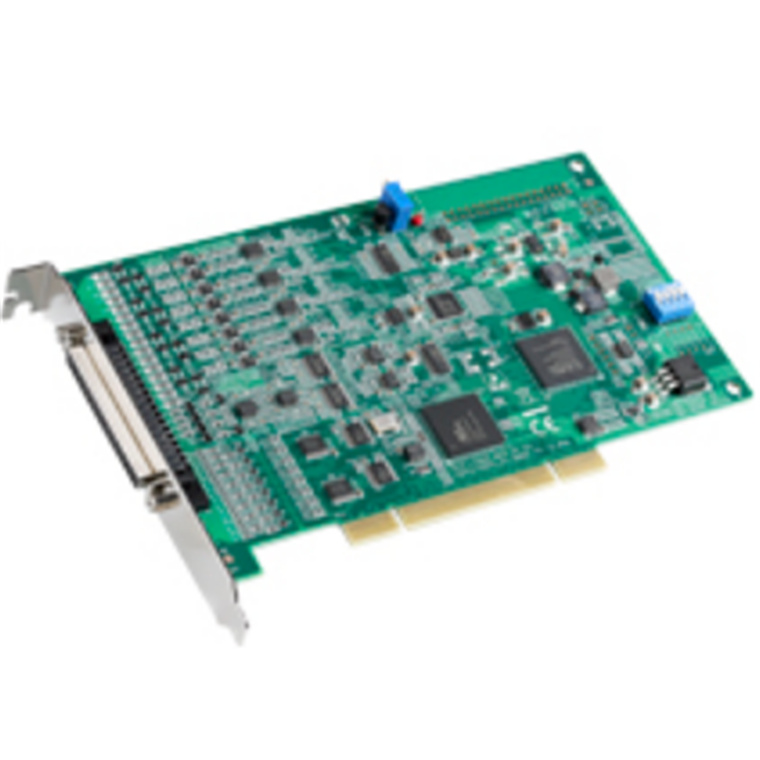

Advantech PCI-1706U-AE 250 kS/s, 16-bit, 8-ch Simultaneous Sampling, Multifunction PCI Card
- Brand: Advantech
- MPN: PCI-1706U-AE
- Part #: IPCAVH220978

Product URL: https://www.pbtech.com/product/IPCAVH220978/Advantech-PCI-1706U-AE-250-kSs-16-bit-8-ch-Simulta
Features
250 kS/s, 16-bit, 8-ch Simultaneous Sampling, Multifunction PCI Card
- 8 differential analog inputs
- 8A/D converters simultaneously sampling
- 16-bit A/D converter, with up to 250kHz sampling rate for each channel
- Programmable gain
- Multiple A/D triggering modes
- Onboard FIFO memory up to 8K Sample
- Programmable pacer/counter
- BoardID™ switch
- Universal PCI Bus (supports 3.3V or 5V PCI bus signals)
Specifications
Analog Input
Channels
8
Input Range
±1.25 V, ±2.5 V, ±5 V, ±10 V
Resolution(Bits)
16-bit
Sampling Rates(S/s)
250 KS/s (per channel)
Analog Output
Channels
2
Output Ranges
0~5 V, 0~10 V, ±5 V, ±10 V, 0~20 mA, 4~20 mA
Resolution
12-bit
Update Rate(S/s)
Static update
Counter/Encoder Input
Channels
2
Counting Range
32-bit
Digital Input
Channels
16 (TTL)
Digital Output
Channels
16 (TTL)
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
