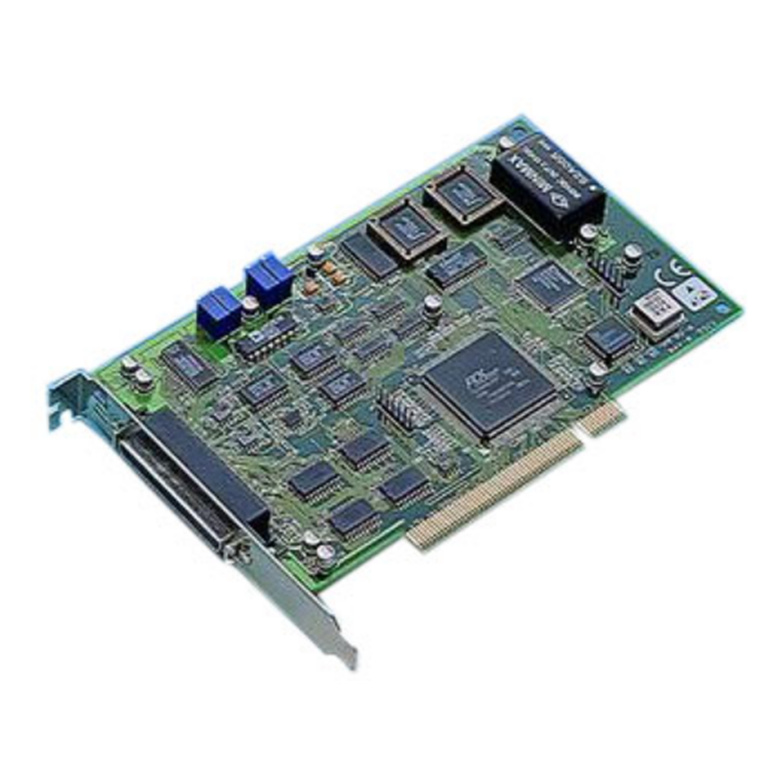

Advantech PCI-1711U-CE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

Normally $581.65

You save $23

AUD $ 557 .91

$ 557 .91

Advantech PCI-1711U-CE 100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

Brand: Advantech
MPN: PCI-1711U-CE
Part #: IPCAVH220985
UPC:

Normally $581.65

You save $23

PB Tech price

AUD $ 557 .91

In stock at Supplier

Delivery: Order now and it ships on 29 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCI-1711U-CE
Part #: IPCAVH220985
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

- 16-ch single-ended analog input
- Cost-effective
- 12-bit A/D converter, with up to 100 kHz sampling rate
- 16 single-ended analog inputs
- Programmable gain
- 16 digital inputs and 16 digital outputs
- 16-ch digital input and 16-ch digital output
- Two 12-bit analog output channels
- Onboard FIFO memory (1,024 samples)
- Onboard FIFO memory (1024 samples)
- Automatic channel/gain scanning
- Onboard programmable counter

For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1711/Product%20-%20Datasheet/PCI-1711U_UL20170609231819.PDF

Specifications

Analog Input

Channels

Input Range

±0.625 V ±1.25 V, ±2.5 V, ±5 V, ±10 V

Resolution(Bits)

12-bit

Sampling Rates(S/s)

100 KS/s (sum)

Analog Output

Channels

Output Ranges

0~5 V, 0~10 V

Resolution

12-bit

Update Rate(S/s)

Static update

Counter/Encoder Input

Channels

Counting Range

16-bit

Digital Input

Channels

16 (TTL)

Digital Output

Channels

16 (TTL)

General

Programming Language

C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

Manufacturer Part No:

PCI-1711U-CE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220985

Product Model:

PCI-1711U-CE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
