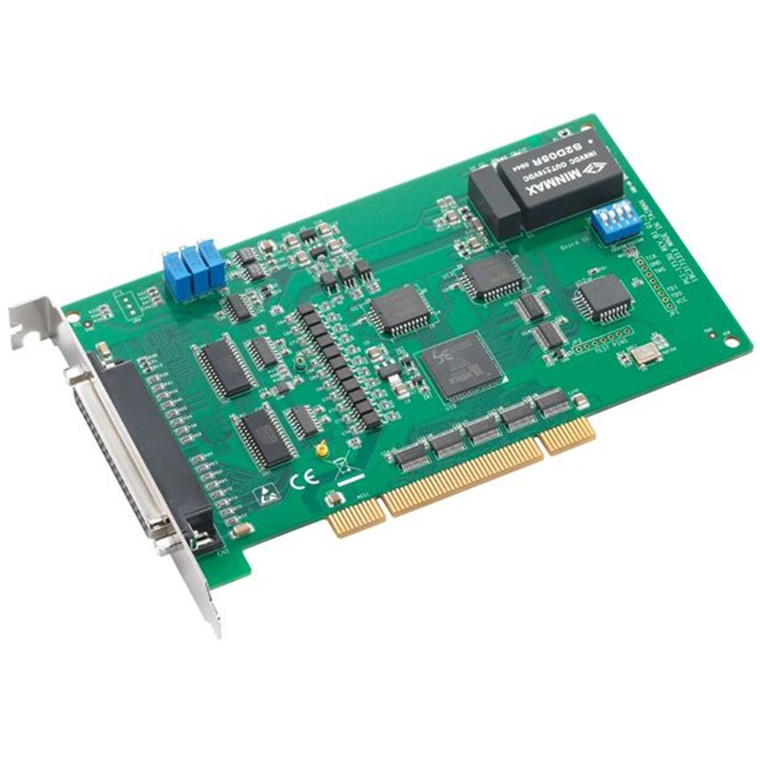

Advantech PCI-1713U-BE 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card

Normally $895.24

You save $36

AUD $ 858 .71

$ 858 .71

Advantech PCI-1713U-BE 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card

Brand: Advantech
MPN: PCI-1713U-BE
Part #: IPCAVH220990
UPC:

Normally $895.24

You save $36

PB Tech price

AUD $ 858 .71

In stock at Supplier

Delivery: Order now and it ships on 29 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCI-1713U-BE
Part #: IPCAVH220990
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech PCI-1713U-BE 100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card

- 2,500 VDC isolation protection
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 12-bit resolution for A/D conversion
- Programmable gain for each input channel
- Software, internal or external pacer sampling modes supported
- Onboard FIFO memory: 4,096 samples;
- Universal PCI bus
- BoardID™ switch

For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1713U/Product%20-%20Datasheet/PCI-1713U20150714145349.pdf

Specifications

Analog Input

Channels

Input Range

±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V

Isolation Protection

2,500 VDC

Resolution(Bits)

12-bit

Sampling Rates(S/s)

100 KS/s (sum)

General

Bus Type

Universal PCI V2.2

Programming Language

C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

I/O Connector

1 x DB37 female connector

Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Power Consumption

Typical: 5 V @ 850 mA
Max.: 5 V @ 1.0 A

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Storage Temperature

-20 ~ 70°C (-4 ~ 158°F)

Storage Humidity

5 ~ 95% RH non-condensing

Manufacturer Part No:

PCI-1713U-BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220990

Product Model:

PCI-1713U-BE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
