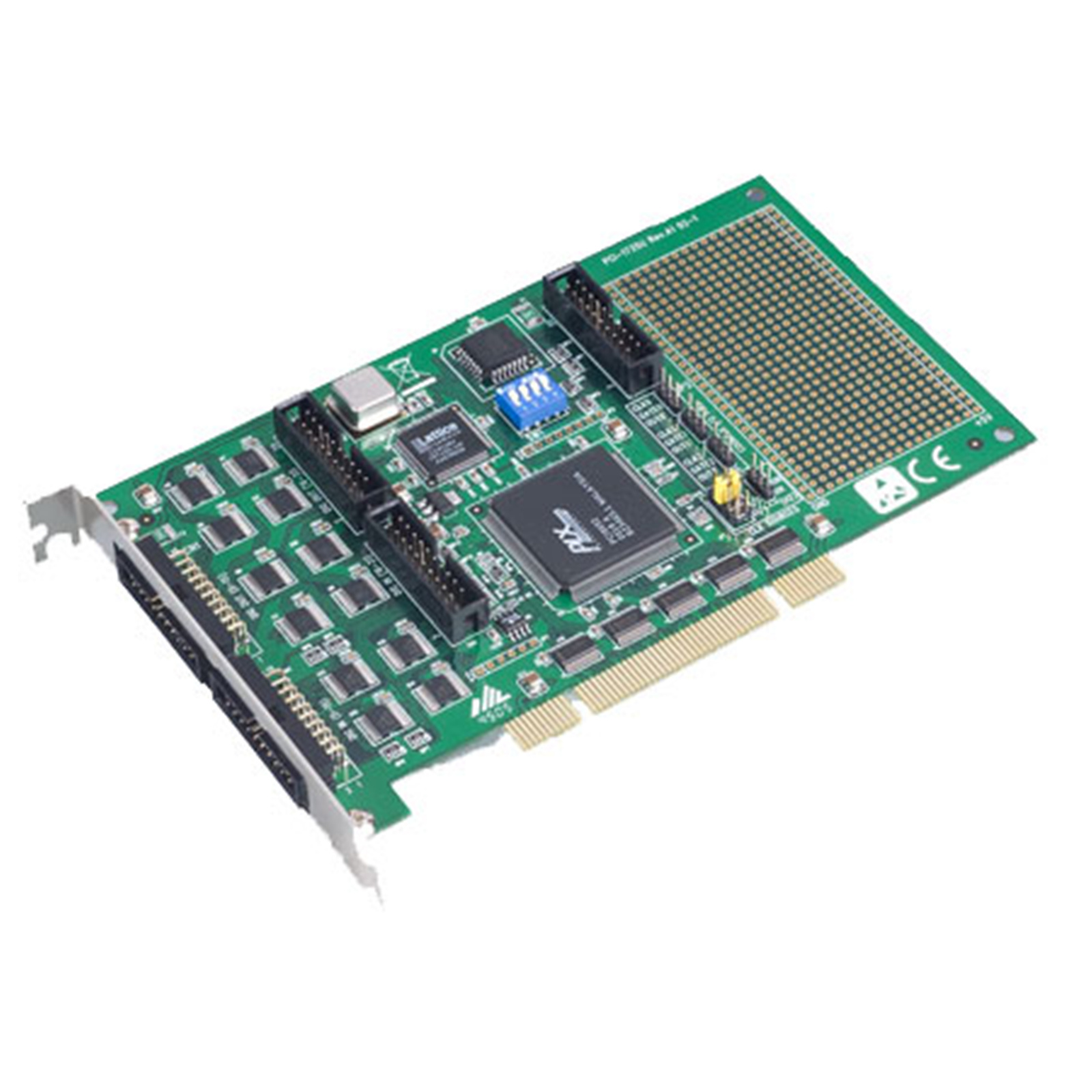

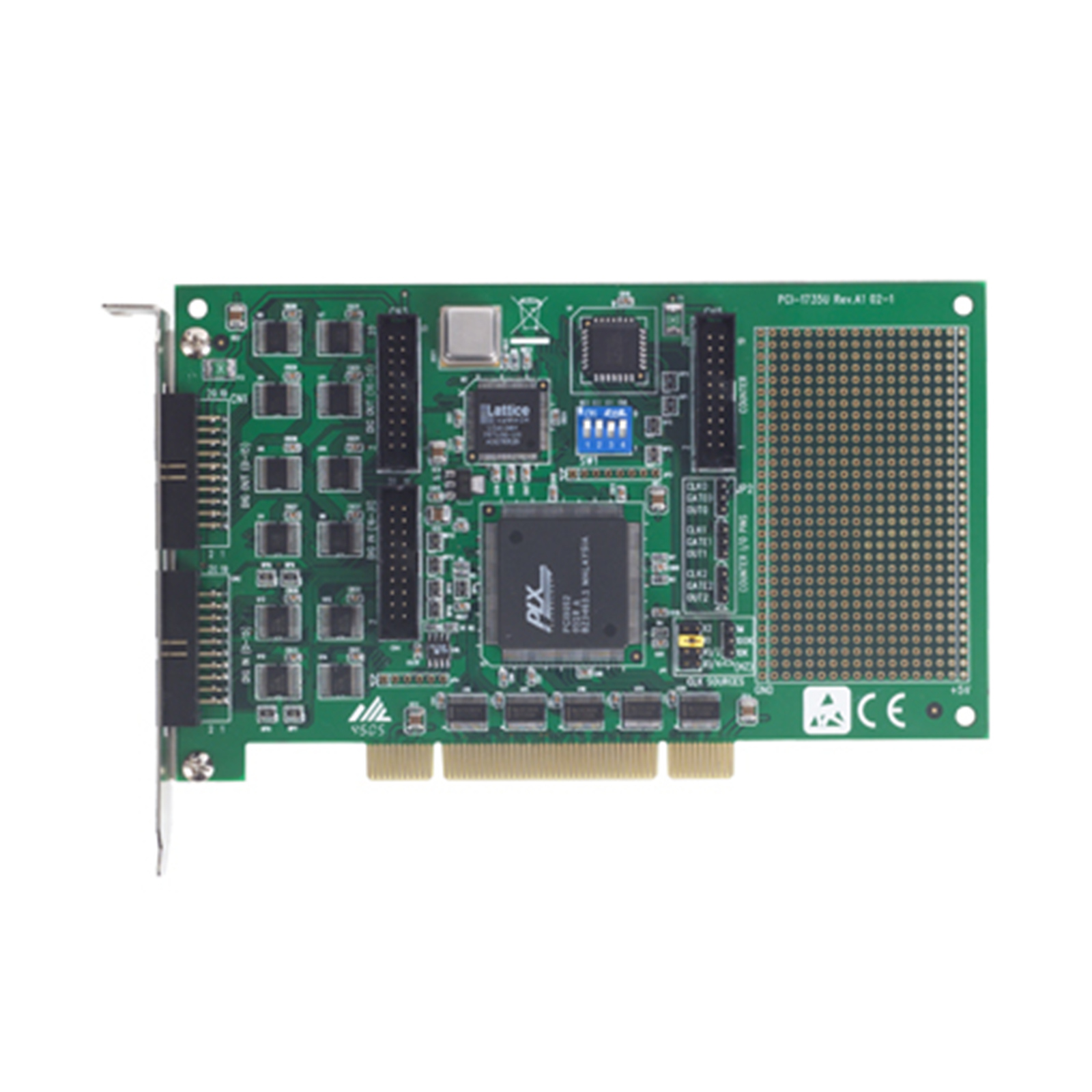

Advantech PCI-1735U-AE 64-ch Digital I/O and Counter Universal PCI Card
- Brand: Advantech
- MPN: PCI-1735U-AE
- Part #: IPCAVH221013

Product URL: https://www.pbtech.com/product/IPCAVH221013/Advantech-PCI-1735U-AE-64-ch-Digital-IO-and-Counte
Features
64-ch Digital I/O and Counter Universal PCI Card
- ISA-Compatible with PCL-720+
- 32 TTL-level digital input channels
- 32 TTL-level digital output channels
- High-output driving capacity
- Low-input loading
- 3 programmable counter/timer channels
- User configurable clock source
- Breadboard area for custom circuits
Specifications
Digital Input
Channels
PCI-1735U: 32
Compatibility
5 V/TTL
Input Voltage
PCI-1735: Logic 0: 0.8V max.
Digital Output
Channels
PCI-1735U: 32
Compatibility
5 V/TTL
Output Voltage
PCI-1735U: Logic 0: 0.5 V max.
Logic 1: 2.4 V min.
Output Capability
PCI-1735U: Sink: 0.5 V @ 24 mA
Source: 2.4 V @ 15 mA
Counter/Timer (PCI-1735U)
Channels
3
Resolution
16 bits
Compatibility
5 V/TTL
Max. Input Frequency
1 MHz
Re. Clock Internal
Selectable 1 MHz, 100 kHz, or 10 kHz base clock
Ext. Clock Frequency
Jumper selectable divider: x2, x1, x0.5, and x0.25
Prog.Counter Modes
6
General
Bus Type
Universal PCI V2.2
I/O Connectors
PCI-1735U: 5 x 20-pin box header
Dimensions (L x H)
175 x 100 mm (6.9" x 3.9")
Power Consumption
PCI-1735U: 5V @365 mA (max.)
Operating Temperature
0 ~ 65°C (32 ~ 149°F)
Storage Temperature
-25 ~ 80°C (-13 ~ 176°F)
Storage Humidity
5 ~ 95% RH, non-condensing
