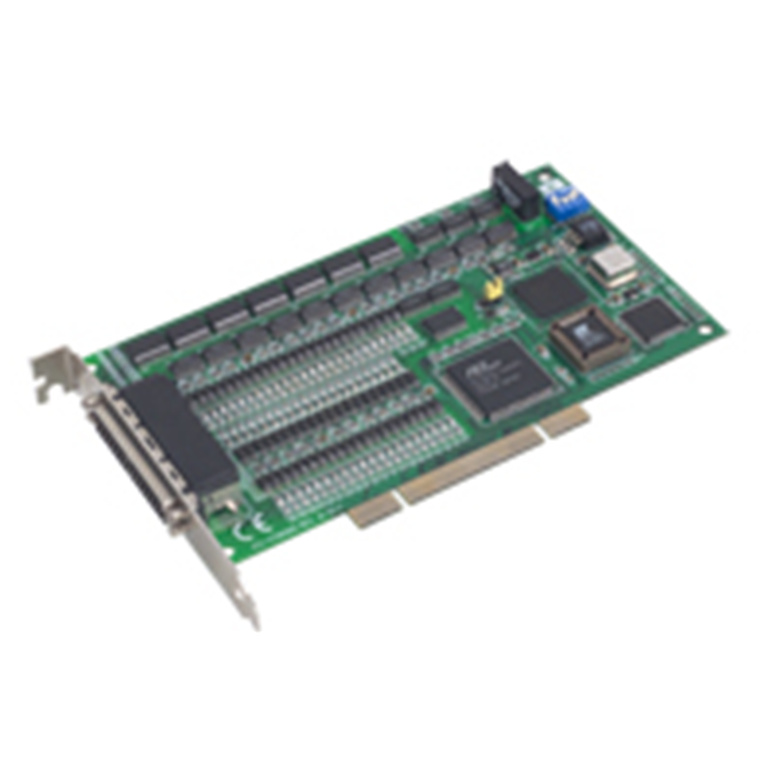

Advantech PCI-1758UDO-BE 128-ch Isolated Digital Output PCI Card

Normally $813.04

You save $24

AUD $ 788 .06

$ 788 .06

Advantech PCI-1758UDO-BE 128-ch Isolated Digital Output PCI Card

Brand: Advantech
MPN: PCI-1758UDO-BE
Part #: IPCAVH221042
UPC:

Normally $813.04

You save $24

PB Tech price

AUD $ 788 .06

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCI-1758UDO-BE
Part #: IPCAVH221042
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 128 isolated digital output channels
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High-sink current for isolated output channels (200 mA max./channel)
- Current protection for each port
- BoardID™ switch
- Output status read-back
- Digital output value retained after hot system reset
- Programmable Power-up States

For more information: https://advdownload.advantech.com/productfile/PIS/PCI-1758/file/PCI-1758UDI_UDO_UDIO_DS(102620)20201222161317.pdf

Specifications

MPN

PCI-1758UDO-BE
128-ch Isolated DO Universal PCI Card

Isolated Digital Input

Channels

128

Input Voltage

Logic 0: ± 2.5 V
Logic 1: -25 V ~ -5 V or 5 V ~ 25 V

Interrupt Capable Ch.

128

Isolation Protection

2,500 VDC

Opto-Isolator Response

100 µs

Input Resistance

3 kOhm

Isolated Digital Output

Channels

128

Output Type

Sink (NPN)

Isolation Protection

2,500 VDC

Output Voltage

5 ~ 40 VDC

Sink Current

200mA/ch (sink) @25 °C
150mA/ch (sink) @60 °C

Opto-isolator Response

100 µs

General

Bus Type

Universal PCI V2.2

I/O Connectors

2 x mini-SCSI HDRA-E100 female connector

Dimensions (L x H)

175 x 100 mm (6.9" x 3.9")

Power Consumption

Typical
5V @ 50 mA,
12V @ 20 mA
Max.
5V @ 385 mA,
12V @ 250 mA

Operating Temperature

0 ~ 60°C (32 ~ 140°F) (IEC 68-2-1, 2)

Storage Temperature

-20 ~ 70°C (-4 ~ 158°F)

Storage Humidity

5 ~ 95% non-condensing

Manufacturer Part No:

PCI-1758UDO-BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221042

Product Model:

PCI-1758UDO-BE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
