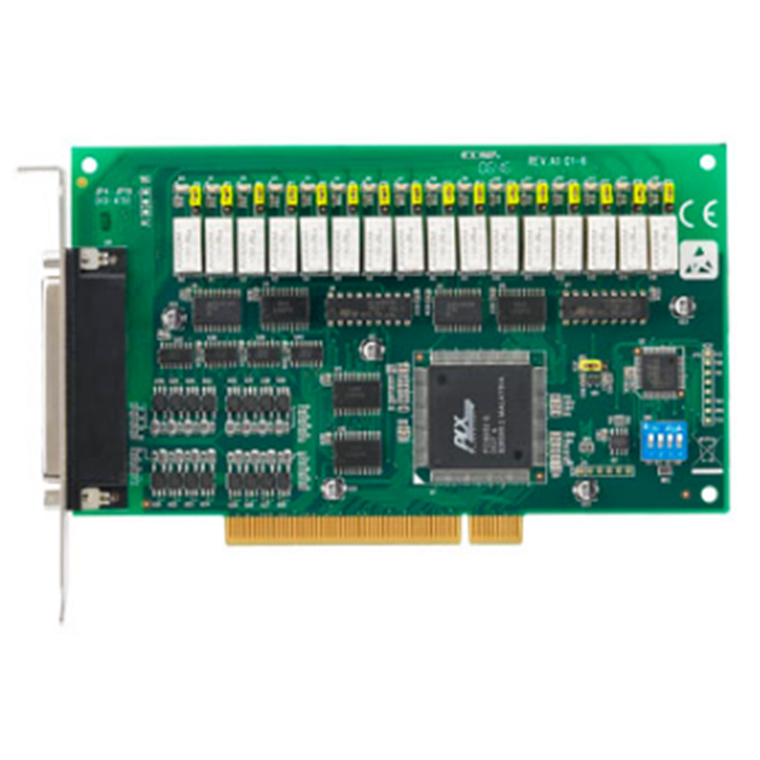

Advantech PCI-1762-BE 16-ch Relay and 16-ch Isolated Digital Input PCI Card
Advantech PCI-1762-BE 16-ch Relay and 16-ch Isolated Digital Input PCI Card
- Brand: Advantech
- MPN: PCI-1762-BE
- Part #: IPCAVH221050
- UPC:
- Brand: Advantech
- MPN: PCI-1762-BE
- Part #: IPCAVH221050
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech PCI-1762-BE 16-ch Relay and 16-ch Isolated Digital Input PCI Card
- Brand: Advantech
- MPN: PCI-1762-BE
- Part #: IPCAVH221050

Product URL: https://www.pbtech.com/product/IPCAVH221050/Advantech-PCI-1762-BE-16-ch-Relay-and-16-ch-Isolat
Features
- 16 relay output channels and 16 isolated digital input channels
- LED indicators to show activated relays
- Jumper selectable Form A/Form B-type relay output channel
- Wide input range (10 ~ 50 VDC)
- Retain relay output values when hot system reset
- High-voltage isolation on input channels (2,500 VDC)
- High ESD protection (2,000 VDC)
- High over-voltage protection (70 VDC)
- Output status read-back
- Interrupt handling capability
- High-density DB-62 connector
- BoardID™ switch
Specifications
MPN
PCI-1762-BE
Digital Input
Channels
16 (Isolated)
Isolation Protection
2,500 VDC
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Relay Output
Channels
16 Form A
Contact Rating (Resistive)
0.5 A @ 30 VDC, 0.5 A @ 250 VAC
