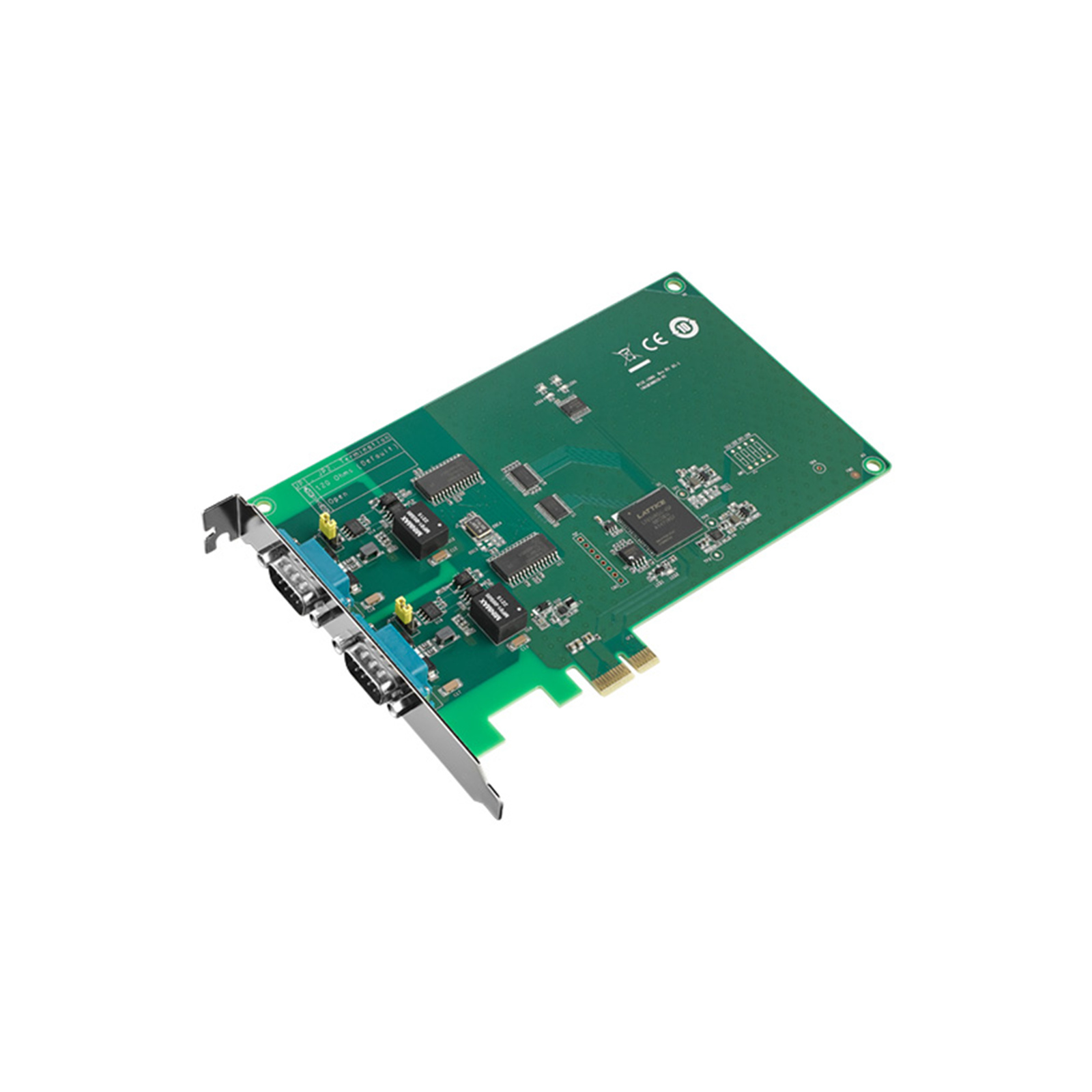

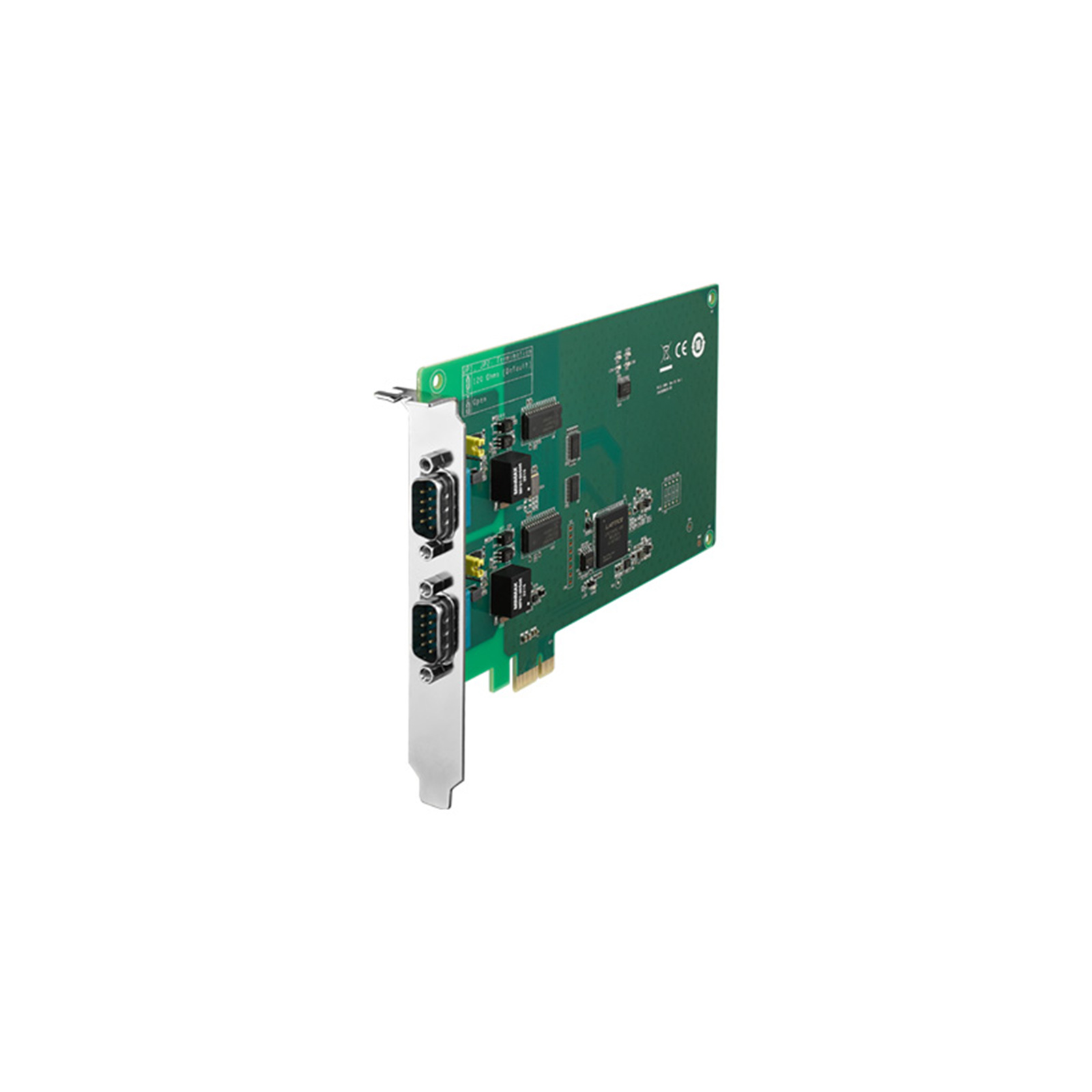

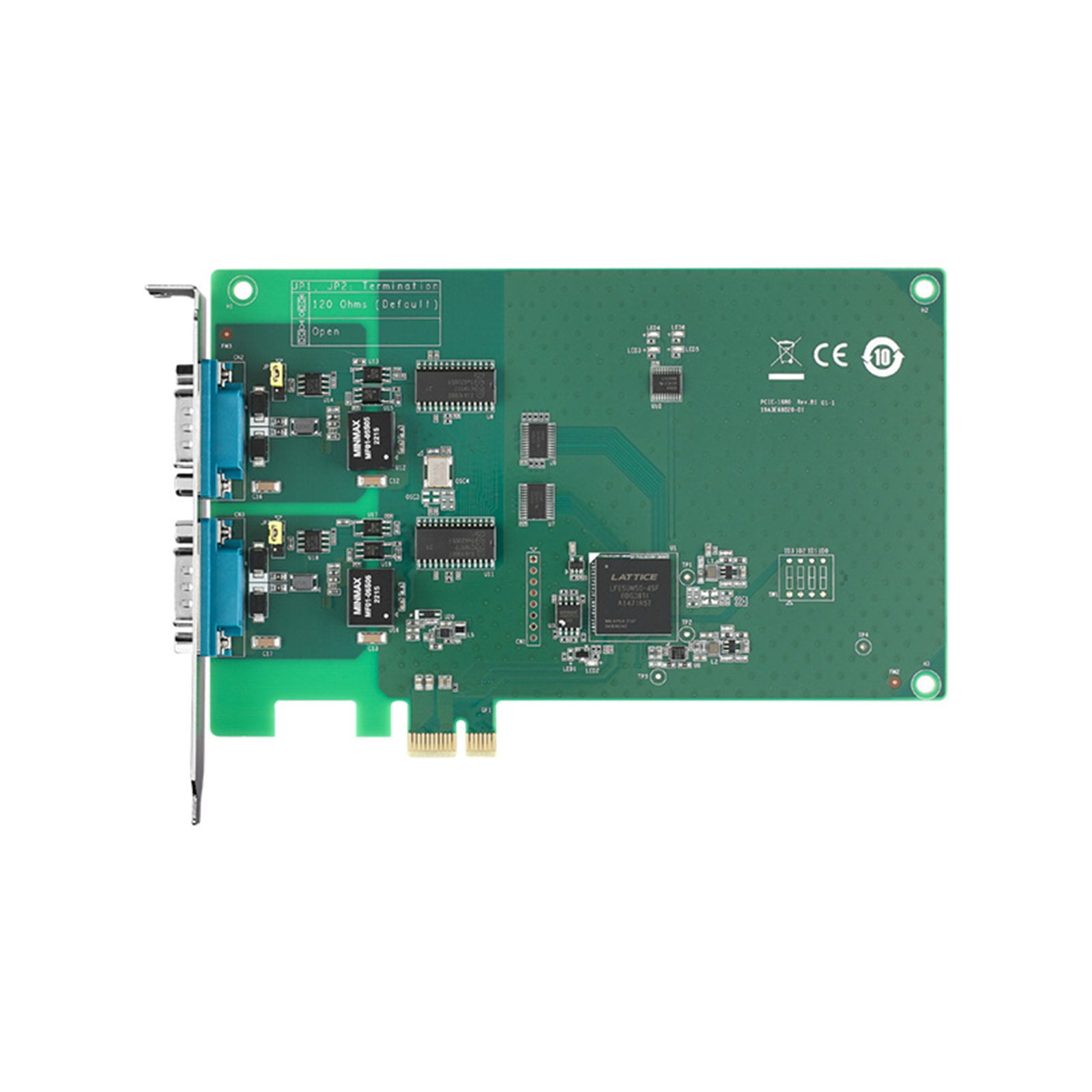

Advantech PCIE-1680-B 2-Port CAN-Bus PCIE card w/ Isolation
- Brand: Advantech
- MPN: PCIE-1680-B
- Part #: IPCAVH221071

Product URL: https://www.pbtech.com/product/IPCAVH221071/Advantech-PCIE-1680-B-2-Port-CAN-Bus-PCIE-card-w-I
Features
2-Port CAN-Bus PCIe Card with Isolation
PCI-1680 and PCIE-1680 are purpose-built communication cards that ensure CAN connectivity. With 2 independent CAN controllers built in, PCI-1680 and PCIE-1680 enable bus arbitration and error detection with automatic transmission repetition, drastically reducing data loss and ensuring system reliability. Additionally, both PCI-1680 and PCIE-1680 operate at baud rates of up to 1 Mbps.
- PCIe bus specification 1.2 compliant
- Operates two separate CAN networks at the same time
- High speed transmission up to 1 Mbps
- 16 MHz CAN controller frequency
- Optical isolation protection of 2,500 VDC ensures system reliability
- Windows DLL library and examples included
- Supports Windows CE5/CE6/XP/7/8.1/10 drivers and utilities
- Supports Linux 2.4.xx / 2.6.xx; Intel x86 hardware platform
Specifications
General
?Bus Type
PCI Express V1.0/Universal PCI
Certification
CE, FCC
Connectors
2 x DB9, male
Ports
2
Power Consumption
3.3 V @ 600 mA (typical)
Communication
?CAN Controller
NXP SJA-1000
CAN Transceiver
NXP TJA1051T
Signal Support
CAN_H, CAN_L
Protocol
CAN 2.0 A/B
Data Transfer Rate
Programmable up to 1 Mbps
CAN Frequency
16MHz
Protection
?Isolation Protection
2,500 VDC
Mechanical and Environmental
? Operating Temperature
0 ~ 70 °C (32 ~ 158 °F) (refer to IEC 60068-2-1, 2)
?Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
?Operating Humidity
5 ~ 95% relative humidity, non-condensing
Dimensions (L x H)
168 x 111 mm (6.6" x 4.4")
