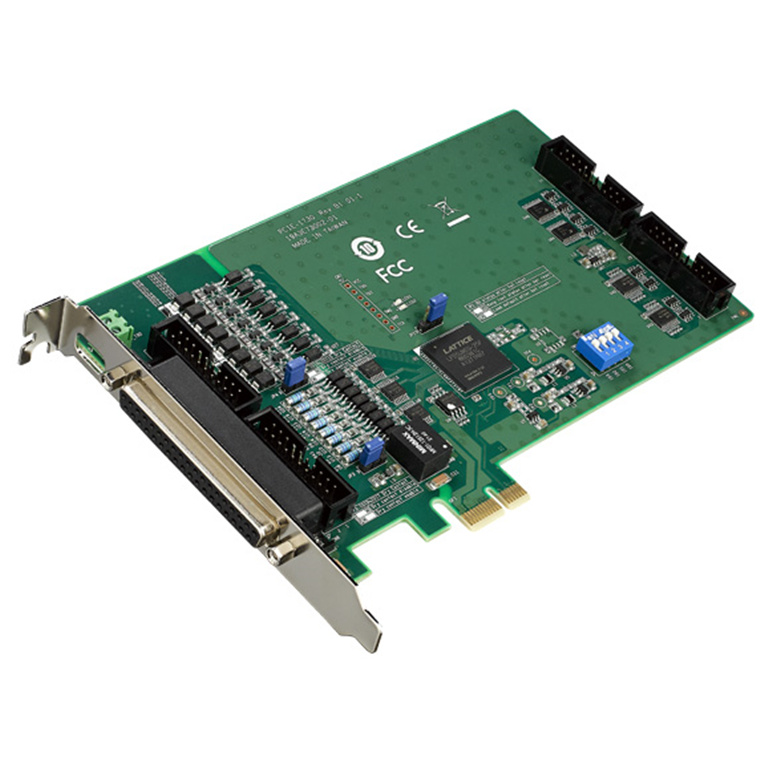

Advantech PCIE-1730-BE 32ch Iso. DIO and 32ch TTL DIO PCI Express Card

Normally $316.84
Normally $316.84
You save $9
You save $9
AUD $ 307 .11
$ 307 .11
$307.11  +GST
$307.11

Advantech PCIE-1730-BE 32ch Iso. DIO and 32ch TTL DIO PCI Express Card

  • Brand: Advantech
  • MPN: PCIE-1730-BE
  • Part #: IPCAVH221072
  • UPC:
Normally $316.84
Normally $316.84
You save $9
You save $9
PB Tech price
AUD $ 307 .11 $ 307 .11


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$307.11  +GST
$307.11

Features

- 32-ch isolated DI/O (16-ch digital input, 16-ch digital output)
- 32-ch TTL DI/O (16-ch digital input,16-ch digital output)
- High output driving capacity
- Interrupt handling capability
- 2x 20-pin connectors for isolated DI/O channels and 2 for TTL DI/O channels
- D-type connector for isolated input and output channels
- High-voltage isolation on output channels (2,500 VDC)

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1730/file/PCIE-1730_1730H_DS(093022)20220930171212.pdf

Specifications

Digital Input

Channels

16

Compatibility

5 V/TTL

Input Voltage

Logic 0: 0.8 V max.
Logic 1: 2.0 V min.

Interruptible Channels

PCIE-1730: 2 (IDI0, IDI8)

Isolated Digital Input

Channels

16

Input Voltage

Logic 0: 3 V max.
Logic 1: 10 V min. (30 V max.)

Interruptible Channels

PCIE-1730: 2 (IDI0, IDI8)

Isolation Protection

2,500 VDC

Response Time

100µs

Input Resistance

2.7 kW @ 1 W

Digital Output

Channels

16

Compatibility

5 V/TTL

Output Voltage

Logic 0: 0.5V max.
Logic 1: 2.4V min.

Output Capability

Sink: 24mA @ 0.5V
Source: 15mA @ 2.4V

Isolated Digital Output

Channels

16

Output Type

Sink type (NPN)

Isolation Protection

2,500 VDC

Output Voltage

5 ~ 40 VDC

Sink Current

500 mA max./channel

Response Time

100µs

General

Bus Type

PCI Express V1.0

I/O Connectors

1 x DB37, female
4 x 20-pin box header

Dimensions (L x H)

168 x 100 mm (6.6" x 3.9")

Power Consumption

Typical:3.3 V @ 280 mA, 12 V @ 330 mA
Max.: 3.3 V @ 420 mA, 12 V @ 400 mA

Operating Temperature

0 ~ 60 °C (32 ~ 140 °F)

Storage Temperature

-25 ~ 85 °C (-13 ~ 185 °F)

Storage Humidity

5 ~ 95% RH, non-condensing

Manufacturer Part No:
PCIE-1730-BE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221072
Product Model:
PCIE-1730-BE
Warranty: 12 months *
