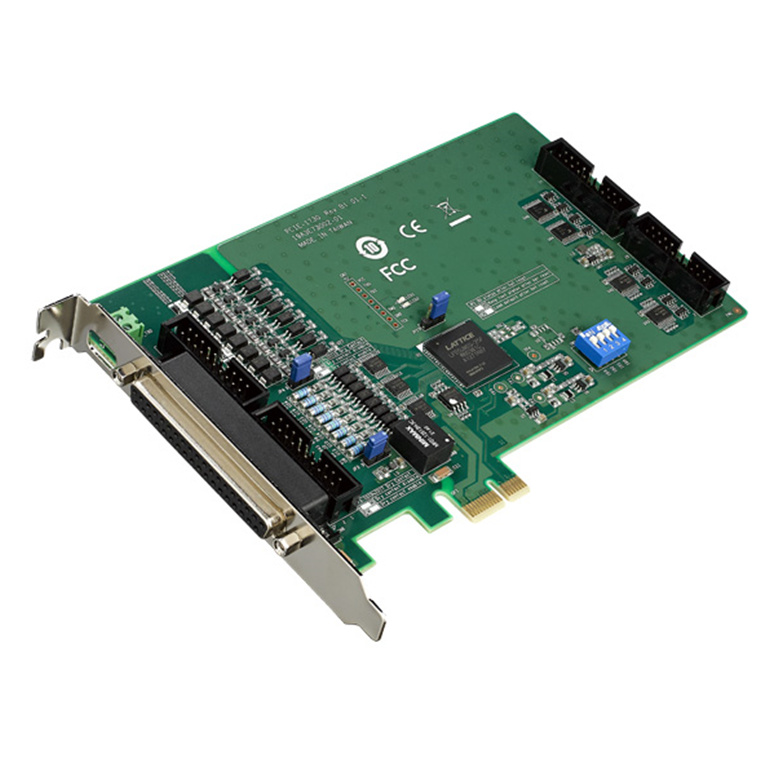

Advantech PCIE-1730H-BE 32ch Iso. DIO and 32ch TTL DIO w/ Filter card
- Brand: Advantech
- MPN: PCIE-1730H-BE
- Part #: IPCAVH221073

Product URL: https://www.pbtech.com/product/IPCAVH221073/Advantech-PCIE-1730H-BE-32ch-Iso-DIO-and-32ch-TTL
Features
- 32-ch isolated DI/O (16-ch digital input, 16-ch digital output)
- 32-ch TTL DI/O (16-ch digital input,16-ch digital output)
- High output driving capacity
- Interrupt handling capability
- 2x 20-pin connectors for isolated DI/O channels and 2 for TTL DI/O channels
- D-type connector for isolated input and output channels
- High-voltage isolation on output channels (2,500 VDC)
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1730/file/PCIE-1730_1730H_DS(093022)20220930171212.pdf
Specifications
Digital Input
Channels
16
Compatibility
5 V/TTL
Input Voltage
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Interruptible Channels
PCIE-1730H: 16
Isolated Digital Input
Channels
16
Input Voltage
Logic 0: 3 V max.
Logic 1: 10 V min. (30 V max.)
Interruptible Channels
PCIE-1730H: 16
Isolation Protection
2,500 VDC
Response Time
100µs
Input Resistance
2.7 kW @ 1 W
Digital Output
Channels
16
Compatibility
5 V/TTL
Output Voltage
Logic 0: 0.5V max.
Logic 1: 2.4V min.
Output Capability
Sink: 24mA @ 0.5V
Source: 15mA @ 2.4V
Isolated Digital Output
Channels
16
Output Type
Sink type (NPN)
Isolation Protection
2,500 VDC
Output Voltage
5 ~ 40 VDC
Sink Current
500 mA max./channel
Response Time
100µs
General
Bus Type
PCI Express V1.0
I/O Connectors
1 x DB37, female
4 x 20-pin box header
Dimensions (L x H)
168 x 100 mm (6.6" x 3.9")
Power Consumption
Typical:3.3 V @ 280 mA, 12 V @ 330 mA
Max.: 3.3 V @ 420 mA, 12 V @ 400 mA
Operating Temperature
0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature
-25 ~ 85 °C (-13 ~ 185 °F)
Storage Humidity
5 ~ 95% RH, non-condensing
