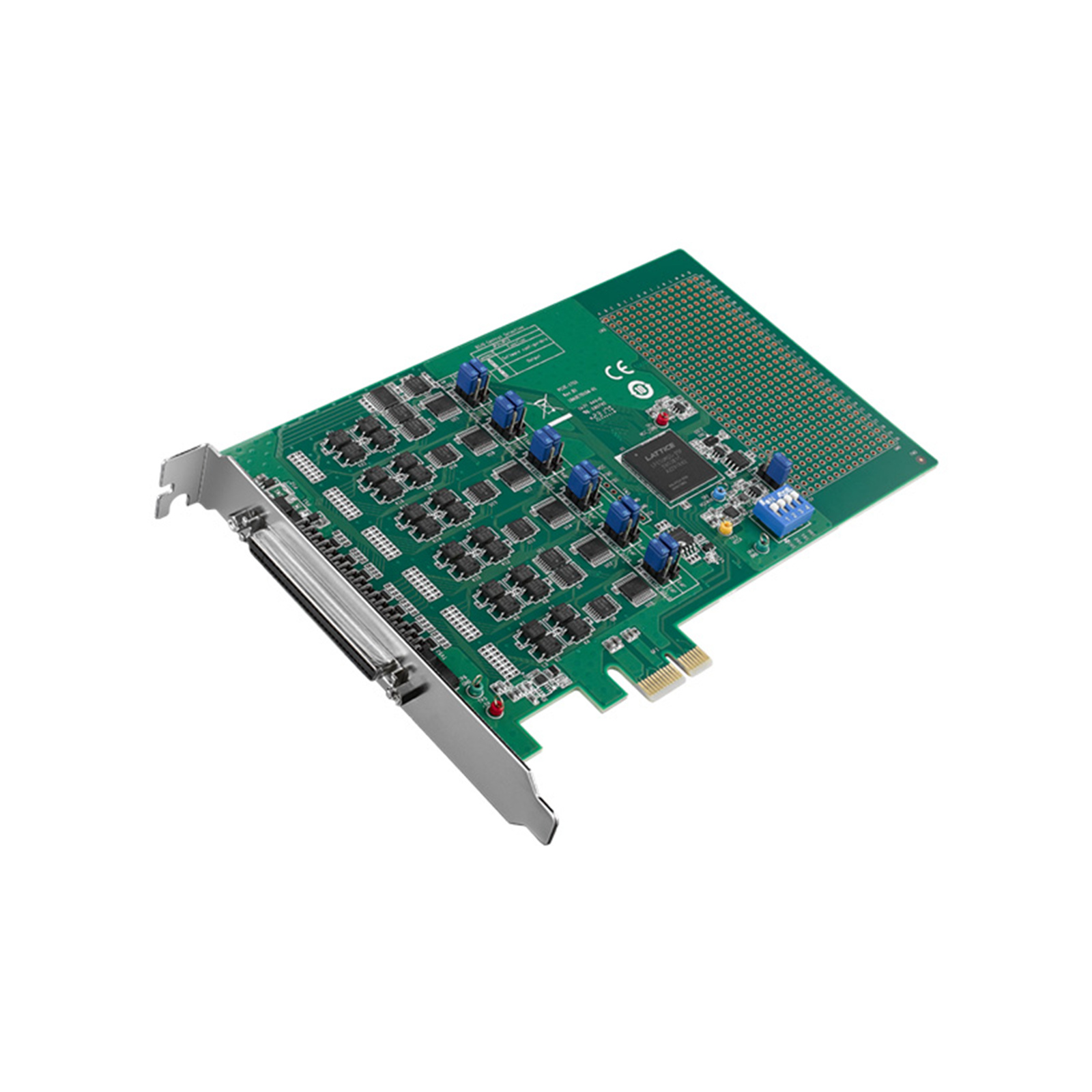

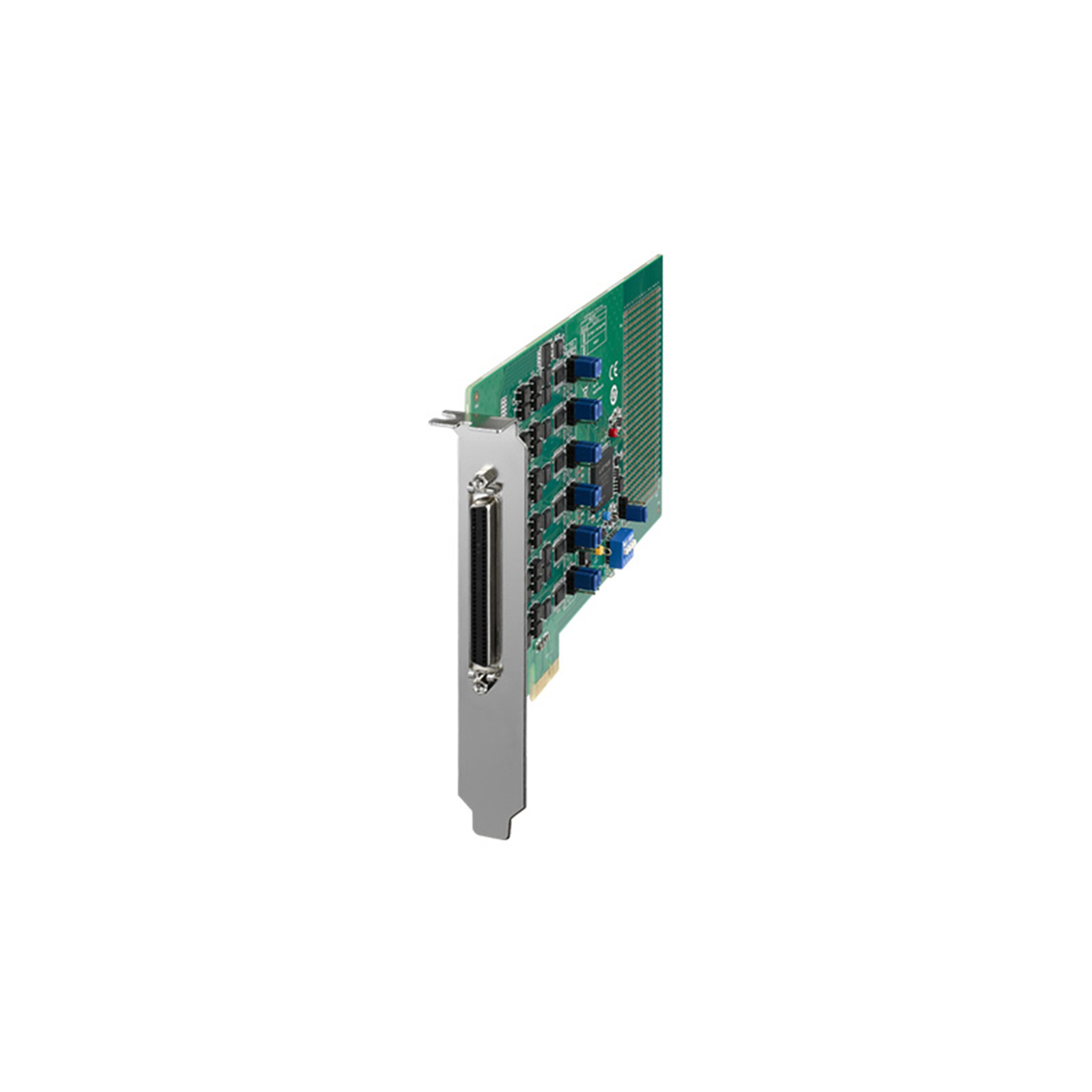

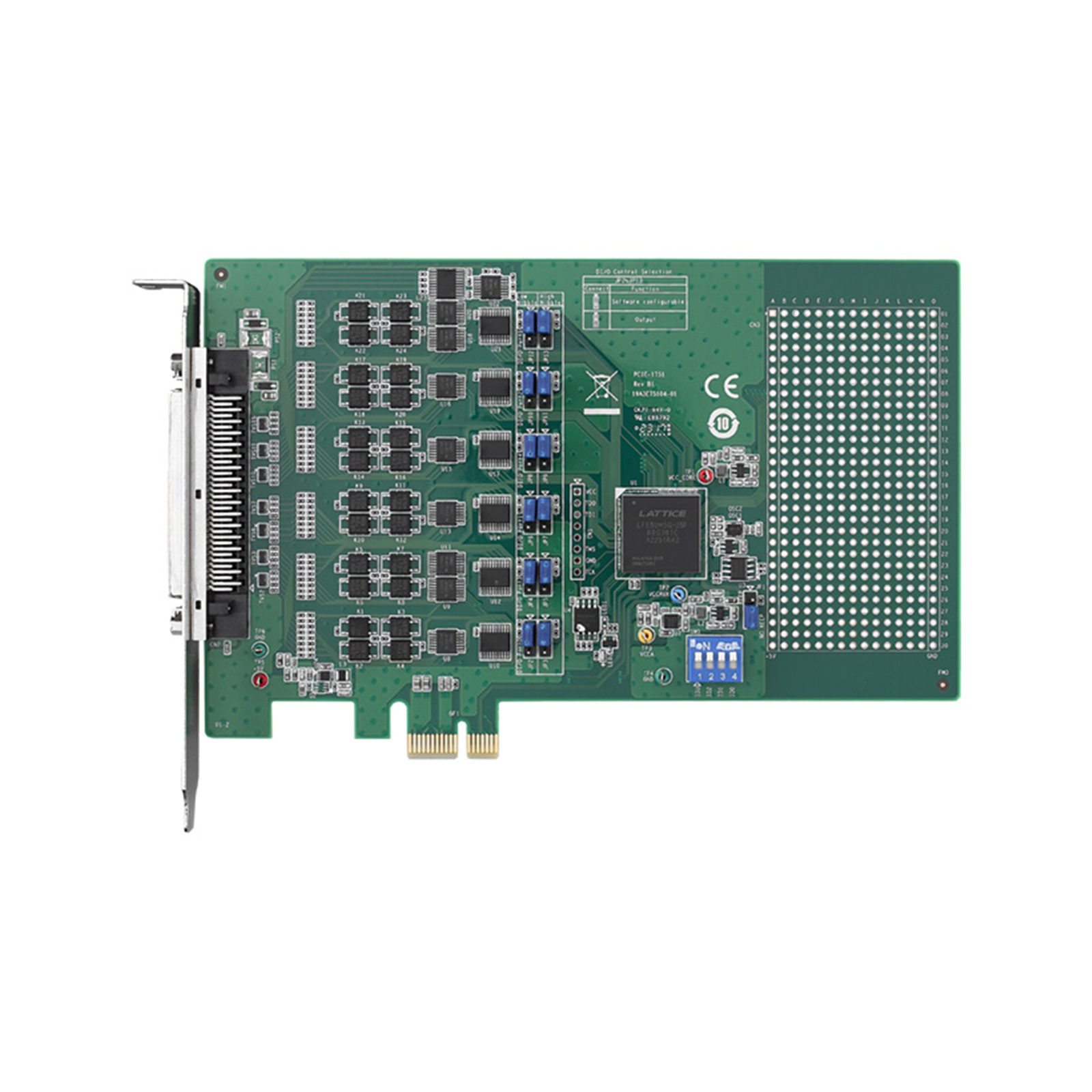

Advantech PCIE-1751-B 48-ch Digital I/O and 3-ch Counter PCI Express
- Brand: Advantech
- MPN: PCIE-1751-B
- Part #: IPCAVH221077

Product URL: https://www.pbtech.com/product/IPCAVH221077/Advantech-PCIE-1751-B-48-ch-Digital-IO-and-3-ch-Co
Features
48-ch Digital I/O and 3-ch Counter PCIE Card
- 48 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI (every port with nibble)
- Supports both dry and wet contact
- Interrupt handling capability
- Timer/Counter interrupt capability
- Buffered circuits for higher driving capacity than the 8255
- Keeps the I/O port setting and DO state after system reset
- BoardID switch
- Pattern match interrupt function for DI
- Change of state interrupt function for DI
- Programmable digital filter function for DI
Specifications
Counter/Encoder Input
Channels
3
Counting Range
32-bit
Digital Input
Channels
48 (TTL)
Digital Output
Channels
48 (TTL)
General
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
