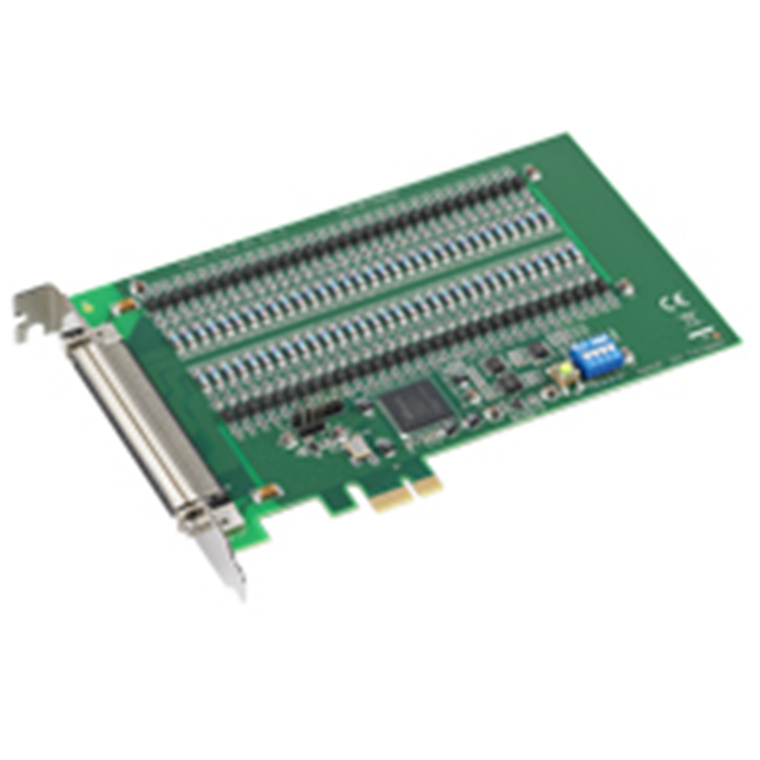

Advantech PCIE-1754-AE 64-ch Isolated Digital Input PCIE Card
- Brand: Advantech
- MPN: PCIE-1754-AE
- Part #: IPCAVH221081

Product URL: https://www.pbtech.com/product/IPCAVH221081/Advantech-PCIE-1754-AE-64-ch-Isolated-Digital-Inpu
Features
Advantech PCIE-1754-AE 64-ch Isolated Digital Input PCIE Card
- Wide input range (10 ~ 30 VDC)
- Either +/- voltage input for DI by group
- High overvoltage protection (70 VDC)
- High-voltage isolation (2,500 VDC)
- Output status read back
- Retains the output settings and values after system hot reset
- Channel-freeze function
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1752/Product%20-%20Datasheet/PCIE-175220180910101827.pdf
Specifications
Isolated Digital Input
Channels
PCIE-1754:64
Input Voltage
Logic: 03 V max.
Logic: 110 V min. (30 VDC max.)
Input Current
10 VDC @ 2.97 mA
20 VDC @ 6.35 mA
30 VDC @ 9.73 mA
Interruptible Channels
PCIE-1754: 4
Isolation Protection
2,500 VDC
Overvoltage Protection
70 VDC
ESD Protection
2,000 VDC
Opto-Isolator Response
50 µs
General
Bus Type
PCI Express V1.0
I/O Connectors
1 x 100-pin SCSI, female
Dimensions (L x H)
168 x 100 mm (6.6" x 3.9")
Power Consumption
PCIE-1754
Typical3.3 V @ 285 mA
Max.3.3 V @ 330 mA
Operating Temperature
0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature
-20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity
5 ~ 95% RH, non-condensing
