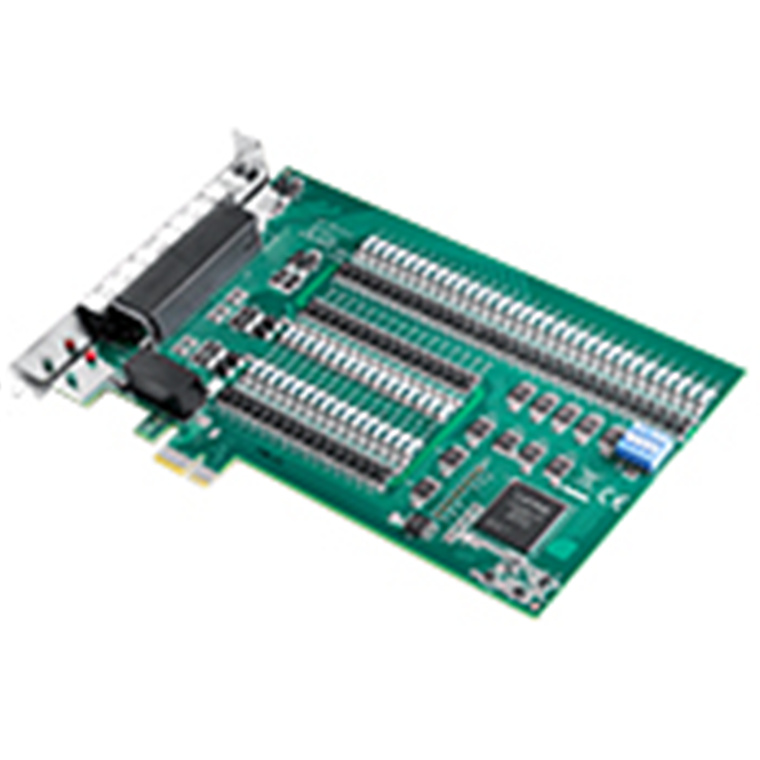

Advantech PCIE-1758DO-AE 128-ch Isolated Digital Output PCIE Card
- Brand: Advantech
- MPN: PCIE-1758DO-AE
- Part #: IPCAVH221088

Product URL: https://www.pbtech.com/product/IPCAVH221088/Advantech-PCIE-1758DO-AE-128-ch-Isolated-Digital-O
Features
Advantech PCIE-1758DO-AE 128-ch Isolated Digital Output PCIE Card
- 128 isolated digital output channels (64 channels for PCIE-1758DIO)
- High-voltage isolation on output channels (2,500 VDC)
- Wide output range (5 ~ 40 VDC)
- High-sink current for isolated output channels (350 mA max./channel)
- BoardID™ switch
- Digital output value retained after hot system reset
For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1758/file/PCIE-1758DI_DO_DIO_DS(080524)20240805174728.pdf
Specifications
Environment
Operating Temperature
0 ~ 60°C (32 ~ 140°F) (IEC 68-2-1, 2)
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Storage Humidity
5 ~ 95% non-condensing
General
Bus Type
PCI Express x1
I/O Connectors
2 x mini-SCSI female connector
Dimensions (L x H)
168 mm x 100 mm (6.6" x 3.9")
Programming Language
C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt
Digital Input
Channels
-
Isolation Protection
-
Digital Output
Channels
128 (Isolated)
Isolation Protection
2,500 VDC
