Advantech PCIE-1763DH-AE 16-ch SSR Output(DC) and 16-ch Isolated Digital Input PCIE Card

Normally $412.93

You save $12

AUD $ 400 .24

$ 400 .24

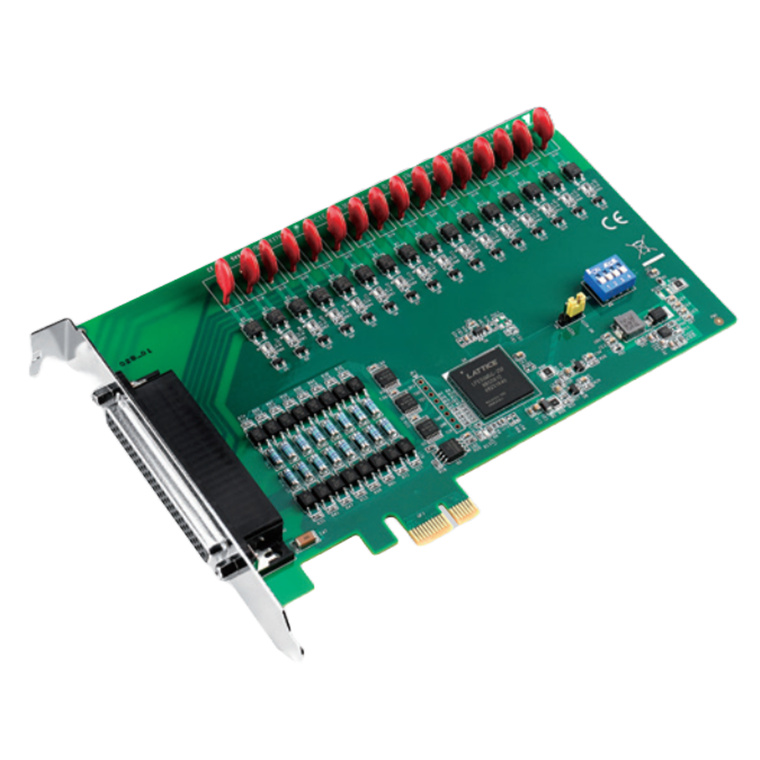

Advantech PCIE-1763DH-AE 16-ch SSR Output(DC) and 16-ch Isolated Digital Input PCIE Card

Brand: Advantech
MPN: PCIE-1763DH-AE
Part #: IPCAVH221093
UPC:

Normally $412.93

You save $12

PB Tech price

AUD $ 400 .24

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCIE-1763DH-AE
Part #: IPCAVH221093
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 16-ch solid-state relay (SSR) output with longer lifetime and higher operating speed compared to electro-mechanical relays
- Zero-crossing (synchronous) trigger for reduced inrush current and electrical noise
- 16-ch photoMOS relay output with longer lifetime and higher operating speed compared to electro-mechanical relays
- Much less contact problems such as arcs, bounce, and noise
- Suitable for both AC and DC applications with frequent ON/OFF switching
- LEDs for output state indication
- 16-ch isolated digital input (IDI) with both dry and wet contact configurations
- Interrupt capability for all IDI channels
- Programmable duration noise filter for all IDI channels

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1763/file/PCIE-1763AH_DH_DS(021120)20200618144559.pdf

Specifications

MPN

PCIE-1763DH-AE
16-ch Solid-State Relay Output(for DC) and 16-ch isolated digital input w/ digital filter & interrupt PCIe card

Solid-State Relay Output

Channels

Relay type

PhotoMOS SPST (form A)

Load voltage

60 VDC max.

Load current

1.2 A max.

Turn-on time

1.0 ms typ.

Turn-off time

0.6 ms typ.

Isolation protection

1,500 VDC max.

Isolated Digital Input

Channels

Input voltage

Logic 0: 3 V max. (0 V min.)
Logic 1: 10 V min. (30 V max.)

Input resistance

2.7 kO

Interrupt capability

All channels

Noise filter

8 µs ~ 131 ms programmable for all channels

Opto-isolator response

50 µs typ./100 µs max.

Isolation protection

2,500 VDC max.

General

Interface

PCI Express x1

I/O Connector type

1 x DB62 female connector

Dimensions

168 x 100 mm (6.6" x 3.9")

Power consumption

Typical: 3.3V @350mA, 12V @350mA
Max: 3.3V@ 370mA, 12V @ 1000mA

Operating temperature

0 ~ 60°C (32 ~ 140°F)

Storage temperature

-20 ~ 70°C (-4 ~ 158°F)

Storage humidity

5 ~ 95% RH (non-condensing)

Certifications

CE/FCC

Manufacturer Part No:

PCIE-1763DH-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221093

Product Model:

PCIE-1763DH-AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
