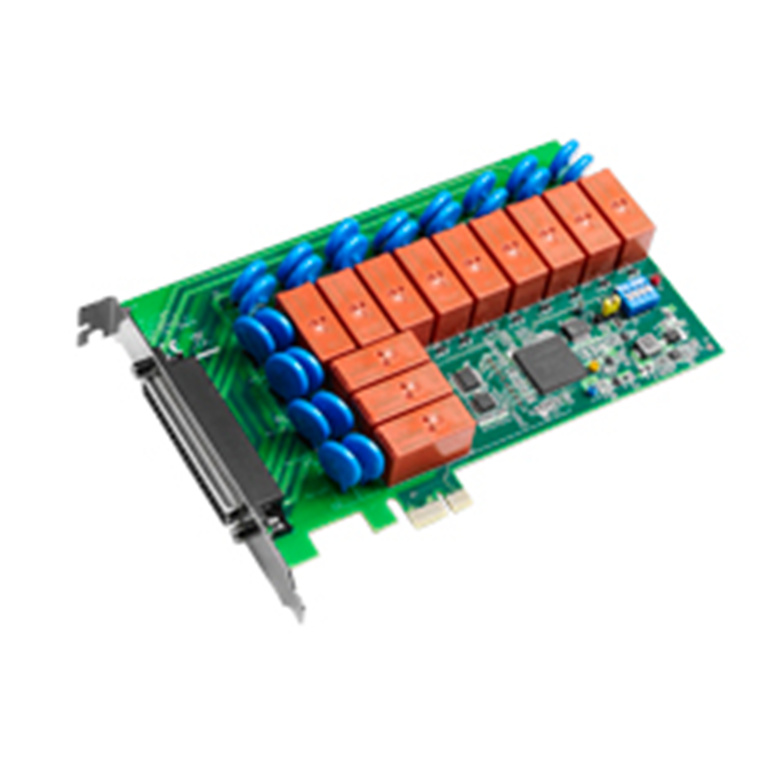

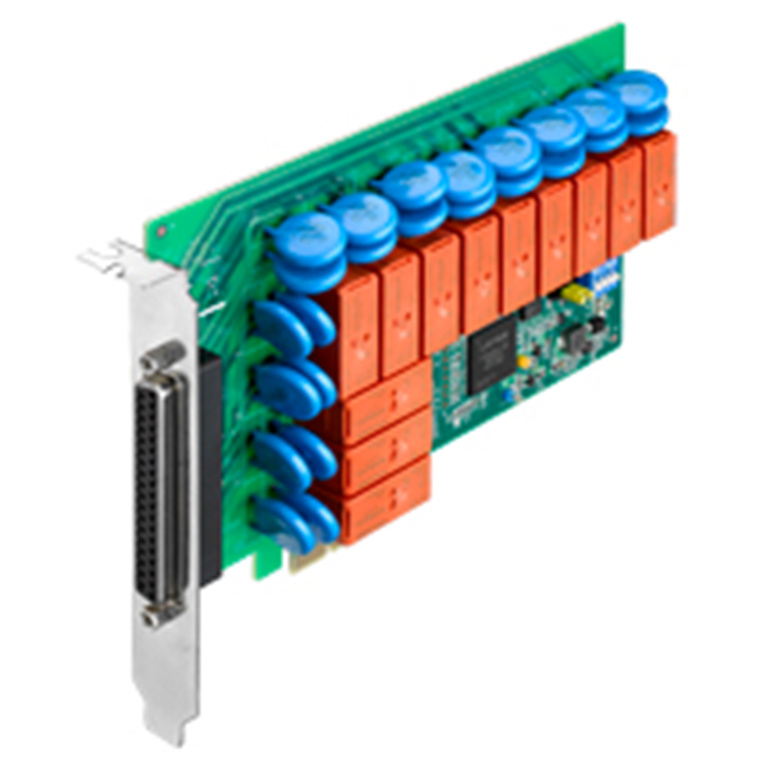

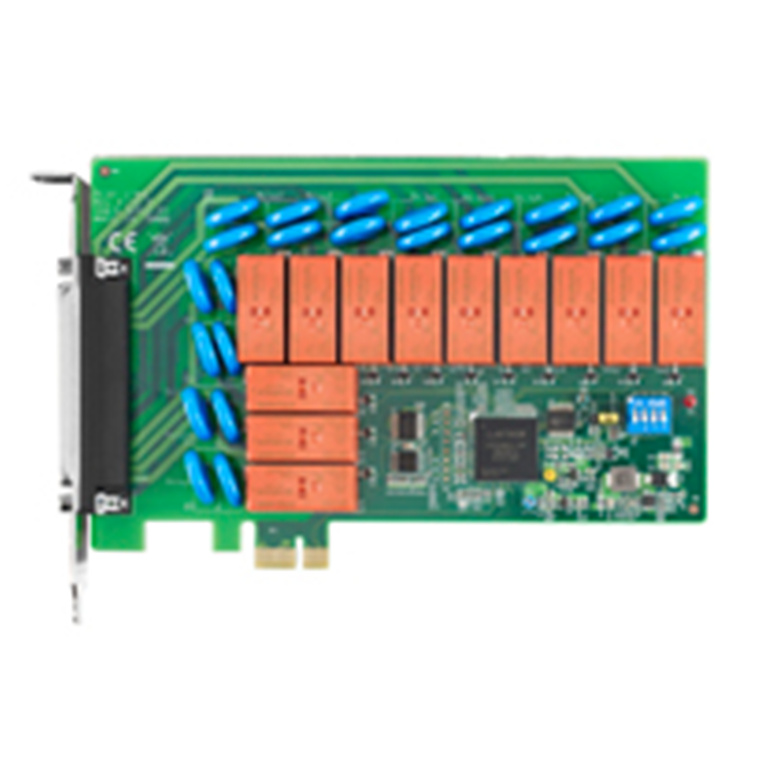

Advantech PCIE-1765-AE 12-ch Relay PCIE Card

Normally $327.56
Normally $327.56
You save $10
You save $10
AUD $ 317 .49
$ 317 .49
$317.49  +GST
$317.49

Advantech PCIE-1765-AE 12-ch Relay PCIE Card

  • Brand: Advantech
  • MPN: PCIE-1765-AE
  • Part #: IPCAVH221094
  • UPC:
Normally $327.56
Normally $327.56
You save $10
You save $10
PB Tech price
AUD $ 317 .49 $ 317 .49


Delivery: Order now and it ships on 30 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$317.49  +GST
$317.49

Features

- 12 relay output channels
- LED indicators to show activated relays
- 12 Form C-type relay output channels
- Output status read-back
- Keep relay output values after emergency reboot

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1765/Product%20-%20Datasheet/PCIE-1765_DS(07.04.19)20190708182921.pdf

Specifications

MPN

PCIE-1765-AE
12-ch Relay PCIe Card

Relay Output

Channels

12

Relay Type

SPDT , Form C

Contact Rating

2A @ 250 VAC , 2A @ 30 VDC

Max. switching power

500VA, 60W

Max. switching voltage

400 VAC, 30 VDC

Breakdown voltage

1000 VAC

Operate Time

Typical: 7ms

Release Time

Typical: 2ms

Resistance

Contact: 100m Ohm max.

Life Expectancy

30 x 106 cycles min. @ 2A/250 VAC

General

I/O Connectors

1 x DB37 female connector

Dimensions (L x H)

168 x 100 mm (6.6" x 3.9")

Power Consumption

Typical: 3.3V @ 250mA
Max. : 3.3V @ 2500mA

Operating Temperature

0 ~ 60°C (32 ~ 140°F)

Storage Temperature

-20 ~ 70°C (-4 ~ 158°F)

Storage Humidity

5 ~ 95 % RH, non-condensing

Manufacturer Part No:
PCIE-1765-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221094
Product Model:
PCIE-1765-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
