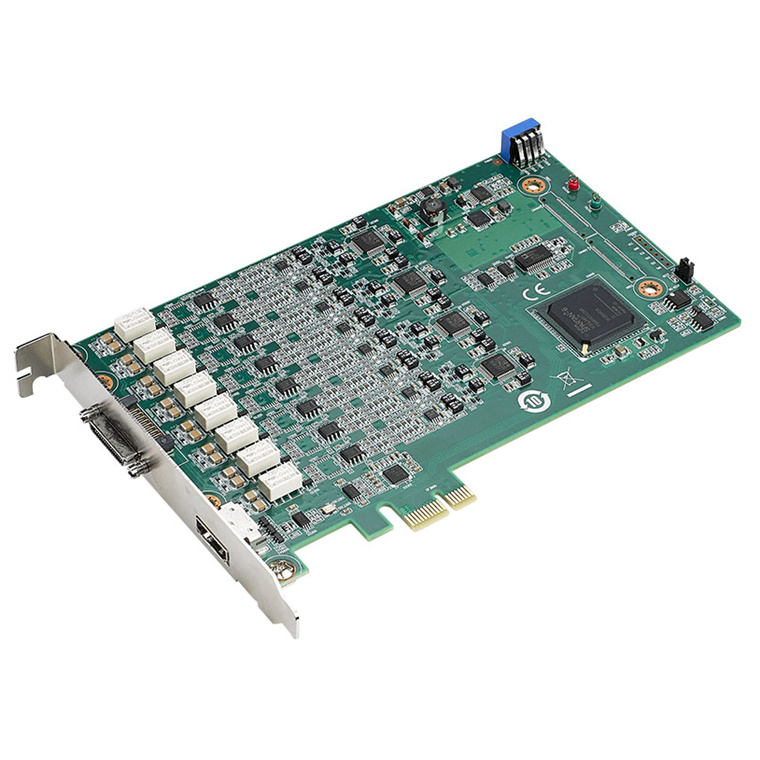

Advantech PCIE-1802L-AE 216 kS/s, 24-bit, 4-ch Dynamic Signal Acquisition PCIE Card

Brand: Advantech
MPN: PCIE-1802L-AE
Part #: IPCAVH221096
UPC:

Normally $3,436.89

You save $105

PB Tech price

AUD $ 3,331 .29

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCIE-1802L-AE
Part #: IPCAVH221096
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 8/4 simultaneously sampled analog inputs, up to 216 kS/s
- 24-bit resolution ADCs with 115 dB dynamic range
- Wide input range of ±0.2 ~ 10 V
- Built-in anti-aliasing filter
- Software-configurable 4/10 mA integrated electronic piezoelectric (IEPE) excitation currents
- Software-selectable AC/DC coupling
- Full automatic calibration
- Multiple card synchronization

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1802/file/PCIE-1802_L_DS(010720)20200115172635.pdf

Specifications

MPN

PCIE-1802L-AE
4-ch, 24-bit, 216 kS/s dynamic signal acquisition PCI Express card

Analog Input

Channels

4 (simultaneous sampling differential or 50 O pseudo-differential)

Resolution

24 bits (delta sigma)

Max. Sampling Rate

100 S/s to 216 kS/s (with resolution = 363.80 µS/s)

Input Coupling

AC/DC, selectable per channel

AC Cut-Off Frequency

0.727 Hz (-3 dB)

Trigger Modes

Start, Delayed Start,
Stop, Delayed Stop

Input Range

±0.2, ±0.5, ±1, ±2, ±5, ±10 V

Offset Error

< ±1 mV

Gain Error

< ±0.2 %

Total Harmonic Distortion (THD)

-100 dB

Total Harmonic Distortion Plus Noise (THD+N)

-98 dB

Dynamic Range

115 dB

IEPE Excitation

0, 4, or 10 mA, selectable per channel

Data Transfer

Direct memory access (DMA)

Multi-Card Support

For synchronizing more than 8 analog input channels

Digital Input/Output

DI Channels

1 (interrupt)

DO Channels

General

Bus Type

PCI Express x1

I/O Connectors

CN600 36-pin mini SCSI (for analog input)
CN601 HDMI (for clock, trigger, and DI/Os)

Dimensions (L x H)

168 x 100 mm (6.6" x 3.9")

Operating Temperature

0 ~ 60 °C (32 ~ 140 °F)

Storage Temperature

-40 ~ 70 °C (-40 ~ 158 °F)

Storage Humidity

5 ~ 95 % RH, non-condensing

Manufacturer Part No:

PCIE-1802L-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221096

Product Model:

PCIE-1802L-AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
