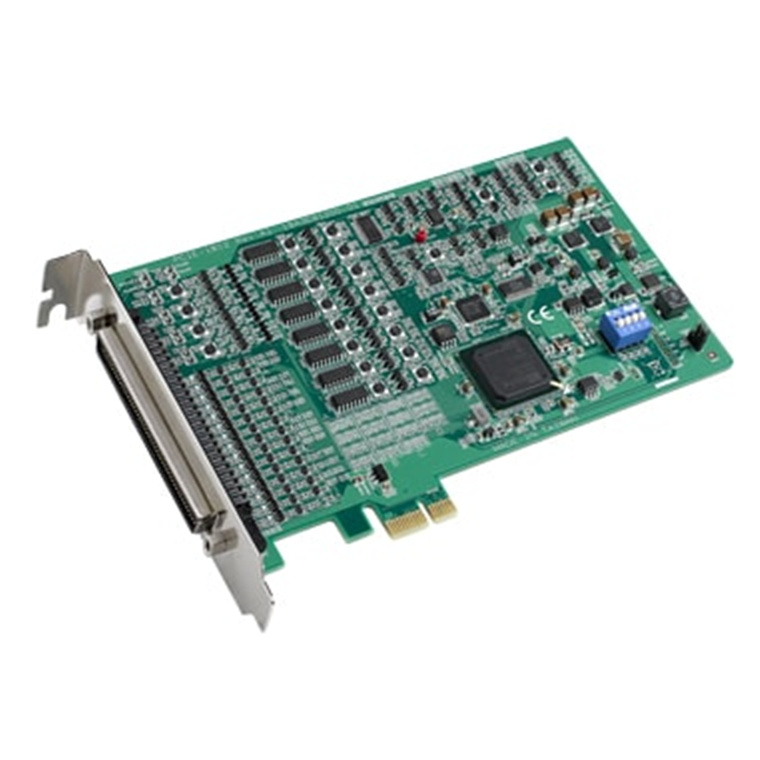

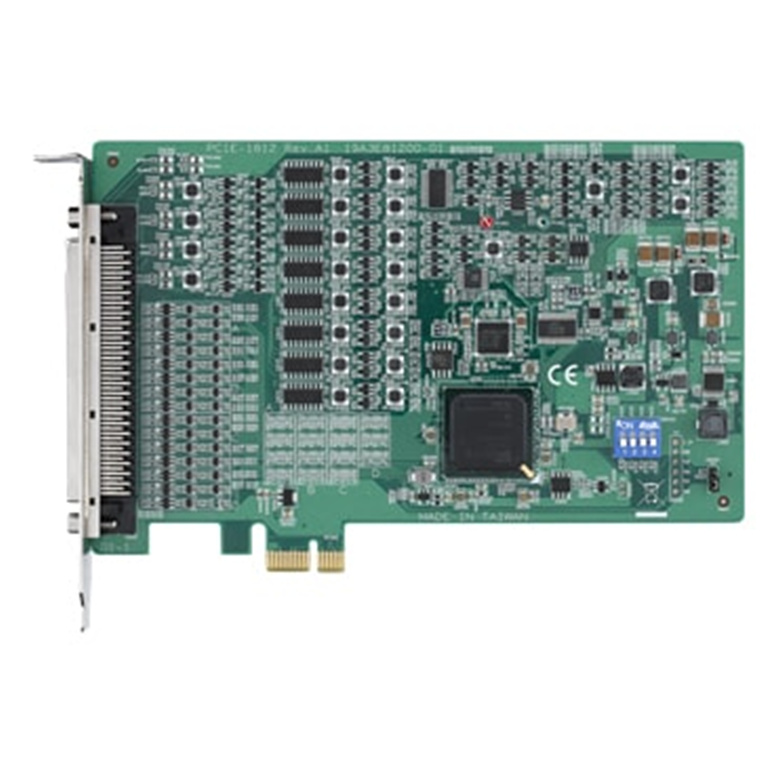

Advantech PCIE-1812-AE 250kS/s/ch, 16-bit, 8-ch, Multifunction PCIE Card

PB Tech price

AUD $ 1,678 .51

$ 1,678 .51

Advantech PCIE-1812-AE 250kS/s/ch, 16-bit, 8-ch, Multifunction PCIE Card

Brand: Advantech
MPN: PCIE-1812-AE
Part #: IPCAVH221100
UPC:

PB Tech price

AUD $ 1,678 .51

In stock at Supplier

Delivery: Order now and it ships on 15 Jul

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PCIE-1812-AE
Part #: IPCAVH221100
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- 8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution
- 2 analog outputs, up to 3 MS/s, 16-bit resolution
- Full auto-calibration
- 2 analog triggers and 2 digital triggers for AI/O
- 32 programmable DI/Os with interrupt functions
- Four 32-bit programmable counters/ timers/ encoders
- Board ID switch
- Support for Microsoft Windows 10, 8 and 7

For more information: https://advdownload.advantech.com/productfile/PIS/PCIE-1812/Product%20-%20Datasheet/PCIE-1812_DS(01.16.19)20190116154024.pdf

Specifications

MPN

PCIE-1812-AE
250 kS/s, 16-bit, 8-ch simultaneous sampling multifunction card

Analog Input

Channels

Input Range

±0.625 V, ±1.25 V, ±2.5 V, ±5 V, ±10 V, 0~1.25 V, 0~2.5 V, 0~5 V, 0~10 V

Resolution(Bits)

16-bit

Sampling Rates(S/s)

250 KS/s (per channel)

Analog Output

Channels

Output Ranges

0~5 V, 0~10 V, ±5 V, ±10 V

Resolution

16-bit

Update Rate(S/s)

3 MS/s

Counter/Encoder Input

Channels

Counting Range

32-bit

Mode

Counter (up/down, bi-direction, up, A/B Phase)

Digital Input

Channels

32 (TTL)

Digital Output

Channels

32 (TTL)

General

Programming Language

C#, C++, LabVIEW, VB.Net, BCB, MFC, VB6, Delphi, Java, Matlab, Qt

Manufacturer Part No:

PCIE-1812-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221100

Product Model:

PCIE-1812-AE

Warranty: 12 months *
