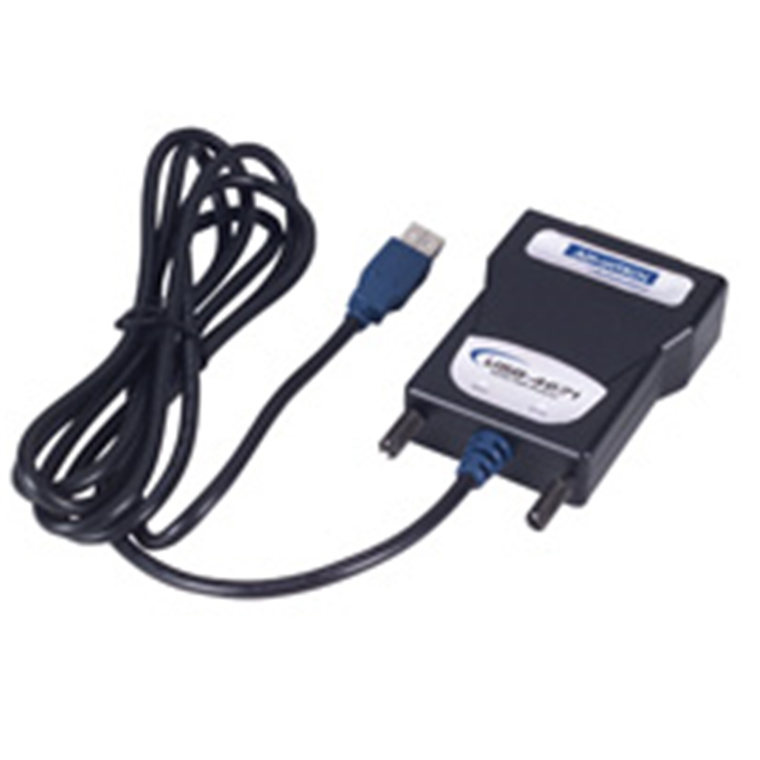

Advantech USB-4671-A GPIB USB Module
- Brand: Advantech
- MPN: USB-4671-A
- Part #: IPCAVH221189
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech USB-4671-A GPIB USB Module
- Brand: Advantech
- MPN: USB-4671-A
- Part #: IPCAVH221189

Product URL: https://www.pbtech.com/product/IPCAVH221189/Advantech-USB-4671-A-GPIB-USB-Module
Features
- Supports USB 2.0
- Convenient portable design
- Bus-powered
- Complete IEEE 488.1 & 488.2 compatibility
- Full driver, library, and example support, including; Visual C++®, Visual C#®, Visual Basic®, Visual Basic .NET®, Delphi®, and LabView
- Provides powerful and easy-to-use configuration utility
- No GPIB cable required for instrument connection
- Plug & Play installation and configuration
- Support industrial standard VISA
For more information: https://advdownload.advantech.com/productfile/PIS/USB-4671/file/USB-4671_DS(090219)20190902162741.pdf
Specifications
MPN
USB-4671-A
GPIB USB Module
GPIB
Compatibility
IEEE 488.1 & IEEE 488.2
GPIB Transfer Rate
1.8 MB/s
OS Support
Windows 2000/XP/Vista/7/10
Library Support
Visual C++, Visual C#, Visual Basic, Visual Basic .NET, Delphi, LabView
Max. GPIB Connections
15
General
Bus Type
USB 2.0
I/O Connector
1 x 24-pin IEEE 488
Storage Temperature
-20 ~ 70°C (-4 ~ 158°F)
Operating Humidity
10 ~ 90% RH, non-condensing
Dimensions (L x W x H)
107 x 66 x 26 mm (4.21" x 2.6" x 1.02")
