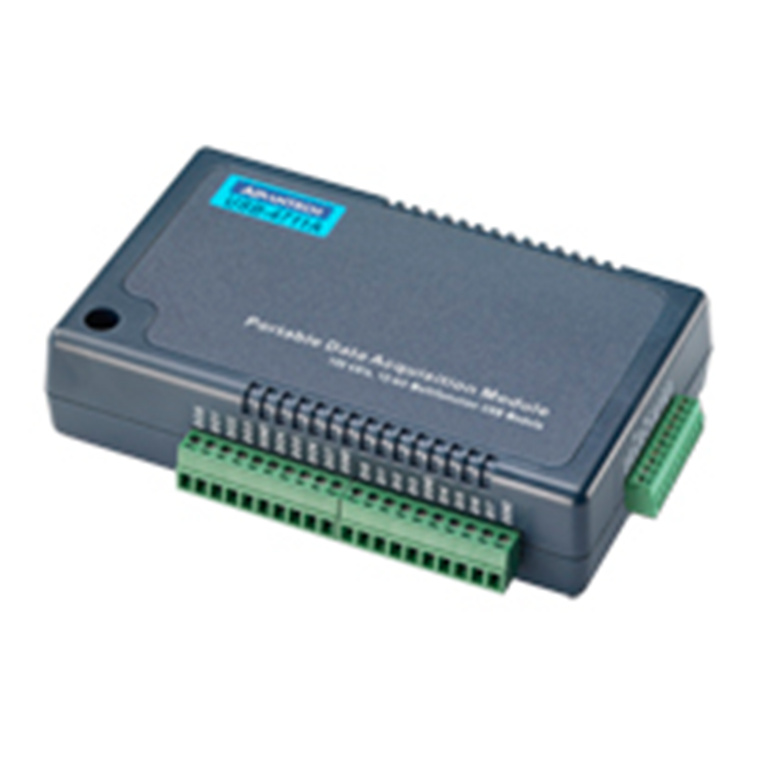

Advantech USB-4711A-BE 150KS/s, 12-bit USB Muntifunction Module

Normally $526.30

You save $16

AUD $ 510 .12

$ 510 .12

Advantech USB-4711A-BE 150KS/s, 12-bit USB Muntifunction Module

Brand: Advantech
MPN: USB-4711A-BE
Part #: IPCAVH221192
UPC:

Normally $526.30

You save $16

PB Tech price

AUD $ 510 .12

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: USB-4711A-BE
Part #: IPCAVH221192
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- Supports USB 3.0 SuperSpeed
- Portable
- Bus powered
- 16 x Analog input channels
- 12-bit resolution analog input
- Up to 150 kS/s sampling rate
- 8-ch Digital input/8-ch digital output, 2-ch analog output, and 1 x 32-bit counter
- Detachable screw terminal on modules
- Suitable for DIN rail mounting
- 1 x Lockable USB cable included for connection security

For more information: https://advdownload.advantech.com/productfile/PIS/USB-4711A/file/USB-4711A_DS(121621)20211220135251.pdf

Specifications

MPN

USB-4711A-BE
150 kS/s, 12-bit, 16-ch multifunction DAQ USB module

Analog Input

Channels

16 Single ended/8 differential (software programmable)

Resolution

12 bits

Max. Sampling Rate

150 kS/s max.

FIFO Size

1,024 samples

Overvoltage Protection

30 Vp-p

Input Impedance

1 G?

Sampling Modes

Software, onboard programmable pacer, and external

Analog Output

Channels

Resolution

12 bits

Output Rate

Static update

Slew Rate

0.125 V/us

Driving Capability

5 mA

Output Impedance

0.1 ?

Operation Mode

Single output

Accuracy

Relative: ±1 LSB
Differential non-linearity: ±1 LSB

Digital Input

Channels

Compatibility

3.3 V/5 V/TTL

Input Voltage

Logic 0: 0.8 V max.
Logic 1: 2.0 V min.

Digital Output

Channels

Compatibility

3.3 V/TTL

Output Voltage

Logic 0: 0.4 V max.@ 6 mA
Logic 1: 2.6 V min.@ 6 mA

Event Counter

Channels

Compatibility

3.3 V/TTL

Max. Input Frequency

1 kHz

General

Bus Type

USB 3.0

I/O Connector

Onboard screw terminal

Dimensions (L x W x H)

132 x 80 x 32 mm (5.2" x 3.15" x 1.26")

Power Consumption

Typical: 5 V @ 360 mA
Max.: 5 V @ 450 mA

Operating Temperature

0 ~ 60 °C (32 ~ 140 °F)

Storage Temperature

-20 ~ 70 °C (-4 ~ 158 °F)

Storage Humidity

5 ~ 95% RH non-condensing

Manufacturer Part No:

USB-4711A-BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221192

Product Model:

USB-4711A-BE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
