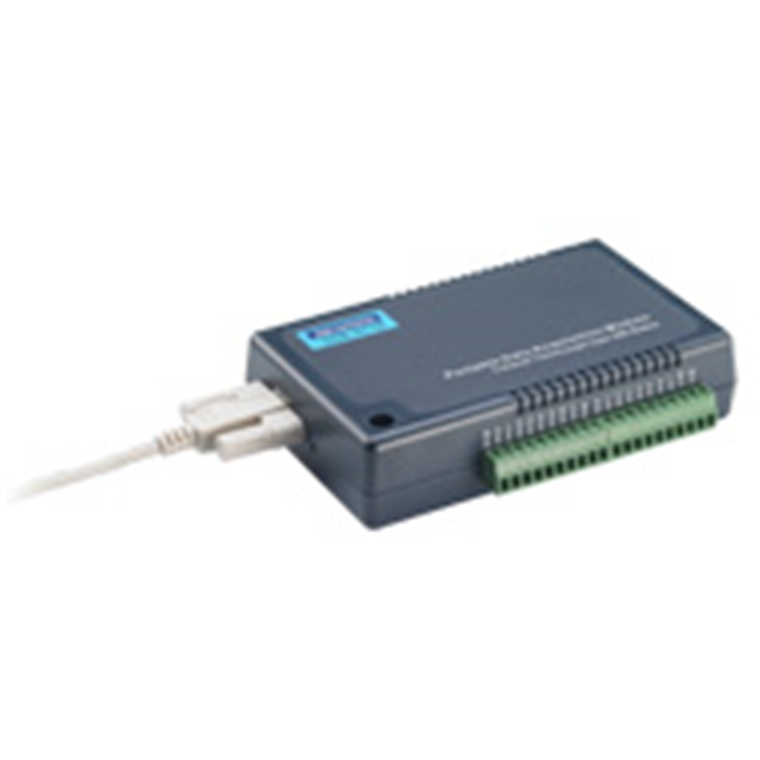

Advantech USB-4718-AE 8-ch Thermocouple Input USB Module with 8-ch Isolated Digital Input

Normally $512.72

You save $20

AUD $ 491 .80

$ 491 .80

Advantech USB-4718-AE 8-ch Thermocouple Input USB Module with 8-ch Isolated Digital Input

Brand: Advantech
MPN: USB-4718-AE
Part #: IPCAVH221194
UPC:

Normally $512.72

You save $20

PB Tech price

AUD $ 491 .80

In stock at Supplier

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: USB-4718-AE
Part #: IPCAVH221194
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- Supports USB 2.0
- Supports voltage, current, and thermocouple inputs
- Bus-powered
- 8 thermocouple input channels
- 2,500 VDC isolation
- Supports 4 ~ 20 mA current input
- Detachable screw terminal on modules
- 8-ch isolated DI and 8-ch isolated DO
- Suitable for DIN-rail mounting
- One lockable USB cable for secure connection included

For more information: https://www.ipc-systemes.com/documents/USB-4718_DS20110705175332.pdf

Specifications

MPN

USB-4718-AE
8-ch Thermocouple Input USB Module

Analog Input

Accuracy

±0.1% for voltage input

Bandwidth

13.1 Hz @ 50 Hz,
15.72 Hz @ 60 Hz

Channels

8 differential

Ch. Independent Conf.

Yes

Isolated Digital Input

Channels

Input Voltage

Logic 0: 2 V max.
Logic 1: 5 V min. (30 V max.)

Isolation Protection

2,500 VDC

Opto-isolator Response

25 µs

Isolated Digital Output

Channels

Output Type

Sink (NPN)

Isolation Protection

2,500 VDC

Output Voltage

5 ~ 30 VDC, 1.1 A max./ total

Sink Current

200 mA max./channel

Opto-isolator Response

25 µs

General

Bus Type

USB 2.0

I/O Connector

Onboard screw terminal

Dimensions (Lx W x H)

132 x 80 x 32 mm (5.2" x 3.15" x 1.26")

Power Consumption

100 mA @ 5 V

Watchdog Timer

1.6 sec. (system)

Operating Temperature

0 ~ 60° C (32 ~ 140° F) (refer to IEC 68-2-1, 2)

Storage Temperature

-20 ~ 70° C (-4 ~ 158° F)

Storage Humidity

5 ~ 95% RH non-condensing (refer to IEC 68-2-3)

Manufacturer Part No:

USB-4718-AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221194

Product Model:

USB-4718-AE

Warranty: 12 months *
