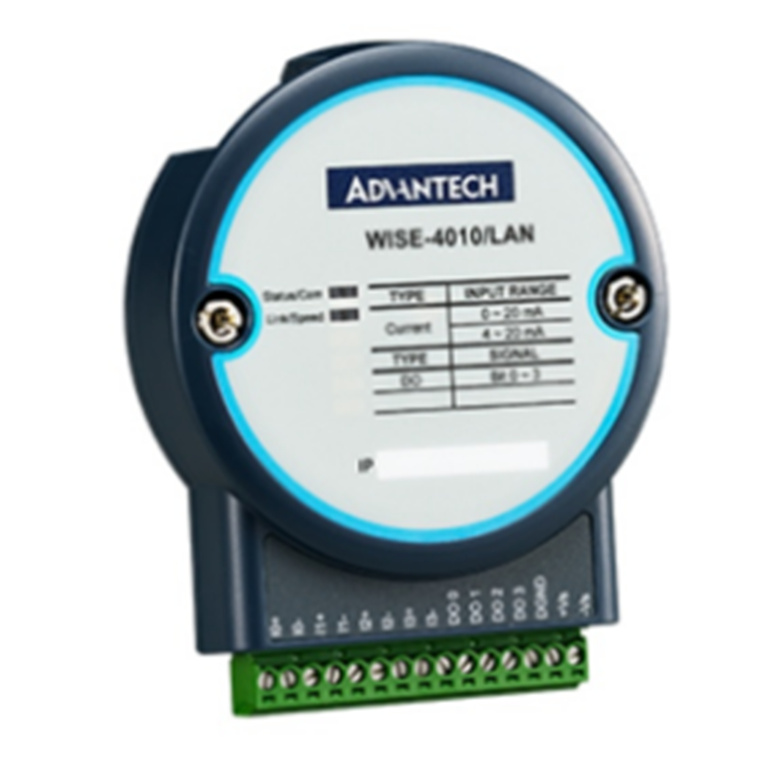

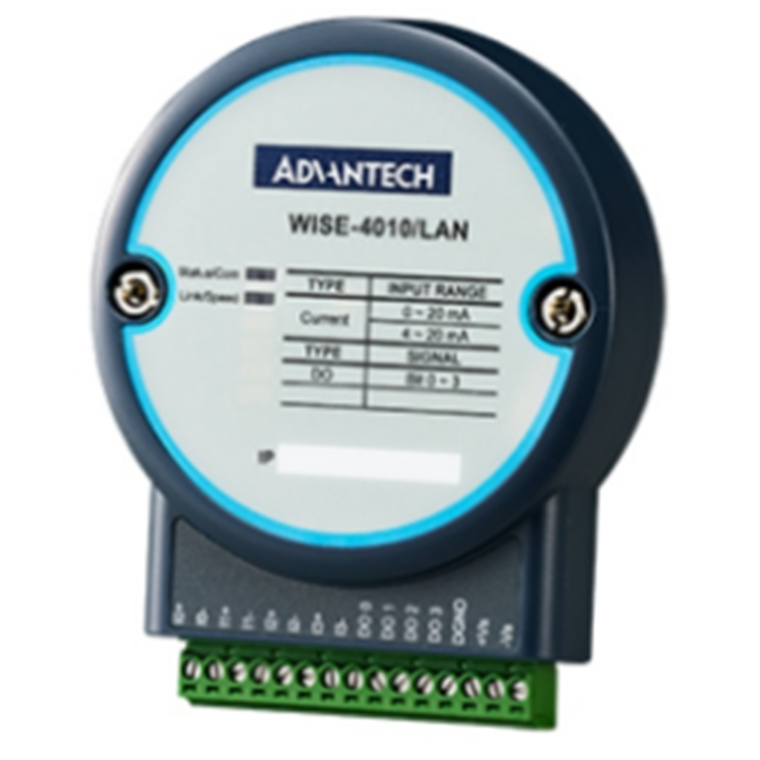

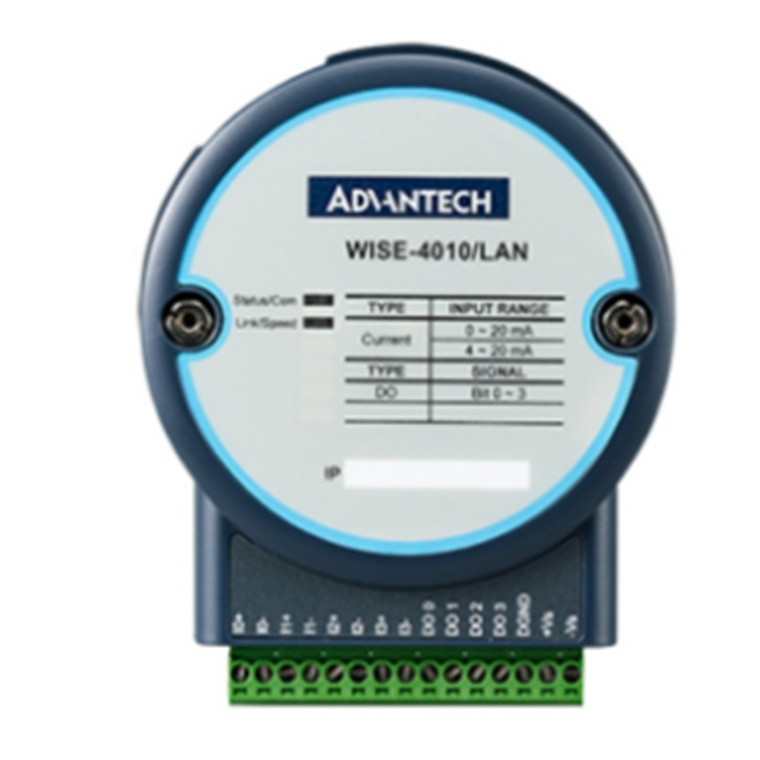

Advantech WISE-4010LAN-B 4-ch CI 4-ch DO IoT Ethernet I/O Module
- Brand: Advantech
- MPN: WISE-4010LAN-B
- Part #: IPCAVH221212

Product URL: https://www.pbtech.com/product/IPCAVH221212/Advantech-WISE-4010LAN-B-4-ch-CI-4-ch-DO-IoT-Ether
Features
- Supported protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
- Supports RESTful web API in JSON format
- Supports local logging with RTC time stamp
- Supports mobile device web configuration in HTML5
- Supports 10~30 VDC power with reverse protection
For more infomation: https://advdownload.advantech.com/productfile/PIS/WISE-4010LAN/file/DS_WISE-4000LAN-Series_(101421)20220217112124.pdf
Specifications
MPN
WISE-4010LAN-B
Analog Input
Channels
4
Input Range
0~20 mA, 4~20 mA
lnput Type
mA
Resolution(Bits)
12-bit
Sampling Rates(S/s)
10/100 S/s (per channel)
Communications
Interface
Ethernet
Digital Output
Channels
4 (TTL)
Voltage Rating
0~30 VDC
Environment
Operating Temperature
-40~70 °C (-40~158 °F)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
General
Connectors
1 x RJ45, 1 x 15-pin plug-in screw terminal
Protocol
Modbus/TCP, TCP/IP, UDP, HTTP, DHCP
Power Requirements
Input Voltage
10~30 VDC
