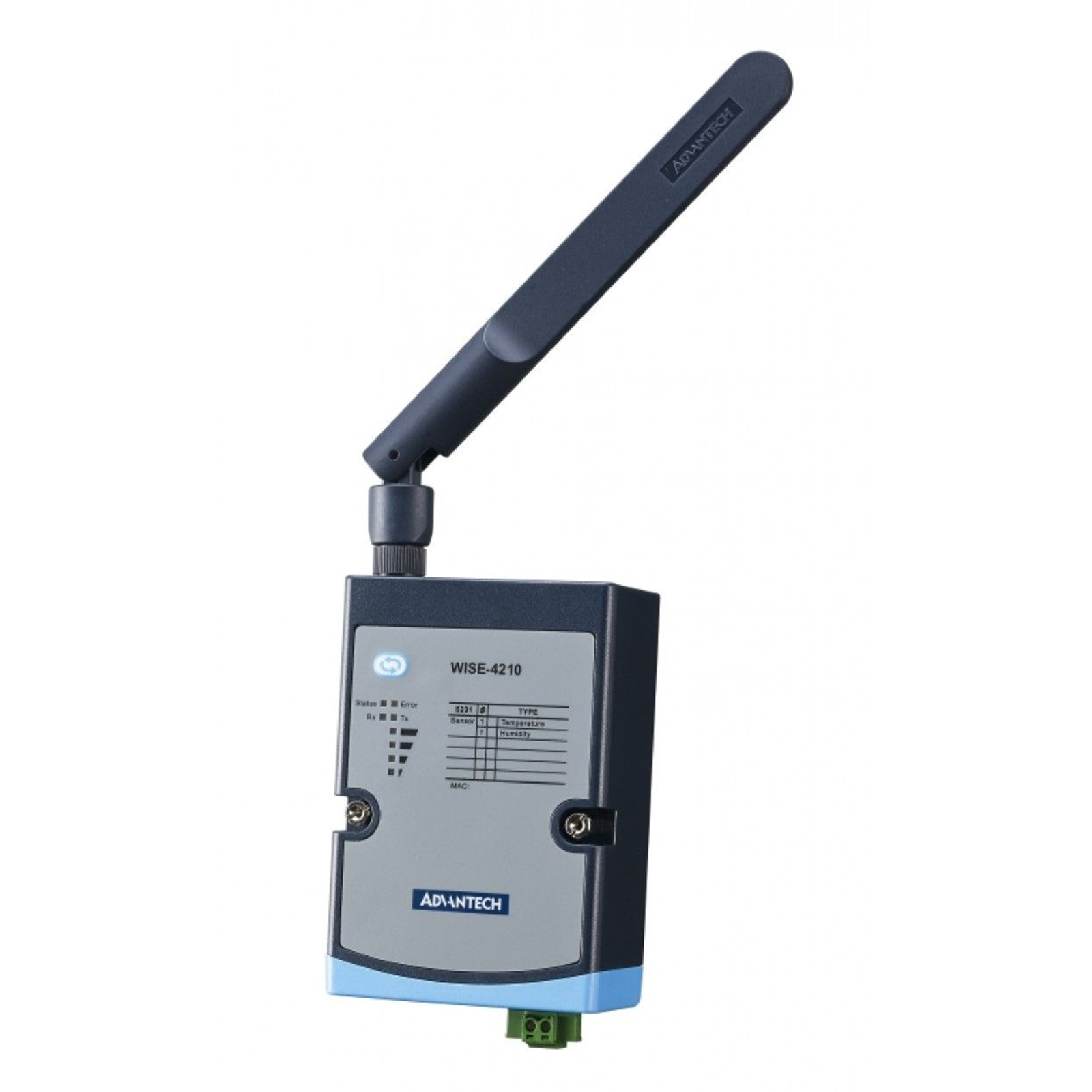

Advantech WISE-4210-S231NA Proprietary LPWAN IoT Wireless Module w/ Temperature & Humidity Sensor
- Brand: Advantech
- MPN: WISE-4210-S231NA
- Part #: IPCAVH221221

Product URL: https://www.pbtech.com/product/IPCAVH221221/Advantech-WISE-4210-S231NA-Proprietary-LPWAN-IoT-W
Features
Proprietary LPWAN IoT Wireless Module w/ Temperature & Humidity Sensor
- Proprietary LPWAN (Sub-G) wireless technology
- Supports MQTT & Modbus/TCP protocol
- Application-ready sensor solution
- Battery power for 5 years with 3 x 3.6V AA batteries
- Up to 5 km communication range in open space
Specifications
Communications
Data Transfer Rates
625 bps, 50 kbps
Environment
Operating Temperature
-25~70 °C (-13~158 °F)
Relative Humidity
5~95% RH (non-condensing)
Storage Humidity
0~95% RH (non-condensing)
Storage Temperature
-40~85 °C (-40~185 °F)
Hardware
Certification
CE, FCC Class A, IC, NCC, TELEC
LED Indicators
Status, Error, Tx, Rx, Battery/Signal Level
Power Consumption
0.1 W @ 24 VDC
Power Input
10~50 VDC
I/O Interface
USB Ports
1 x Micro-B USB
Mechanical
Dimension (W x H x D)
70 x 102 x 38 mm
Mounting
DIN-rail, Wall, Pole, Stack
Weight (Net)
0.5 kg
Power Requirements
Input Voltage
10~50 VDC
Thermocouple Input
Resolution
16-bit
Wireless Communication
Frequency Band
US 923 (MHz), EU 868 (MHz)
Standard (Technology)
Proprietary LPWAN
