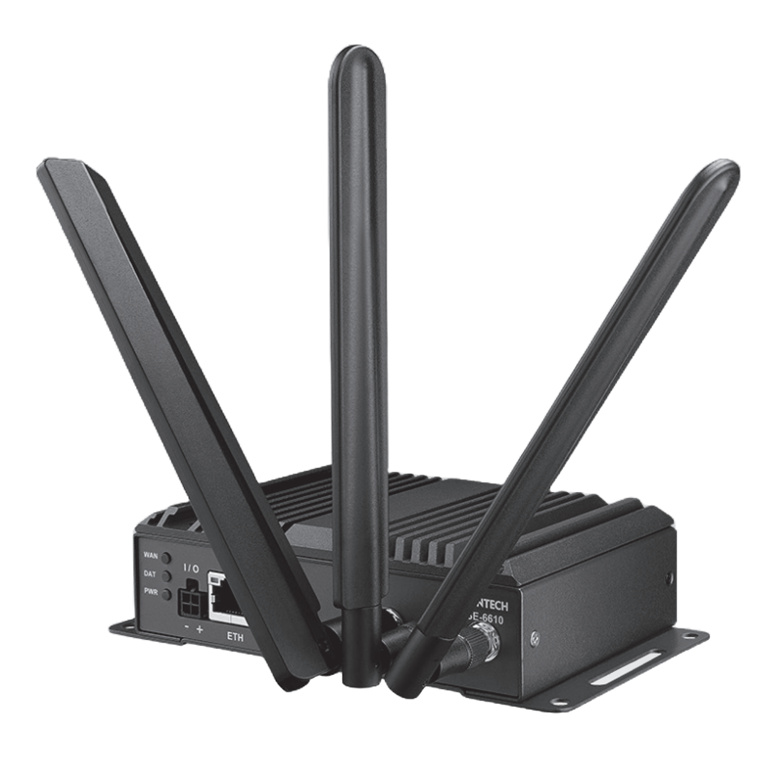

Advantech WISE-6610-A500-A Hardened LoRaWAN 8-Channel Gateway AS 923 MHz - Support 500 nodes
- Brand: Advantech
- MPN: WISE-6610-A500-A
- Part #: IPCAVH221228

Product URL: https://www.pbtech.com/product/IPCAVH221228/Advantech-WISE-6610-A500-A-Hardened-LoRaWAN-8-Chan
Features
- Long-range wide area IoT gateway
- LoRaWAN protocol for closed and public system application
- Ethernet and I/O for connecting a wide array of field assets
- DIN rail and wall mounting design
- Low power consumption for solar and battery power applications
- Enhanced memory for hosting customer software applications
- Redundancy-enhanced functions for continuous data transmission
Specifications
MPN
WISE-6610-A500-A
WSN Support
Standard
LoRaWAN
Frequency
868/915/923MHz
ANT Connector
RP-SMA Male connector x 1
LAN Interface
Ethernet
10/100 Mbps, auto MDI/MDIX
Connector
1 x RJ45
Protection
1.5-kV built-in magnetic isolation protection
Digital I/O
Port Type
1x Digital Input On Voltage: 2.7V to 36VDC
Port Connector
4-way Molex mini-fit connector
General
LED Indicators
PWR, DAT, WAN, ETH
Reboot Trigger
Reset button
Mechanics
Dimensions (W x H x D)
150 x 37.5 x 83 mm (5.9" x 1.48" x 3.27")
Mounting
DIN rail, wall
Weight
500g
Enclosure Rating
IP30
SD Card
1 x Micro SD Card Slot (WISE-6610-XXXXC Only)
Power Requirements
Power Input
9 ~ 36 VDC
Power Connector
4-way Molex mini-fit connector
Power Consumption
8.2W-9W (9-36VDC/1A)
Environment
Operating Temperature
-40 ~ 75°C
Storage Temperature
-40 ~ 85°C
Operating Humidity
10 ~ 95% RH
Regulatory Approvals
EMC EN61000-4-2, Level 3
EN61000-4-3, Level 3
EN61000-4-4, Level 3
EN61000-4-5, Level 3
EN61000-4-6, Level 3
EN61000-4-12, Level 3
EN61000-4-11, voltage dip: 70%
Shock
IEC 60068-2-27
Free Fall
IEC 60068-2-32
Vibration
IEC 60068-2-6
RF
FCC/RED/NCC
