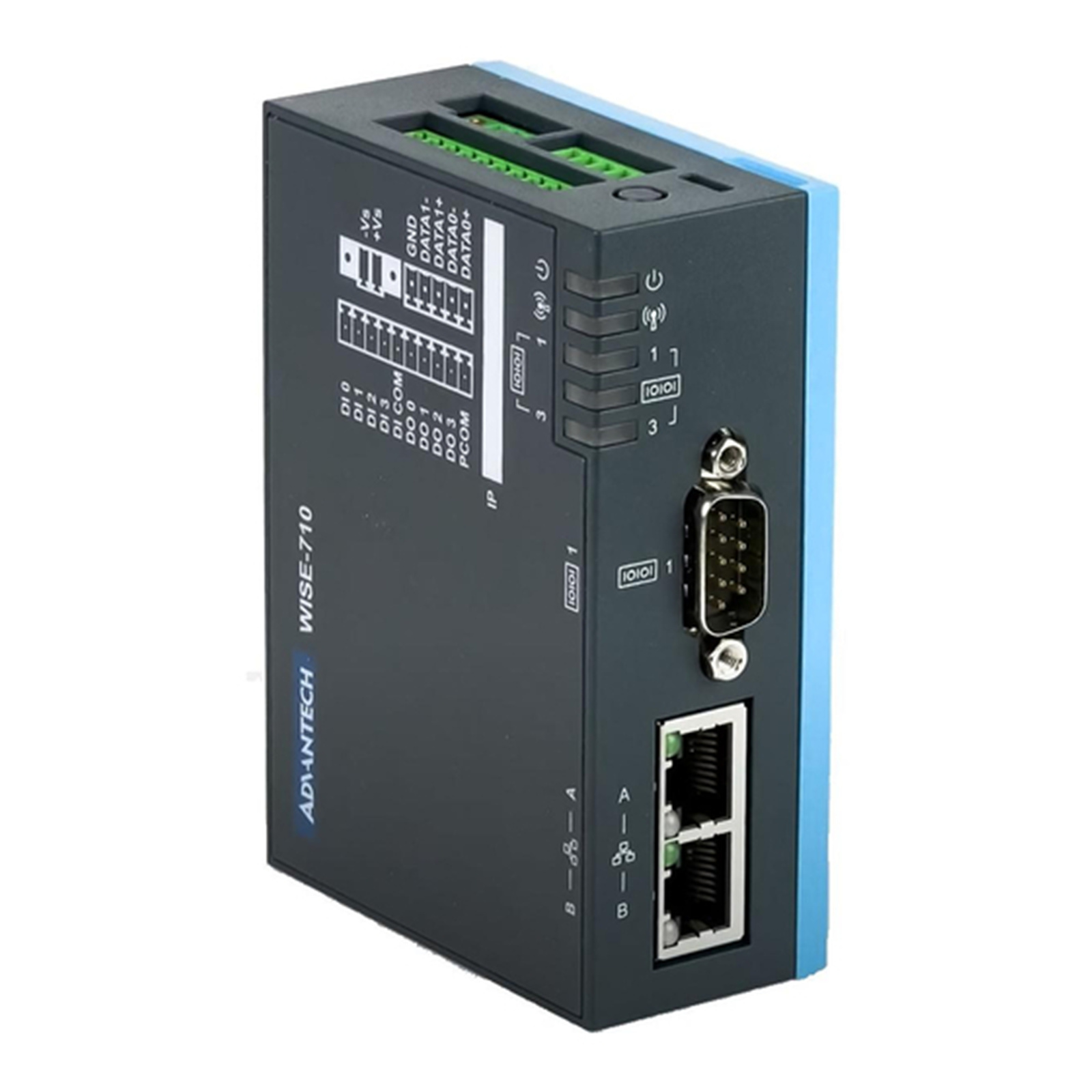

Advantech WISE-710-N600B FreeScale i.MX 6 DualLite Industrial Gateway, 2G RAM, Ubuntu
- Brand: Advantech
- MPN: WISE-710-N600B
- Part #: IPCAVH221231

Product URL: https://www.pbtech.com/product/IPCAVH221231/Advantech-WISE-710-N600B-FreeScale-iMX-6-DualLite
Features
FreeScale i.MX 6 DualLite Industrial Protocol Gateway
- Freescale i.MX 6 Dual Lite A9 1GHz
- Support MQTT, LWM2M client for cloud communication
- Embedded with Microsoft Azure certified security chip
- Support Micro SD card & on-line firmware update
- Support DI wet contact & dry contact by switch
- Support Node ID by software
- Support data logger on Micro SD card
- Operation System: Yocto 2.1/ Ubuntu 16.04
- Operation Temperature: -20~55°C
Specifications
Environment
Operating Temperature
-20~55 °C (-4~131 °F)
Relative Humidity
10~95% RH (non-condensing)
Shock Protection
10 G, half sine
Storage Temperature
-40~75 °C (-40~167 °F)
Vibration Protection
2 Grms, random
Hardware
Certification
CE, FCC
CPU
NXP® ARM® Cortex™-A9 i.MX6 1.0 GHz Dual-core
Hardware Security
Security Chip
Memory
1 GB DDR3
OS Support
Linux
Power Input
24 VDC ±20%
Storage
8 GB eMMC
Expansion
1 x Full-size mPCIe slot
Power Consumption
5 W @ 24 VDC
I/O Interface
Expansion
1 x Full-size mPCIe Slot
LAN Ports
2 x 10/100/1000 Mbps
Power Connector
1 x 2-Pin Terminal Block
Serial Ports
1 x RS-232/485, 1 x RS-485/CANBus, 1 x RS-485
USB Ports
1 x Micro USB
Mechanical
Dimension (W x H x D)
115.58 x 73 x 36 mm
Enclosure
Plastic
Weight (Net)
0.17 kg (0.375 lb)
Mounting
Wall, DIN-rail
