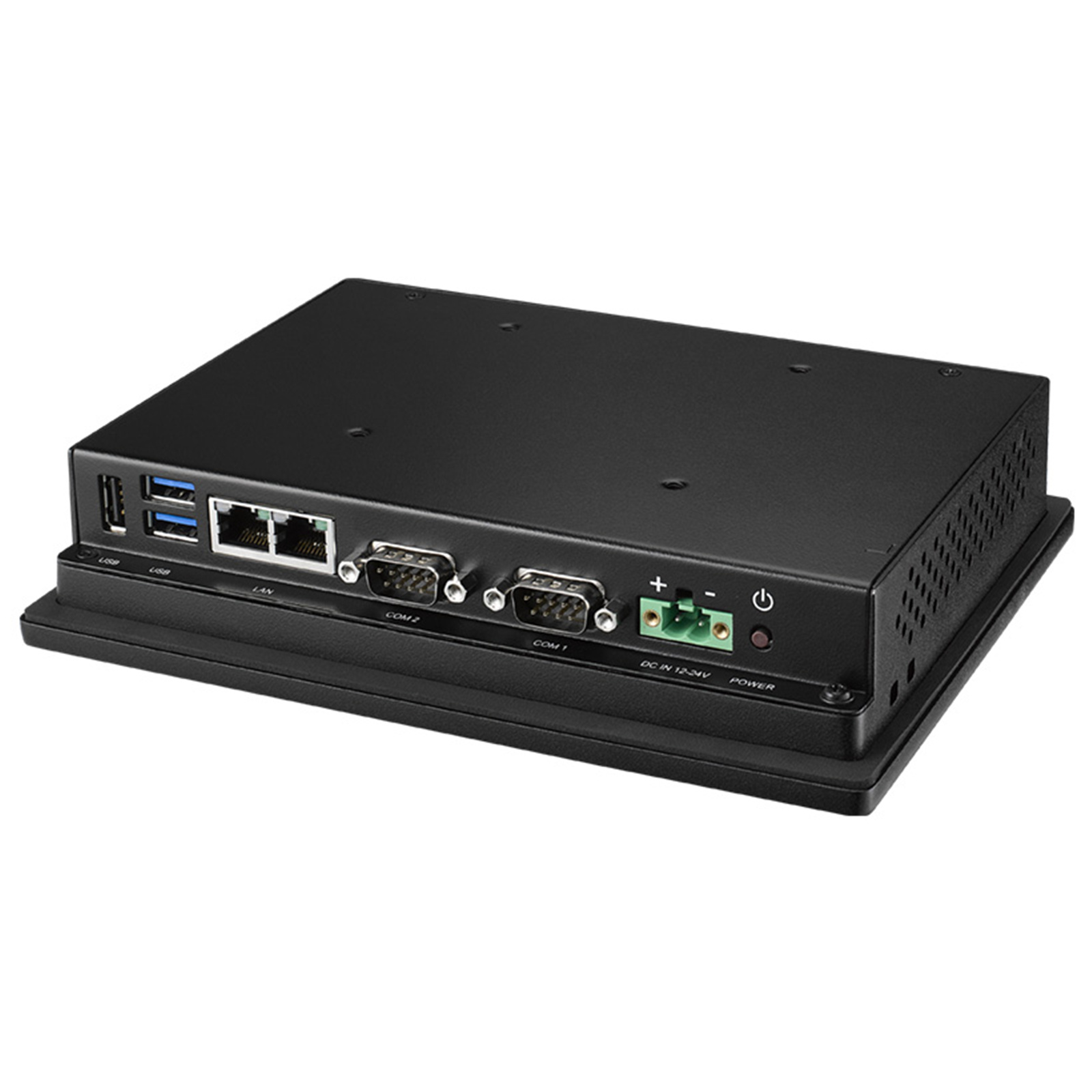

Advantech PPC-306-RN6A 6.5" PPC w/Intel N6210, Resistive

Normally $1,117.65

AUD $ 1,084 .15

$ 1,084 .15

Advantech PPC-306-RN6A 6.5" PPC w/Intel N6210, Resistive

Brand: Advantech
MPN: PPC-306-RN6A
Part #: IPCAVH221257
UPC:

Normally $1,117.65

PB Tech price

AUD $ 1,084 .15

In stock at Supplier

Delivery: Order now and it ships on 10 Oct

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PPC-306-RN6A
Part #: IPCAVH221257
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

6.5" Fanless Panel PC with Intel® Celeron® N6210 Processor

- Industrial-grade 6.5" VGA TFT LCD with LED backlight
- Durable true-flat touchscreen with 5-wire resistive touch control
- Intel® Celeron® N6210 dual-core, 1.2 GHz, processor
- Up to 32 GB DDR4 SDRAM
- Compact, fanless design with IP66-rated front panel
- Supports expansion via M.2 slot
- Supports VESA 75 x 75 mounting holes

Specifications

Environment

Ingress Protection

All-around IP66

Operating Temperature

-10~50 °C (14~122 °F)

Relative Humidity

95% RH (non-condensing)

Storage Temperature

-30~60 °C (-22~140 °F)

Vibration Protection

2 Grms, random

Hardware

Certification

CE, FCC Class B, BSMI, CB, UL, CCC, UKCA, VCCI

CPU

Intel® Celeron® N6210 1.2GHz Dual-Core

Ethernet

Intel® i226-LM

Expansion

1 x M.2 E Key 2230

I/O

1 x RS-232, 1 x RS-232/422/485, 1 x USB 2.0, 2 x USB 3.0

LAN

2 x 10/100/1000/2500 Mbps

Memory

1 x DDR4 SO-DIMM Slot

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux, Android

Power Consumption

30 W @ 19 VDC

Power Input

12~24 VDC

I/O Interface

Power Connector

1 x 2-Pin Terminal Block

Serial Ports

1 x RS-232, 1 x RS-232/422/485

LCD Display

Backlight Life (hrs)

70,000

Display Size

6.5"

Luminance (cd/m2)

800

Max. Resolution

640 x 480

Viewing Angle (H/V°)

178/178

Mechanical

Dimension (W x H x D)

198 x 151 x 41 mm

Enclosure

Die-cast aluminum alloy

Mounting

Stand, Wall, VESA, Panel

Weight (Net)

1.5 kg (3.30 lb)

Touchscreen

Touch Type

5-wire resistive

USB Vision

Connector

1 x USB 2.0 Type A, 2 x USB 3.0 Type A

Manufacturer Part No:

PPC-306-RN6A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221257

Product Model:

PPC-306-RN6A

Warranty: 12 months *
