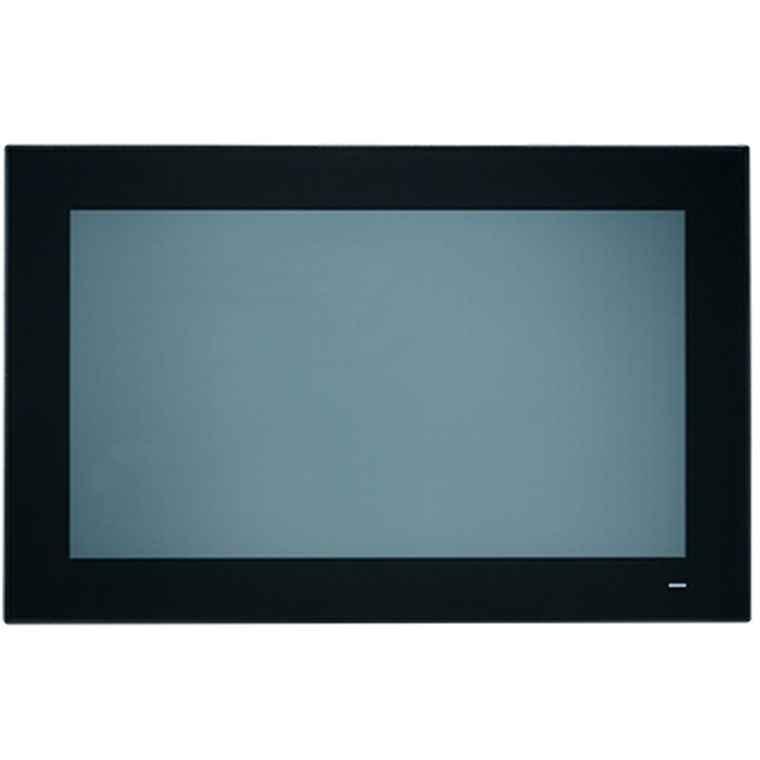

Advantech PPC-3151W-P75A 15.6" FHD PPC w/Intel i5-7300U, P-Cap

Normally $3,954.84

You save $161

AUD $ 3,793 .45

$ 3,793 .45

Advantech PPC-3151W-P75A 15.6" FHD PPC w/Intel i5-7300U, P-Cap

Brand: Advantech
MPN: PPC-3151W-P75A
Part #: IPCAVH221276
UPC:

Normally $3,954.84

You save $161

PB Tech price

AUD $ 3,793 .45

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PPC-3151W-P75A
Part #: IPCAVH221276
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

PPC-3151W is a new generation industrial interactive panel PC with a 15.6" TFT full HD LCD 1920 x 1080 resolution, which features a flat, sleek design to greatly reduce maintenance effort. Pre-installed Intel® Core™ i processor and designed fanless architecture, PPC-3151W provide high performance and reliable system for factory automation or variety of industrial applications. Furthermore, with the provision of multiple I/O, dual Intel® Gigabit ethernet, PCI/PCIe expansion, PPC-3151W ensures easy integration and connectivity.

- 15.6" true-flat Full HD LCD panel with projected capacitive touchscreen, anti-glare coating
- Intel® Core™ i5-7300U processor with fanless system design
- Supports PCIe x4 or PCI expansion
- 1 x isolated RS-422/485 with auto flow
- Wide input power range (9 ~ 32 VDC)
- Dual Gigabit Ethernet with IEEE1588 support
- 3 x Independent displays
- 1 x M.2 B key bay (2242) for storage and support SATA RAID 0/1
- 1 x TPM 2.0 internal support (optional)
- Supports VESA 100 mounting interface

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-3151W/file/PPC-3151W_DS(081023)20230810140500.pdf

Specifications

MPN

PPC-3151W-P75A
15.6" PPC w/Intel i5-7300U, P-CAP

System

CPU

Intel® Core™ i5-7300U dual core

Frequency

2.6 GHz, up to 3.5 GHz with turbo

L2 Cache

3 MB

Memory

1 x SODIMM DDR4 1866/2133 MHz, (max. 16 GB)

Storage

1 x 2.5" SATA bay
1 x M.2 2242 B Key slot for Storage(SATA or NVME interface),support SATA RAID 0/1

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I219LM; Intel I210AT)

I/O

2 x RS-232, 1 x RS-422/485 with 1K VDC isolation
Either 2 x RS-232 or 1 x RS-232 + 1 x GPIO (TTL, 8 pin programmable) on right side (optional module)
4 x USB 3.0
1 x Line-out, 1 x Mic-in
1 x DB15 VGA
1 x Display Port (1.2)
1 x TPM 2.0 internal(optional)

Expansion

1 x Mini PCIe
1 x PCIe x 4 (default); 1 x PCI (in the accessory box)

Watchdog Timer

255 timer levels, set up by software

Speaker

2 x 1W

Physical Characteristics

Dimensions

419.7 x 269 x 59 mm (16.5 x 10.6 x 2.3 in)

Weight

5.4kg (11.9 lb)

OS Support

Microsoft® Win 10 IOT LTSC(64-bit), Linux

Power Consumption

Input Voltage

9 ~ 32 VDC

Power Consumption

65W( Burn-in test 8.1 in Windows 10 64bit)

LCD

Display Type

15.6" TFT LCD (LED backlight)

Max. Resolution

1920 x 1080

Viewing Angle

85 (Left), 85 (Right), 85(Up), 85(Down)

Luminance (cd/m²)

450

Contrast Ratio

800

Backlight Lifetime

50,000 hr (min.)

Touchscreen

Touch Type

Multi-touch projected capacitive

Light Transmission

88 % ± 2 %

Controller

USB interface

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F)

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity

95% @ 40 °C (Non-Condensing)

Shock

Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, Follows IEC 60068-2-64

EMC

CE, FCC Class B, EN 61000-6-2, BSMI, UKCA

Safety

CB, UL, CCC, UKCA

Front Panel Protection

IP66 compliant

Manufacturer Part No:

PPC-3151W-P75A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221276

Product Model:

PPC-3151W-P75A

Warranty: 12 months *
