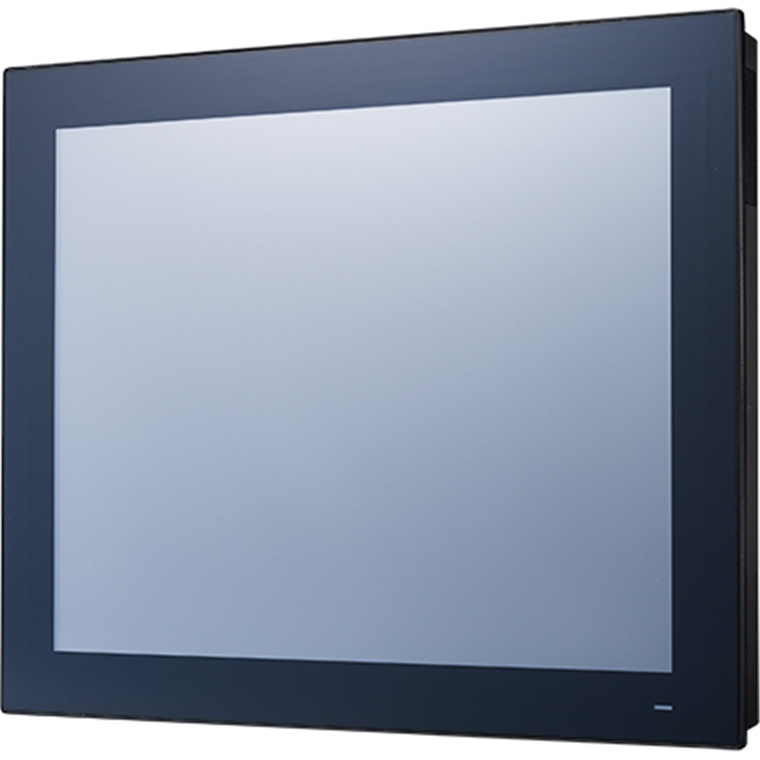

Advantech PPC-3190-RE4CE 19" PPC w/Intel E3845, Res.

Normally $2,561.70

You save $104

AUD $ 2,457 .16

$ 2,457 .16

Advantech PPC-3190-RE4CE 19" PPC w/Intel E3845, Res.

Brand: Advantech
MPN: PPC-3190-RE4CE
Part #: IPCAVH221293
UPC:

Normally $2,561.70

You save $104

PB Tech price

AUD $ 2,457 .16

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: PPC-3190-RE4CE
Part #: IPCAVH221293
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The PPC-3190 is a 19" fanless panel PC equipped with a high-performance Intel® Atom™ E3845 quad-core, 1.91 GHz, processor that supports both a wide operating temperature range (-20 ~ 60 °C) and wide power input range (9 ~ 32 VDC). The provision of multiple I/O, including 4 x COM, 1 x USB 3.0, 1 x isolated RS-422/485, and dual Intel® Gigabit Ethernet, ensures easy integration and connectivity. With the inclusion of 1 x PCI/PCIe expansion slot, the PPC-3190 can be integrated with fieldbus protocols or proprietary cards for increased application potential.

- 19" SXGA TFT LCD with resistive touchscreen
- Intel® Atom™ E3845 quad-core, 1.91 GHz, processor
- Fanless, slim design
- Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
- 1 x PCI/PCIe x1 expansion slot
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Wide range DC support (9 ~ 32 VDC)
- 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
- Optional GPIO (8 channels, TTL level)

For more information: https://advdownload.advantech.com/productfile/PIS/PPC-3190/file/PPC-3190_DS(081023)20230810140312.pdf

Specifications

MPN

PPC-3190-RE4CE
19" PPC w/Intel E3845, Res.

System

CPU

Intel® Atom™ E3845 quad core

Frequency

1.91 GHz

L3 Cache

2 MB

Memory

1 x SODIMM DDR3L 1333 MHz (max. 8 GB)

Storage

1 x 2.5" SATA bay
1 x mSATA bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I210)

I/O

1 x isolated RS-422/485 (terminal block)
4 x RS-232, two external and two by internal pin header (need optional module)
1 x GPIO (8 channels, TTL level) by internal pin header (need optional module)
1 x USB 3.0, 3 x USB 2.0
1 x VGA
1 x DP1.1a
1 x Line-out, 1 x Mic-in

Expansion

1 x Mini PCIe
1 x PCI (default);1 x PCIe x1 (in the accessory box)
Optional: 1 x Internal USB dongle; 2 x RS-232 or 1 x RS-232 + 1 x GPIO

Watchdog Timer

255 timer levels, set up by software

Speaker

2 x 1W

Physical Characteristics

Dimensions

454.0 x 379.8 x 62.1 mm (17.8 x 14.9 x 2.4 in)

Weight

7.0 kg (15.4 lb)

OS Support

Microsoft® Windows 7(32/64-bit), WES7P, WEC7, Win 10 IOT LTSC(64-bit), Linux, Android 6.0

Power Consumption

Input Voltage

9 ~ 32 VDC

Power Consumption

27W (Burn-in test 7.0 in Windows 7 32 bit)

LCD

Display Type

19" TFT LED panel

Max. Resolution

1280 x 1024

Viewing Angle

85 (left), 85 (right),80 (up), 80 (down)

Luminance (cd/m²)

350

Contrast Ratio

1000

Backlight Lifetime

50, 000 hr (min.)

Touchscreen

Touch Type

5-wire analog resistive

Light Transmission

81+/-3%

Controller

USB interface

Environment

Operating Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Storage Temperature

-40 ~ 60 °C (-40 ~ 140 °F)

Relative Humidity

95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD,, follow IEC 60068-2-64

EMC

CE, FCC Class A, BSMI, VCCI, UKCA

Safety

CB, UL, CCC, UKCA

Front Panel Protection

IP66 compliant

Manufacturer Part No:

PPC-3190-RE4CE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221293

Product Model:

PPC-3190-RE4CE

Warranty: 12 months *
