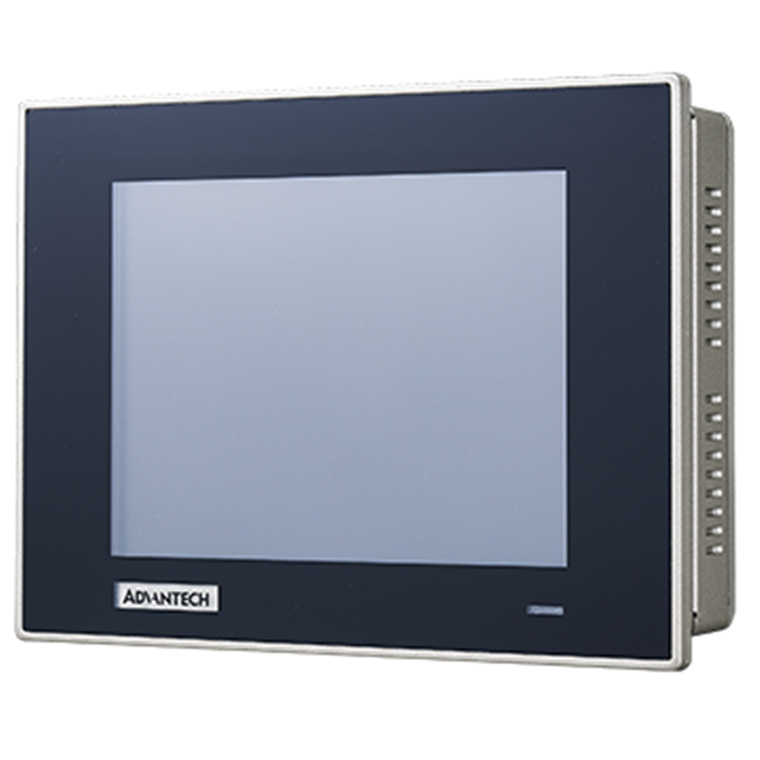

Advantech TPC-651H-E3AE 5.7" Traditional TPC Atom E3827 1.75 GHz, 4G

Normally $1,575.90

AUD $ 1,528 .67

$ 1,528 .67

Advantech TPC-651H-E3AE 5.7" Traditional TPC Atom E3827 1.75 GHz, 4G

Brand: Advantech
MPN: TPC-651H-E3AE
Part #: IPCAVH221386
UPC:

Normally $1,575.90

PB Tech price

AUD $ 1,528 .67

In stock at Supplier

Delivery: Order now and it ships on 13 Oct

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-651H-E3AE
Part #: IPCAVH221386
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- Intel® Atom™ E3827 1.75 GHz Dual-core Processor with 4GB DDR3L SDRAM
- Support wide operating temperatures -20~60°C
- Front LED Indicator to Show Operating Status
- Full-size Mini PCIe Expansion Support
- Supports iDoor technology for diverse applications (optional accessory required)
- Compact Fanless Embedded System with Al Alloy Front Bezel, Chassis Grounding Protection
- AC/DC support (option by Power adapter)
- Supports Advantech SusiAccess Remote Device Management Software & SNMP Subagent

For more information: https://www.mouser.com/datasheet/2/638/TPC-651T20160804093317-1288206.pdf

Specifications

General

MPN

TPC-651H-E3AE

Description

5.7" VGA Panel PC, Intel® Atom™ E3827 1.75 GHz Dual-core Processor, 4GB (Non-flat touch screen IP65 certified traditional TPC front panel)

Environment

Operating Temperature

-20~60 °C (-4~140 °F)

Storage Temperature

-30~70 °C (-22~158 °F)

Vibration Protection

1 Grms, random

Humidity (Operating)

10~95% RH (non-condensing)

Ethernet

Speed

10/100/1,000 Mbps

Hardware

BIOS

AMI UEFI

Certification

CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI

CPU

Intel® Atom™ E3827 1.75GHz Dual-core

Expansion

1 x USB 2.0, 1 x USB 3.0

I/O

1 x USB 2.0, 2 x USB 3.0

LAN

2 x 10/100/1000 Mbps

Memory

1 x SO-DIMM with 4 GB DDR3 1600 MHz

OS Support

Microsoft® Windows 7, Microsoft® Windows 8.1, Microsoft® Windows 10 LTSB, Linux, Android

Power Consumption

19.2 W @ 24 VDC

Power Input

24 VDC ±20%

Storage

1 x CFast slot

Watchdog Timer

15~255 s

I/O Interface

Expansion

1 x Full-size mPCIe Slot

Serial Ports

1 x RS-232, 1 x RS-232/422/485

LCD Display

Backlight Life (hrs)

50,000

Display Size

5.7"

Luminance (cd/m2)

640

Max. Resolution

640 x 480

Viewing Angle (H/V°)

160/140

Mechanical

Dimension (W x H x D)

199 x 152 x 58.9 mm

Enclosure

Die-cast aluminum alloy

Mounting

Wall, Panel

Weight (Net)

1.5 kg (3.30 lb)

Manufacturer Part No:

TPC-651H-E3AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221386

Product Model:

TPC-651H-E3AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
