Features

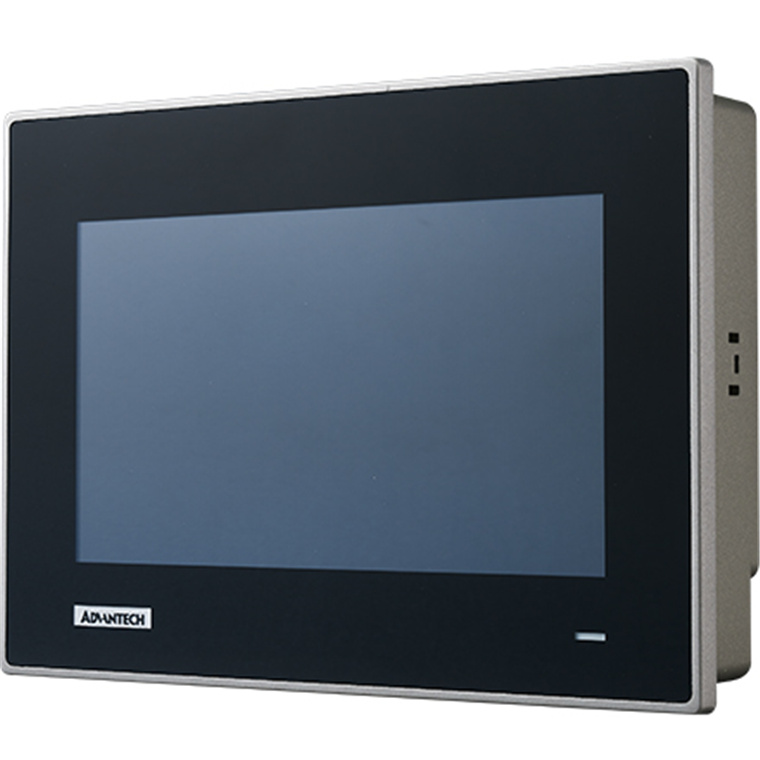

TPC-71W-N21PA is a compact touch panel computer equipped with an NXP® i.MX 6 Cortex™-A9 quad-core processor, 7" TFT LCD display, multi-touch glass sensor, 2 GB of DDR3L RAM, and 8 GB of eMMC storage.

To ensure stable operation in harsh industrial environments, TPC-71W series supports a wide operating temperature range (-20 ~ 60 °C /-4 ~ 140 °F) and VESA mounting and features an IP66-rated front panel that protects against water and dust ingress.

For web-based operations, TPC-71W offers 10/100/1000 Mbps LAN that supports the IEEE 802.3 PoE-PD standard. The inclusion of VNC Tools and browsers enable rapid Web application development and easy configuration. Finally, TPC-71W supports various OS including Linux Yocto, Linux Ubuntu with full QT graphics, and Android to ensure easy deployment for diverse applications.

- NXP® ARM® Cortex™-A9 i.MX6quad-core processor
- 7" 16:9 WSVGA LCD with multi-touch P-CAP control and true-flat IP66-rated front panel
- 2 GB DDR3L RAM and 8 GB eMMC storage onboard
- 10/100/1000 Mbps LAN with IEEE 802.3at PoE-PD support
- 1 MB FRAM backup memory for unexpected power interruptions
- Serial port with 120O termination resistor that supports the CAN 2.0B protocol and offers a programmable bit rate of up to 1 Mb/sec
- Embedded browser and VNC tool for rapid Web App development
- Supports Linux Yocto, Linux Ubuntu and Android
- Optional NFC and mPCIe expansion modules
- Compatible with VESA and panel mounting

For more information: https://advdownload.advantech.com/productfile/PIS/TPC-71W/file/TPC-71W_DS(011623)20230118151825.pdf

Specifications

Environment

Ingress Protection

Front Panel IP66

Operating Temperature

-20~60 °C (-4~140 °F)

Storage Temperature

-30~70 °C (-22~158 °F)

Vibration Protection

2 Grms, random

Ethernet

Speed

10/100/1,000 Mbps

Hardware

Certification

CE, FCC class A;CB/UL, CE, FCC Class A, CCC, BSMI

CPU

NXP® ARM® Cortex™ A9 i.MX6 Quad-Core

I/O

3 x USB 2.0

LAN

1 x 10/100/1000 Mbps

Memory

1 x SO-DIMM with 2 GB DDR3L

OS Support

Linux Ubuntu 16.04

Power Consumption

9 W @ 24 VDC

Power Input

24 VDC ±20%

Storage

8GB eMMC onboard

I/O Interface

Serial Ports

1 x RS-232/485/Canbus

LCD Display Backlight Life (hrs)

50,000

Display Size

Luminance (cd/m2)

400

Max. Resolution

1024 x 600

Viewing Angle (H/V°)

170/170

Mechanical

Dimension (W x H x D)

205 x 146.92 x 46 mm

Enclosure

Front: Die-cast aluminum alloy
Rear: PC +ABS

Mounting

VESA, Panel

Weight (Net)

1.2 kg (2.65 lb)

Touchscreen

Touch Type

PCAP

Manufacturer Part No:

TPC-71W-N21PA

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221392

Product Model:

TPC-71W-N21PA

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
