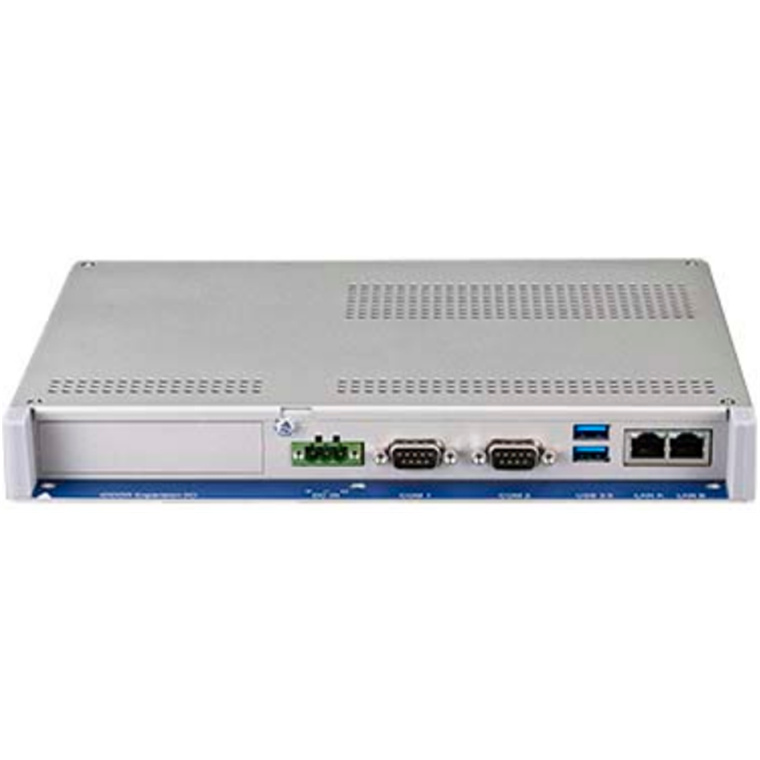

Advantech TPC-B200-E12AE Modular TPC -Computingr Box Modules with Intel Atom E3940 1.6GHz, 4G
Advantech TPC-B200-E12AE Modular TPC -Computingr Box Modules with Intel Atom E3940 1.6GHz, 4G
- Brand: Advantech
- MPN: TPC-B200-E12AE
- Part #: IPCAVH221394
- UPC:
- Brand: Advantech
- MPN: TPC-B200-E12AE
- Part #: IPCAVH221394
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech TPC-B200-E12AE Modular TPC -Computingr Box Modules with Intel Atom E3940 1.6GHz, 4G
- Brand: Advantech
- MPN: TPC-B200-E12AE
- Part #: IPCAVH221394

Product URL: https://www.pbtech.com/product/IPCAVH221394/Advantech-TPC-B200-E12AE-Modular-TPC--Computingr-B
Features
Advantech TPC-B200-E12AE Modular TPC -Computingr Box Modules with Intel Atom E3940 1.6GHz, 4G
- Computing Box powered by Intel Atom® E3940 with 4 GB (up to 8GB) SODIMM SDRAM

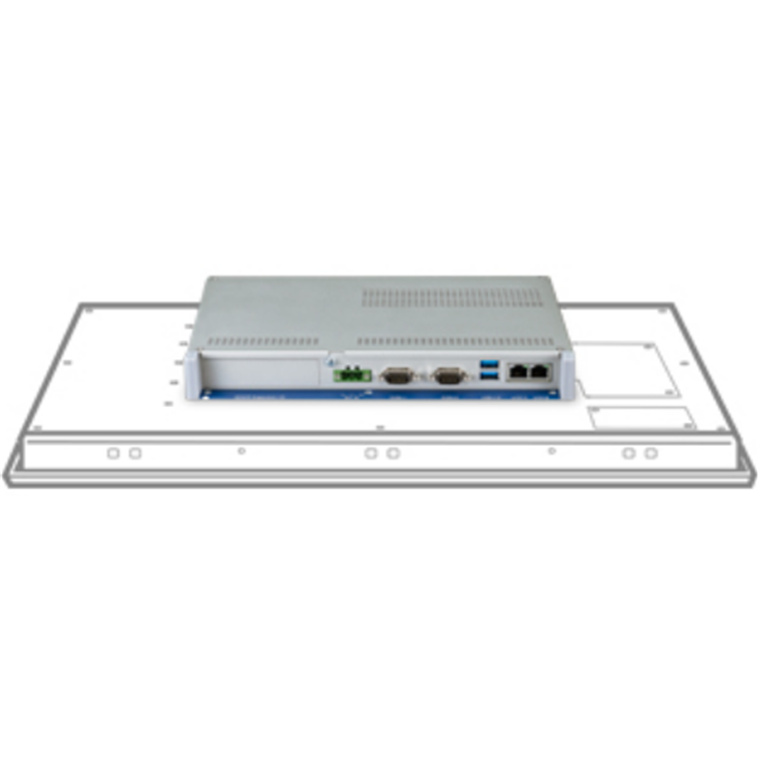

- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 1 x Full-size mini PCIe
- M.2 and SSD expansion
- Supports TPM2.0 hardware security
- Wide Temp. Range -20~60 °C (Atom™ E3940)
- Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology) (iLINK technology)
Specifications
Environment
Operating Temperature
0~50 °C (32~122 °F)
Storage Temperature
-40~60°C (-40~140°F)
Vibration Protection
1 Grms
Hardware
Certification
CB, UL, CE, FCC Class A, CCC, BSMI
CPU
Intel® Atom E3940 1.60GHz Quad-Core
Expansion
1 x Full-size mPCIe slot
Hardware Security
TPM 2.0
I/O
2 x RS-232/422/485, 2 x USB 3.0, 2 x USB 2.0, 1 x Line out, 1 x DP
LAN
2 x 10/100/1000 Mbps
Memory
1 x SO-DIMM with 4 GB DDR4 2133 MHz
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android
Power Input
24 VDC ±20%
Storage
1 x SATA M.2 SSD slot (2242 B-Key), 1 x 2.5" SSD/HDD Bay
Mechanical
Dimension (W x H x D)
269 x 203 x 30 mm
Mounting
Panel, Wall, Stand, VESA
Weight (Net)
1.8 kg
