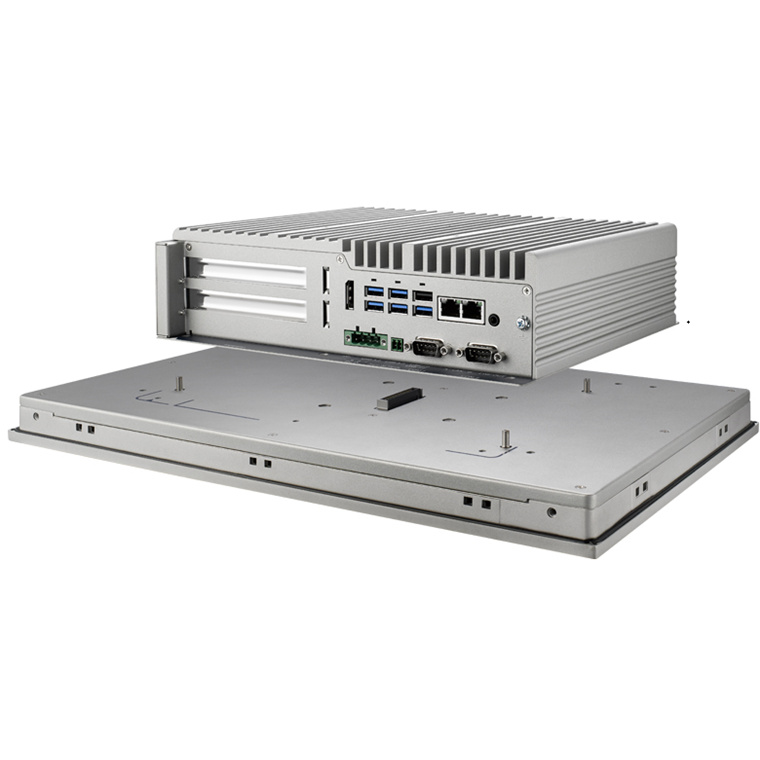

Advantech TPC-B610W-A00A Modular TPC - Computing Box Module with Intel 10th Gen. Core i CPU Socket (LGA1200)
- Brand: Advantech
- MPN: TPC-B610W-A00A
- Part #: IPCAVH221402

Product URL: https://www.pbtech.com/product/IPCAVH221402/Advantech-TPC-B610W-A00A-Modular-TPC---Computing-B
Features
- High Performance Computing Box powered by Intel® 10th Gen. Core™ i CPU Socket (LGA1200) with fanless design
- 6x Panel Modules (IP66) ranging from 15" to 23.8" in selection
- Dual Channel Memory slots (DDR4) support up to 64GB in total
- Comprehensive I/Os, including 6 x USB, 2 x COM, 2 x RJ45...etc
- Supports Expansion via 1 x PCIe x16, 1 x mPCIe, 2 x M.2 (NVMe, SATA, 5G)
- Supports Storage via 2 x 2.5" HDD/SSD (RAID 0/1), 2 x M.2 (2242/2280)
- Supports Fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Supports Diverse system I/O, DIO, PoE...etc. via iDoor technology
- Supports TPM 2.0 hardware security
Specifications
Hardware
CPU
10th Gen. Intel® Core™i Socket CPU (LGA1200)
Memory
2 x SO-DIMM DDR4 2933 MHz Slots, ECC supported
Storage
2 x 2.5" SSD/HDD Bay, 1 x M.2 M key 2280 (NVMe PCIe x4), 1 x M.2 M key 2242 (SATA)
I/O
1 x RS-232/422/485, 1 x RS-232, 5 x USB 3.2, 1 x USB 2.0, 1 x Displayport 1.2, 1 x Line out/Mic in
Power Requirement
24 VDC ±20%
OS Support
Microsoft® Windows 10 2019 LTSC, Linux
Certification
UL, CB, FCC, CE, CCC
Environment
Operating Temperature
-10~50 °C (14~122 °F)
Storage Temperature
-20~70 °C (-4~158 °F)
Mechanical
Dimension (W x H x D)
269 x 224 x 70 mm
