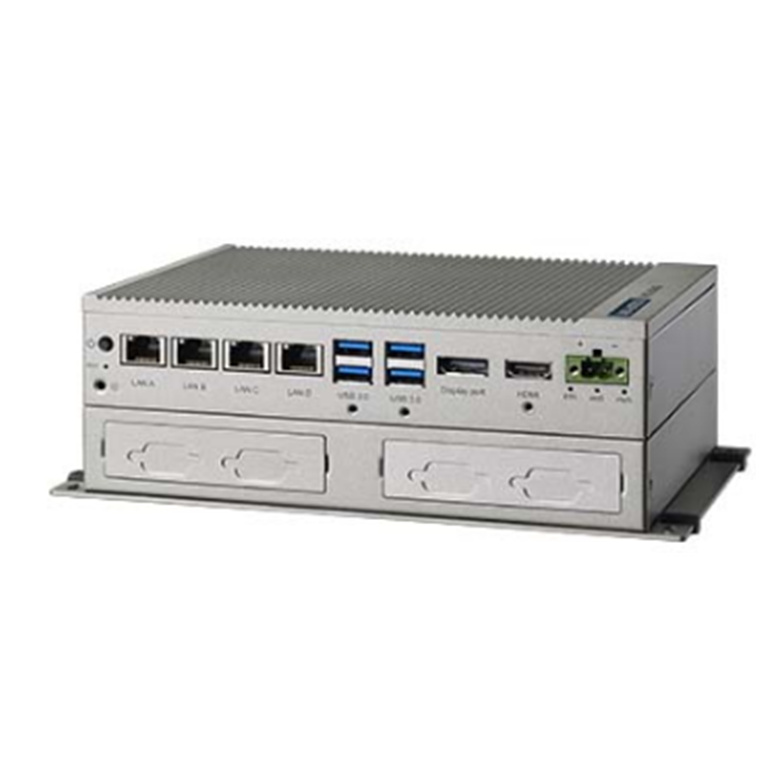

Advantech UNO-2484G-7332BE Modular Compact Embedded Box PC with 7th Gen Intel Core i3-7100U CPU (with 2nd stack)

Normally $2,437.36

You save $99

AUD $ 2,337 .89

$ 2,337 .89

Advantech UNO-2484G-7332BE Modular Compact Embedded Box PC with 7th Gen Intel Core i3-7100U CPU (with 2nd stack)

Brand: Advantech
MPN: UNO-2484G-7332BE
Part #: IPCAVH221448
UPC:

Normally $2,437.36

You save $99

PB Tech price

AUD $ 2,337 .89

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-2484G-7332BE
Part #: IPCAVH221448
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

- Intel® Core™ i7/i5/i3/Celeron Processor with 8GB DDR4 built-in Memory
- 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP, 4 x RS232/422/485
- Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
- Compact Fanless Design
- Ruggedized by zero cable and lockable I/O design
- Supports 30+ iDOOR combination with four main categories
- Diverse system I/O and Isolated Digital I/O by iDoor Technology
- Supports Fieldbus Protocol by iDoor Technology
- 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology with RED Compliance

For more information: https://advdownload.advantech.com/productfile/PIS/UNO-2484G/file/UNO-2484G_DS(060523)20230605143131.pdf

Specifications

MPN

UNO-2484G-7332BE

Environment

Ingress Protection

IP40

Operating Temperature

-20~60 °C (-4~140 °F)

Relative Humidity

10~95% RH (non-condensing)

Shock Protection

50 G, half sine

Storage Temperature

-20~60 °C (-4~140 °F)

Vibration Protection

3 Grms, random

Hardware

Certification

CE, FCC, UL, CCC, BSMI

Memory

1 x SO-DIMM Memory with 8 GB DDR4 3200 MHz

OS Support

Microsoft® Windows 10 LTSC, Linux

Power Input

10~36 VDC

Storage

2 x 2.5" SSD/HDD Bay, 1 x mSATA (shared with mPCIe)

CPU

7th Gen. Intel® Core™ i3-7100U 2.4 GHz Dual-Core

I/O Interface

Audio

Line-Out

Displays

1 x HDMI, 1 x DP

LAN Ports

4 x 10/100/1000 Mbps

Power Connector

1 x 2-Pin Terminal Block

Serial Ports

4 x RS-232/422/485

USB Ports

4 x USB 3.0

Mechanical

Dimension (W x H x D)

200 x 140 x 70 mm

Enclosure

Aluminum housing

Weight (Net)

1.8 kg (3.96 lb)

Manufacturer Part No:

UNO-2484G-7332BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221448

Product Model:

UNO-2484G-7332BE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
