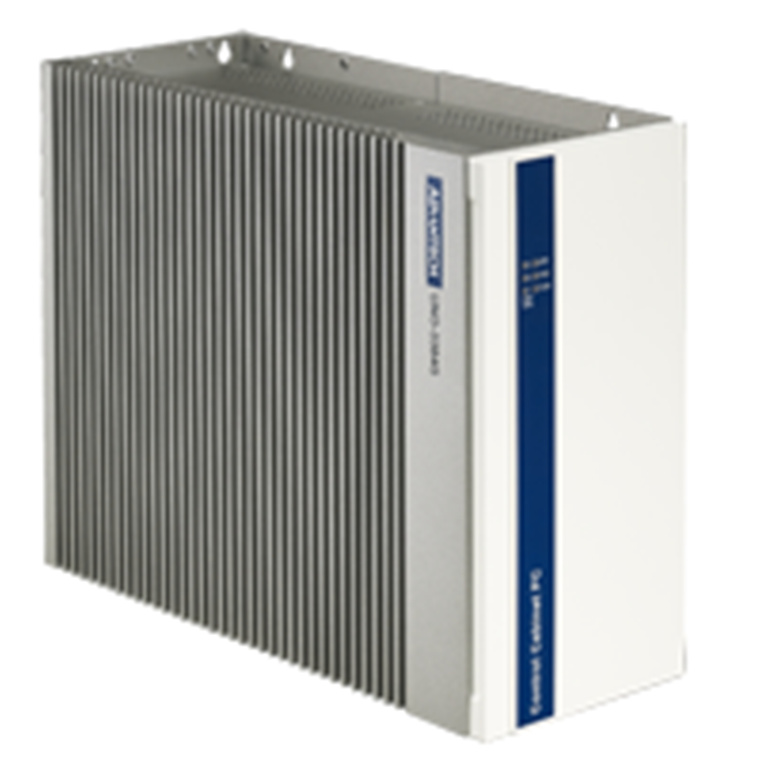

Advantech UNO-3382G-474AE i7-4650U, 8GB RAM

Normally $3,620.60

You save $147

AUD $ 3,472 .84

$ 3,472 .84

Advantech UNO-3382G-474AE i7-4650U, 8GB RAM

Brand: Advantech
MPN: UNO-3382G-474AE
Part #: IPCAVH221464
UPC:

Normally $3,620.60

You save $147

PB Tech price

AUD $ 3,472 .84

In stock at Supplier

Delivery: Order now and it ships on 24 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-3382G-474AE
Part #: IPCAVH221464
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech's UNO-3300 series offer an open and universal automation solution. The newest UNO-3300 series of the Control Cabinet PC have attractive and flexible extension capabilities such as 2 x USB 2.0 ports and 2 x USB 3.0 ports, 1 x HDMI, 1 x DP, 1 x Cfast, 1 x COM ports, 2 x LANS, 2 x mPCIe and 2 x PCI/PCIe. It's a reliable industrial control machine certified by industrial automation standard IEC-61010.

- 4th generation Intel® Core™ i7/Celeron® processors with 8GB DDR3L memory
- Hot-swappable HDD/SSD support for RAID 0/1
- Protection Technology of optional UPS is compatible with UNO-3300 series
- which enhances the quality of input power and secure the data safety
- Supports Fieldbus protocol by iDoor technology 3G/GPS/GPRS/Wi-Fi communication by iDoor technology
- Supports MRAM by iDoor technology
- LAN redundancy (teaming)

For more information: https://advdownload.advantech.com.cn/productfile/PIS/UNO-3382G/Product%20-%20Datasheet/UNO-3382G20180910102446.pdf

Specifications

MPN

UNO-3382G-474AE
Intel® Core™ i7-4650U 1.7GHz, 8GB, 2 x LANs, 2 x Full-size mPCIe, 1 x HDMI, 1 x DP

General

Certification

CE, FCC, UL

Dimensions (W x D x H)

65.2 x 254 x 207 mm (2.5" x 10" x 8.15")

Form Factor

Regular Size

Enclosure

Aluminum Housing

Mounting

Book mounting

Weight (Net)

3.1kg

Power Requirements

24 VDC ± 20%

Power Consumption

45W (Typical), 65W

OS Support

WIN7/8, WES7, WES10, Advantech Linux

System Hardware

BIOS

AMI UEFI 128Mbit Flash BIOS

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Processor

Intel® Core™ i7-4650U 1.7GHz Haswell, 4MB L2

System Chip

Integrated Intel 8 Series Chipset

Memory

Built-in 8GB DDR3L 1333 MHz

I/O Interfaces

Serial Ports

1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps

LAN Ports

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet

USB Ports

4 x USB Ports (2 x USB 2.0, 2 x USB 3.0 compliant )

Displays

1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp
1 x DP, supports 3200 x 2000 @ 60Hz 24bpp

Power Connector

1 x 3 Pin, Terminal Block

Environment

Operating Temperature

0 ~ 55°C(32 ~ 131°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)

Storage Temperature

- 40 ~ 85°C ( -40 ~ 185°F)

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing

Shock Protection

Operating, IEC 60068-2-27, 20G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)

Manufacturer Part No:

UNO-3382G-474AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221464

Product Model:

UNO-3382G-474AE

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
