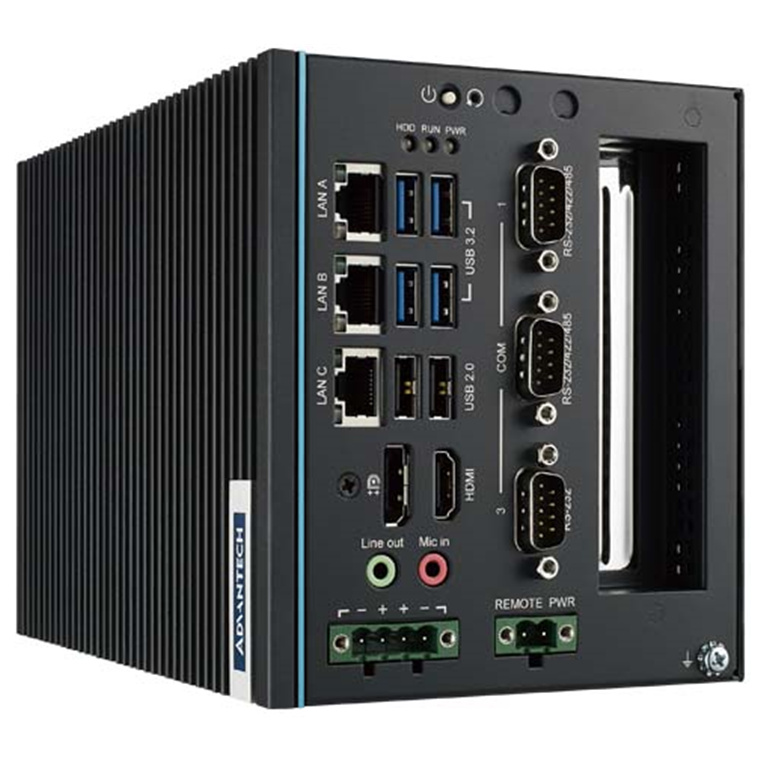

Advantech UNO-348-A941A Expandable Embedded Box IPC with 10th Gen Intel Core I9-10900E CPU, 1 PCIe

Normally $4,081.43

You save $166

AUD $ 3,914 .87

$ 3,914 .87

Advantech UNO-348-A941A Expandable Embedded Box IPC with 10th Gen Intel Core I9-10900E CPU, 1 PCIe

Brand: Advantech
MPN: UNO-348-A941A
Part #: IPCAVH221467
UPC:

Normally $4,081.43

You save $166

PB Tech price

AUD $ 3,914 .87

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-348-A941A
Part #: IPCAVH221467
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech UNO-348-A941A Expandable Embedded Box IPC with 10th Gen Intel Core I9-10900E CPU

- Intel® 10th Gen socket type processor with DDR4 memory
- Scalable CPU, RAM selection
- Compact, rugged and fanless design for harsh embedded environment
- Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe & 2 x 2.5" SSD
- Optional iDoor expansion
- Remote out-of-band (OOB) power management with Advantech's iBMC technology
- Built-in TPM2.0 for hardware-based security

For more information: https://advdownload.advantech.com/productfile/PIS/UNO-348/file/UNO-348_DS(041124)20240411105424.pdf

Specifications

Environment

Ingress Protection

IP20

Operating Temperature

-20~50 °C (-4~122 °F)

Relative Humidity

95% RH (non-condensing)

Shock Protection

50 G, half sine

Storage Temperature

-40~85 °C (-40~185 °F)

Vibration Protection

4 Grms, random

Hardware

Certification

CB, UL, CE, FCC Class A, CCC, BSMI

CPU

Intel® Core™ i9-10900TE 1.8GHz 10-Core

Graphics Engine

Intel® HD Graphics

Hardware Security

TPM 2.0

Memory

2 x SO-DIMM with 16 GB DDR4 2933 MHz

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux

Power Input

10~36 VDC

Storage

2 x 2.5" SSD/HDD Bay

I/O Interface

Audio

Line-In (Pin Header), Line-Out (Pin Header), Microphone (Pin Header)

Displays

1 x DP, 1 x HDMI

Expansion

1 x Full-size mPCIe Slot, 1 x M.2 B key, 1 x PCIe x16

LAN Ports

3 x 10/100/1000 Mbps

Power Connector

1 x 4-Pin Terminal Block

Serial Ports

1 x RS-232, 2 x RS-232/422/485

USB Ports

4 x USB 3.2, 2 x USB 2.0

Mechanical

Dimension (W x H x D)

200 x 140 x 120 mm

Enclosure

Aluminum housing

Weight (Net)

3.5 kg (7.72 Ib)

Manufacturer Part No:

UNO-348-A941A

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221467

Product Model:

UNO-348-A941A

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
