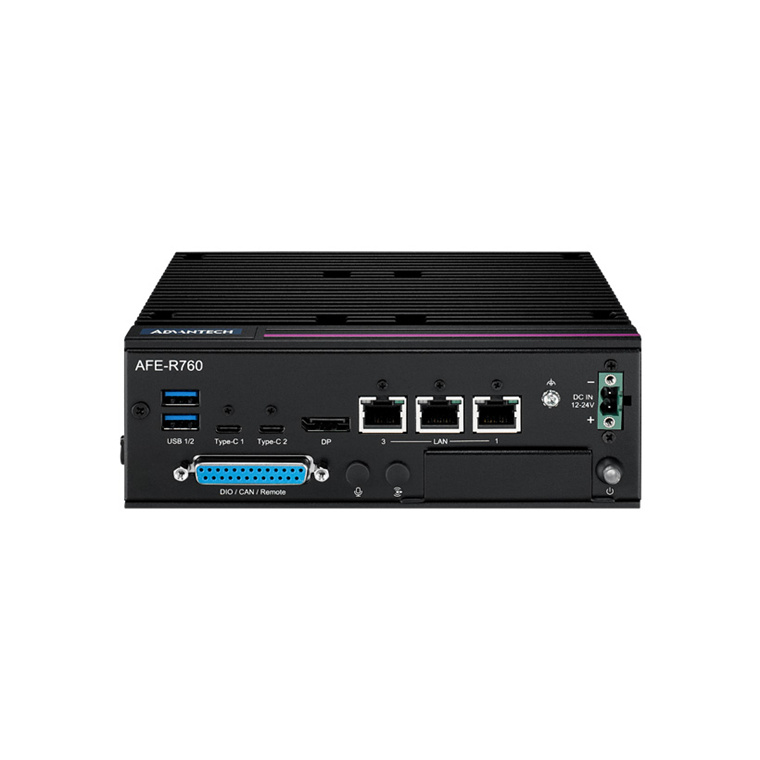

Advantech AFE-R760-Q5A1 Intel Core Ultra 5, 125H Processors AMR control system Fanless

Advantech AFE-R760 Intel® Core™ Ultra 7/5 Processors AMR control system

- Intel® Core™ Ultra 7/5 Processors, up to 16 Cores, TDP 28W
- Dual Channel DDR5-5600, up to 96GB
- Support 4x GMSL through 120pin B2B connector
- Dedicate I/Os for AMR: 3x 2.5GbE, 2x USB-C, 2x USB-A, 4x COM, 2x CAN-FD, 8-bit GPIO
- ESD protection : Contact 8KV, Air 15KV
- Supports Ubuntu22.04/ 24.04 LTS, Windows 10/ 11 LTSC, Advantech Robotic Suite
- Integrated CPU, GPU, and NPU provide up to 32 TOPS AI performance

Advanced Processing Power

The Advantech AFE-R760 AMR control system stands out due to its robust computing capabilities, powered by the latest Intel® Core™ Ultra 7/5 processors. With support for up to 16 cores and a thermal design power (TDP) of just 28 watts, the system delivers superb multitasking and processing efficiency while maintaining low power consumption. This makes it ideal for use in sophisticated autonomous mobile robot (AMR) applications where both performance and energy efficiency are crucial.

High-Speed Memory and Expansion

To complement its powerful processors, the AFE-R760 supports dual-channel DDR5-5600 memory configurations, allowing for memory expansion up to 96GB. This high-speed, high-capacity memory ensures that the control system can handle large data sets and run memory-intensive applications smoothly. The advanced memory architecture is particularly beneficial for real-time robotic computing tasks and complex AI inference operations.

Rich and Purpose-Built Connectivity

Connectivity options on the AFE-R760 have been thoughtfully designed for AMR deployment. The system offers four GMSL inputs via a 120-pin B2B connector, providing high-speed data transfer for multiple sensors or camera modules. Essential I/Os include three 2.5GbE ports, two USB-C and two USB-A ports, four serial COM ports, two CAN-FD interfaces, and an 8-bit GPIO. Such versatility ensures seamless integration with diverse robotic peripherals and communication protocols, supporting a broad range of application needs.

Enhanced Protection and Robustness

For reliability in demanding industrial environments, the AFE-R760 features advanced electrostatic discharge (ESD) protection, withstanding 8KV for direct contact and up to 15KV for air discharge. This robust protection guards the system's vital components against static electricity, reducing the risk of hardware failures or data interruptions during operation, which is critical in mission-critical robotic applications where downtime is not an option.

Integrated AI Acceleration and Broad OS Support

Designed for flexibility, the system offers compatibility with Ubuntu 22.04/24.04 LTS, Windows 10/11 LTSC, and the Advantech Robotic Suite. The integration of CPU, GPU, and NPU yields AI computing capabilities up to 32 TOPS (Tera Operations Per Second), accelerating a variety of machine learning and computer vision workloads. This all-in-one AI acceleration ensures that the AFE-R760 can power the next generation of intelligent, autonomous robotic solutions.
