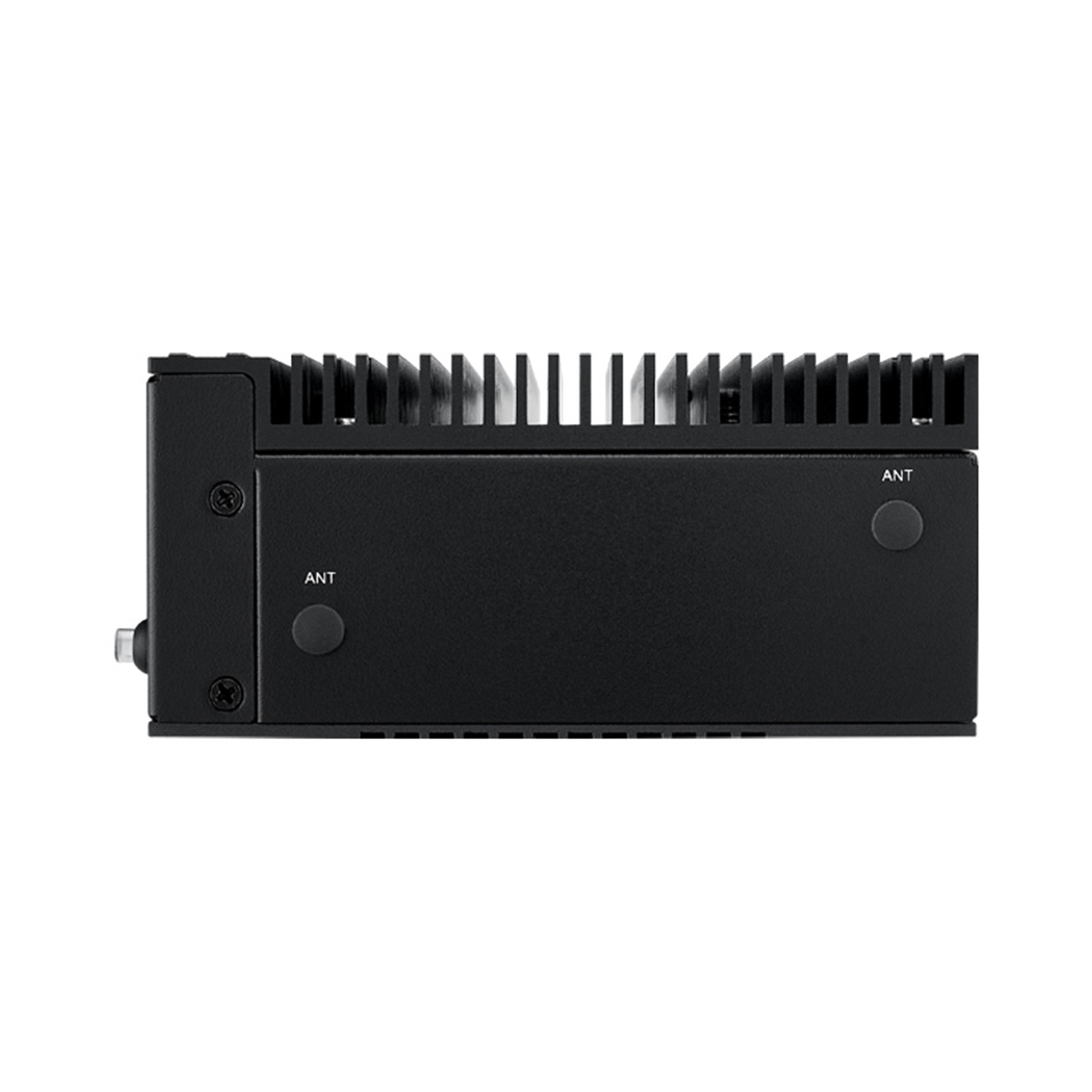

Advantech AFE-R760-Q8A1 Intel Core Ultra 7, 155H Processors AMR control system Fanless

Normally $2,321.47
Normally $2,321.47
You save $76
You save $76
AUD $ 2,245 .36
$ 2,245 .36
$2,245.36  +GST
$2,245.36

Advantech AFE-R760-Q8A1 Intel Core Ultra 7, 155H Processors AMR control system Fanless

  • Brand: Advantech
  • MPN: AFE-R760-Q8A1
  • Part #: IPCAVH500028
  • UPC:
Normally $2,321.47
Normally $2,321.47
You save $76
You save $76
PB Tech price
AUD $ 2,245 .36 $ 2,245 .36


Delivery: Order now and it ships on 14 Oct
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$2,245.36  +GST
$2,245.36

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the Advantech AFE-R760-Q8A1 Intel Core Ultra 7, 155H...
Advantech AFE-R760-Q8A1 Intel Core Ultra 7, 155H Processors AMR control system Fanless
Total:
AUD $ 5,220 .23
AUD $ 5,220 .23

Features

Intel® Core™ Ultra 7/5 Processors AMR control system

- Intel® Core™ Ultra 7/5 Processors, up to 16 Cores, TDP 28W

- Dual Channel DDR5-5600, up to 96GB

- Support 4x GMSL through 120pin B2B connector

- Dedicate I/Os for AMR: 3x 2.5GbE, 2x USB-C, 2x USB-A, 4x COM, 2x CAN-FD, 8-bit GPIO

- ESD protection : Contact 8KV, Air 15KV

- Supports Ubuntu22.04/ 24.04 LTS, Windows 10/ 11 LTSC, Advantech Robotic Suite

- Integrated CPU, GPU, and NPU provide up to 32 TOPS AI performance

Specifications

Processor System

Processor

Core Ultra 7, 155H

Max. Frequency

4.8GHz

Base Frequency (P-Core)

1.4GHz

Core/ Thread

16, 6P+8E+2LE/ 22

LLC

24MB

TDP

28W

Chipset

On-package Intel 600 Series Chipset

BIOS

AMI EFI 256Mbit

Memory

Technology

DDR5 5600 MHz

Max. Capacity

96 GB

Socket

2 x 262-pin SO-DIMM

Graphics

Chipset

Intel® ARC® Graphics

3D/ HW Acceleration

DX12.2, OGL4.6, OCL3.0, HW Encode/ Decode: H.265 (HEVC), H.264, AV1, VP9

DP

1 x DP1.4a, up to 4096 x 2160x 36bpp @60Hz

Ethernet

LAN1/2/3

10/100/1000/2500 Mbps Intel i226-LM GbE, support Wake On Lan

Audio

Interface

Realtek ALC888s, Line-out/Mic-in (optional by 1700035708-01)

Others

Watch dog Timer

65536 level, 0~65535 sec

TPM

Discrete TPM2.0, fTPM* support by request

I/O Interface

Serial Port

4 x RS-232/422/485, max. 1Mbps

USB Type-C

2 x USB3.2 Gen2x1 10Gbps, support DisplayPort1.4 Alt. Mode

USB Type-A

2 x USB3.2 Gen2x1 10Gbps

GPIO

8-bit general purpose input output I/O

CANBus

2 x CAN-FD

FAN

1x FAN connector (12V0.35A)

Expansions

M.2 E Key

1 x E-Key 2230 (PCIex2, USB2.0)

M.2 B-Key

1 x B-Key 3052 (PCIe x2/ SATA, USB2.0) w' Nano SIM

M.2 M-Key

2 x M-Key 2280 (PCIex4 Gen.4 NVMe)

GMSL

Up to 4x FAKRA, expanded through GMSL interfaced card, MIOe-GMSL. (Optional)

Software Support

Microsoft Windows

Windows 10/ 11

Linux

Ubuntu 22.04/ 24.04

ROS2

Ready by Advantech Robotic Suite

Power Requirements

Power Input Voltage

12-24VDC

Power Source

DC Battery or AC to DC 150W adapter (Optional)

Power Consumption (CPU/Memory Only)

Typical (OS idle mode)

9.12W

Max. (Full loading)

45.12W

Mechanical

Construction

Aluminum housing

Mounting

DIN-Rail mounting, Wall mounting (Optional)

Dimensions (W x H x D)

175 x 60 x 130 mm

Weight

1.6 kg (3.5 lb)

Environment

Operating Temperature

with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow

Storage Temperature

-40 ~ 85° C

Relative Humidity

95% @ 40° C (non-condensing)

Vibration During Operation

3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

Shock During Operation

30 G, IEC 60068-2-27, half sine, 11 ms duration

EMC

Heavy industrial certificates, CE/FCC Class B, UKCA, CCC, BSMI

Safety

CB, UL, UKCA, CCC, BSMI

Manufacturer Part No:
AFE-R760-Q8A1
Brand:
Product Type:
Intel Core Ultra 7, 155H Processors AMR control system
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH500028
Product Model:
AFE-R760-Q8A1
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
