Advantech MIOE-GMSL-4PA1 GMSL Input Module Card, for AFE-R360 series

Advantech MIOE-GMSL-4PA1 GMSL Input Module Card, for AFE-R360 series

  • Brand: Advantech
  • MPN: MIOE-GMSL-4PA1
  • Part #: IPCAVH500030
  • UPC:

Features

GMSL Input Module Card, for AFE-R360 series

- GMSL Input Module Card
- Support 12~24V DC input
- Support 4x GMSL concurrently
- GMSL connector support POC: 12V, 500mA/1000mA
- Compatible with AFE-R360
- Support Ubuntu 22.04

Specifications

Interface

Interface

Samtec 120pin B2B connector

Power

DC input

12~24V

Connector

2pin power connector (external power input required)

Camera

Interface

GMSL

Connector

4x FAKRA

Camera support qty and MIPI lane allocation

2 x4 lanes (CN1, CN3 only), or 4 x2 lanes (CN1 to CN4)

Control pin

MIPI-CSI, I2C, GPIO

Output Voltage

12V (support POC)

POC

CN1, CN3: 1000mA
CN2, CN4: 500mA

Cable support length

up to 15M

Environment

Operating Temperature

0 ~ 60 °C (32 ~ 140 °F)

Operating Humidity

40°C @ 95% relative humidity, non-condensing

Storage

60 °C @ 95%relative humidity, non-condensing

Vibration Resistance

3.5 Grms

Certification

CE, FCC Class B

Dimensions

55*95mm

Net weight

60g

Compatibility

Board

AFE-R360 series

camera

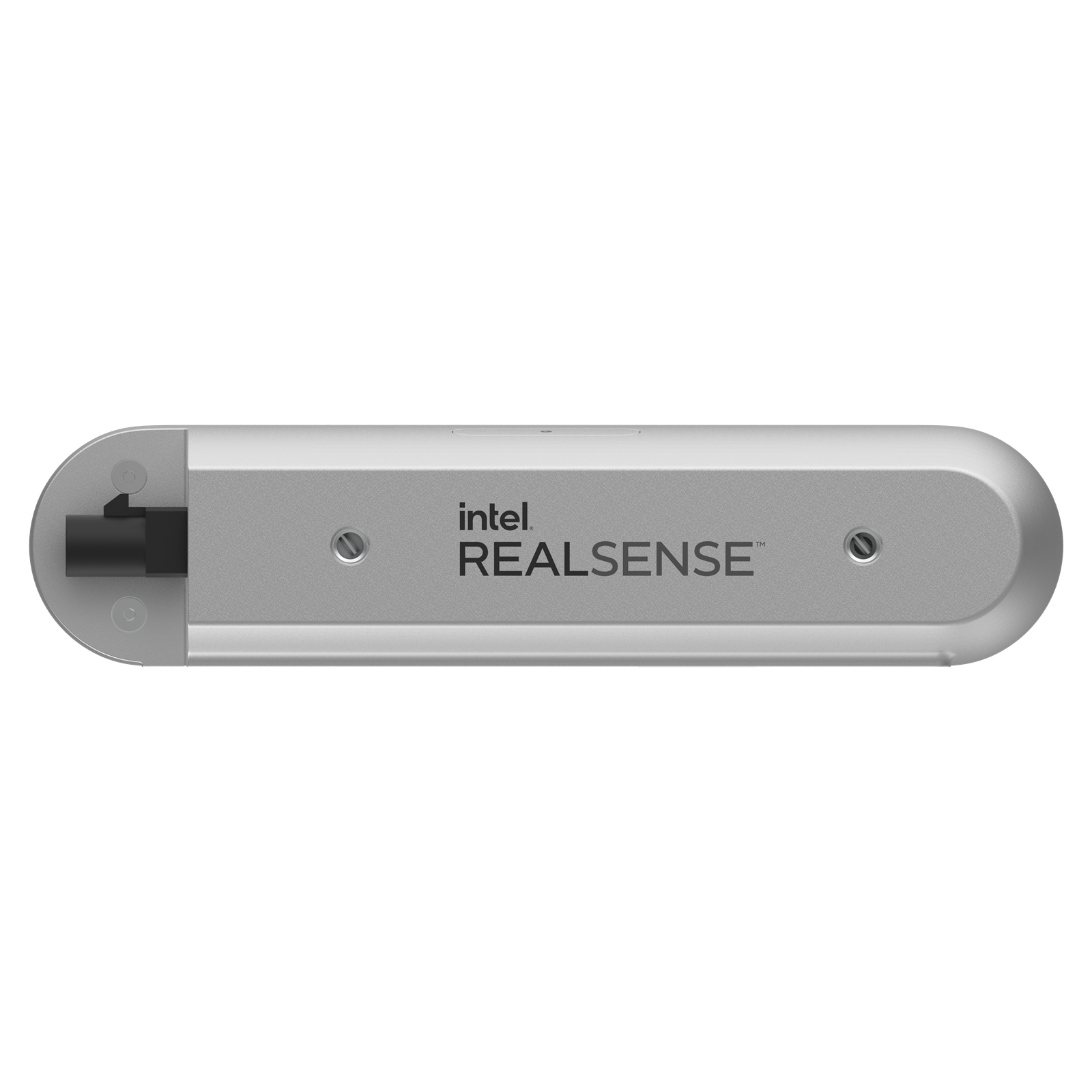

Intel RealSense D457, oToBrite oToCAM222, D3 Discovery

OS Ubuntu

22.04

Manufacturer Part No:
MIOE-GMSL-4PA1
Brand:
