Features
100% flat fronted touch and 21.5" Industrial grade monitors.
Ultra thin profile, smooth rounded corners and rugged glass fronted for a totally contemporary outlook.
- 21.5" LCD wide screen panel with LED backlight delivers a long service life
- Supports wide operating temperatures (-30 ~ 80°C)
- True flat surface - contemporary Proflat design
- Wide viewing angles support portrait and landscape modes
- Thin profile enclosure eliminates need for additional casing or metalwork
- Multi-touch PCAP touchscreen with USB interface
- Optional anti-reflective surface treatment empowers sunlight readability
- Increase panel brightness to 1400 nits using an optional enhancement
- IP67 for water and dust protection
Specifications
Backlight
LED
Resolution
1920 x1080
Brightness
1400 cd/m2
Viewing Angle
89°/89°/89°/89°
Max Colors
16.7M
Contrast Ratio
1000:1
Response Time
25 ms
Backlight Lifetime
50,000 hours
Touchscreen Type
Projected Capacitive
Surface Hardness
7H
Transparency
85%
Cover Glass Thickness
1.8 mm
Operating Temperature
0 ~ 60 °C
Storage Temperature
-20 ~ 60 °C
Humidity
90% RH @ 40 °C

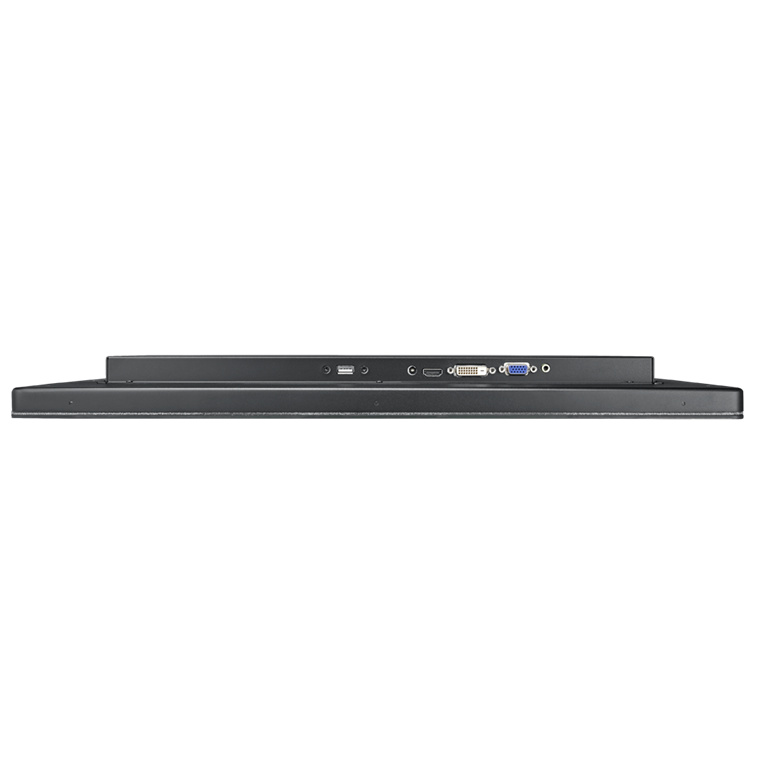

Input/Output
1 x HDMI, 1 x 12 VDC Jack,
1 x USB
OSD
Keys: Menu/Sel, Right/UP, eft/Down, Exit, Monitor Power n/off
Key Functions: Brightness, Contrast, Screen Settings, Color emp, Language
Power Consumption
14W
Power Input
12VDC
Mounting
VESA/Panel mount
IP Rating
Front IP67
Weight
5.62kg
